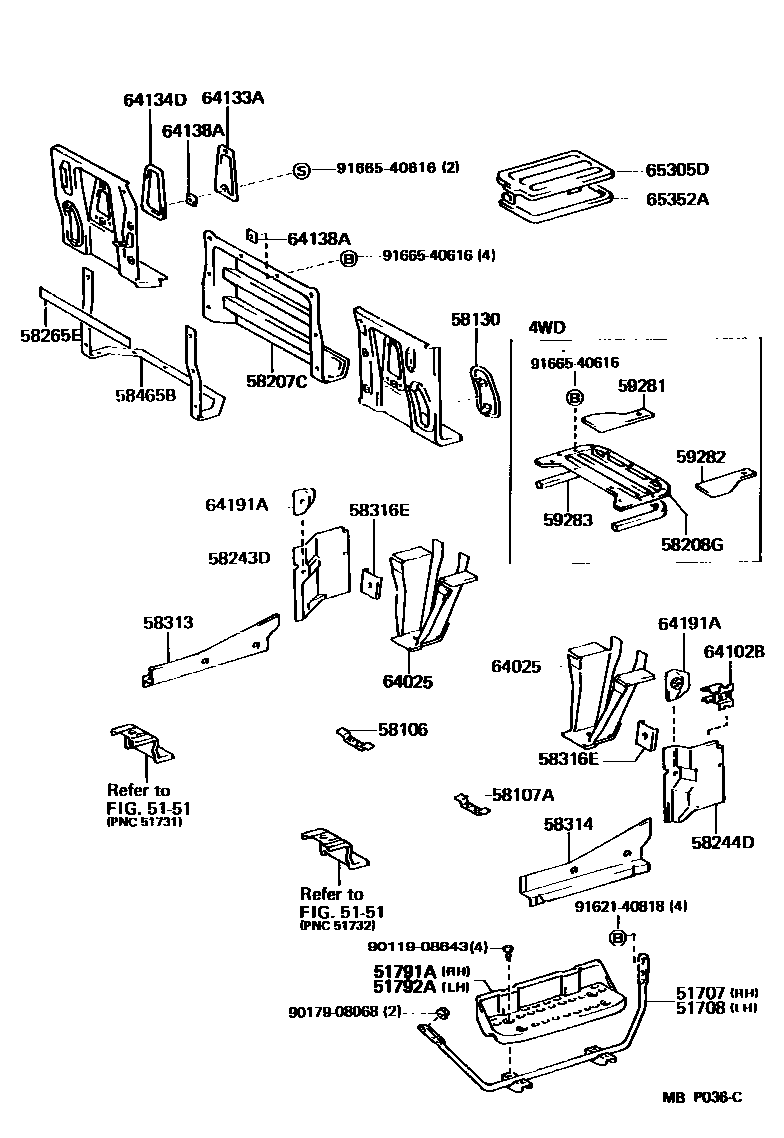

REAR FLOOR PANEL & REAR FLOOR MEMBER
5151
51707STEP SUB-ASSY, RH
51708STEP SUB-ASSY, LH
51791APANEL, STEP, REAR RH
sub51791-37030
58106BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2
58107ABRACKET SUB-ASSY, CLAMP SET, NO.1
58130COVER ASSY, RESERVE TANK SERVICE HOLE
58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE
sub58207-37020
58208GCOVER SUB-ASSY, TRANSMISSION, REAR
58243DPANEL, FLOOR SIDE, REAR RH
58244DPANEL, FLOOR SIDE, REAR LH
58265EPACKING, TRANSMISSION COVER, C
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58316ERETAINER, REAR SEAT SET
58465BPACKING, TRANSMISSION SERVICE HOLE COVER
59281PACKING, TRANSMISSION REAR COVER
59282PACKING, TRANSMISSION REAR COVER, NO.2
59283PACKING, TRANSMISSION REAR COVER, NO.3
64025BRACKET SUB-ASSY, REAR MOUNTING, RH
64102BBRACKET SUB-ASSY, JACK HANDLE SUPPORT
64133ACOVER, HEADER PANEL
64134DPACKING, HEADER PANEL COVER
64138ASEAL, HEADER PANEL COVER
64191ABRACKET, REAR SEAT BELT ANCHORAGE, RH
65305DCOVER SUB-ASSY, BATTERY HOLE
65352APACKING, BATTERY HOLE COVER, NO.2
9011908643
main90119-08643
9017908068
main90179-08068
9162140818
main91621-40818
9166540616
main91665-40616
32 parts on this diagram · 1 diagram in section
