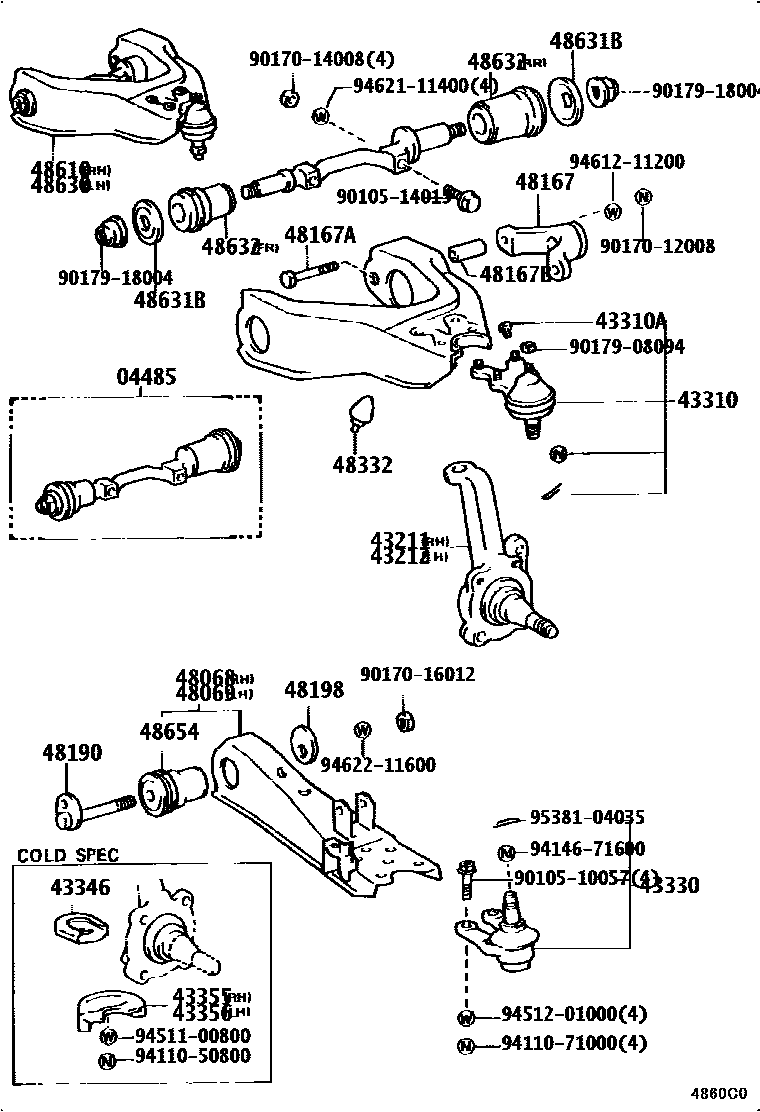

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-26040iLH80,YH81198708-198908

sub04485-26050

main04485-26050iLH80,90,YH81198908-199505

sub04485-26120

43211KNUCKLE, STEERING, RH

main43201-26010iLH85,95198710-199310

sub43201-26030

main43201-26030iLH85,95199310-199505

sub43201-26031

sub90304-76005

main43211-26051iLH80,90,YH81198708-199505

43212KNUCKLE, STEERING, LH

main43202-26010iLH85,95198710-199310

sub43202-26030

main43202-26030iLH85,95199310-199505

sub43202-26031

sub90304-76005

main43212-26021iLH80,90,YH81198708-199505

43310JOINT ASSY, UPPER BALL

main43350-29056iLH80,YH81198708-199210

main43350-29065iLH90199109-199306

sub43350-29095

main43350-29095iLH80,90,YH81199306-199505

main43360-29076iLH80,YH81198708-199210

sub43350-29056

43310APLUG (FOR BALL JOINT)

main90345-06014iLH8#,9#,YH81198708-199505

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29155iLH80,90,YH81198708-199505

sub43330-29535

main43330-29215iLH85,95198808-199505

main43330-39195iLH85198710-198808

main43340-39175iLH85198710-198808

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-26010iLH80,90,YH81198708-199505

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-26010iLH80,90,YH81198708-199505

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-26010iLH80,90,YH81198708-199505

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26022iLH80,90,YH81198708-199505

main48068-26040iLH85198710-199109

sub48068-26080

main48068-26080iLH85,95199109-199505

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26022iLH80,90,YH81198708-199505

main48069-26040iLH85198710-199109

sub48069-26080

main48069-26080iLH85,95199109-199505

48167ARM, TORQUE

main48106-26011iLH80,YH81198708-199210

main48106-26030iLH85,95198710-199505

sub48106-25010

main48106-26050iLH80,90,YH81199109-199505

48167ABOLT(FOR TORQUE ARM SETTING)

main90101-12131iLH80,YH81198708-199210

main90105-12141iLH85198710-198906

main90105-12151iLH85198710-198906

*12-1.25PX54.5-16.5

main90105-12183iLH90199109-199505

main90105-12200iLH8#,9#,YH81198906-199505

main90105-12201iLH85,95198906-199505

*12-1.25PX54.5-16.5

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-20010iLH80,YH81198708-199210

48190CAM ASSY, CAMBER ADJUST

main48190-26010iLH80,90,YH81198708-199201

sub48190-26020

main48190-26020iLH80,90,YH81199201-199505

48198CAM, CAMBER ADJUST, NO.2

main48198-26010iLH80,90,YH81198708-199505

48332BUMPER, FRONT SPRING, NO.2

main48332-26020iLH85,95198710-199505

main48332-35020iLH90..TW;LH90..WT;LH80,YH81;LH90..T2..ST..CBU198708-199505

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-26031iLH80,YH81198708-199210

main48610-29015iLH90199109-199306

sub48610-29085

main48610-29085iLH80,90,YH81199306-199505

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-26031iLH80,YH81198708-199210

main48630-29015iLH90199109-199306

sub48630-29075

main48630-29075iLH80,90,YH81199306-199505

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02065iLH80,YH81198708-198908

main90948-02066iLH80,YH81198708-198908

sub90948-02142

main90948-02142iLH80,90,YH81198908-199505

main90948-02143iLH80,90,YH81198908-199505

48632BUSH, UPPER ARM

main48632-26010iLH80,90,YH81198708-199505

main48635-26010iLH80,90,YH81198708-199505

48654BUSH, LOWER ARM

main48061-26010iLH80,90,YH81198708-199505

main48061-26020iLH85,95198710-199505

9010510057

main90105-10057

9010514015

main90105-14015

9017012008

main90170-12008

9017014008

main90170-14008

9017016012

main90170-16012

9017908094

main90179-08094

9017918004

main90179-18004

9411050800

main94110-50800

9411071000

main94110-71000

9414671600

main94146-71600

9451100800

main94511-00800

9451201000

main94512-01000

9461211200

main94612-11200

9462111400

main94621-11400

9462211600

main94622-11600

9538104035

main95381-04035

38 parts on this diagram · 3 diagrams in section
