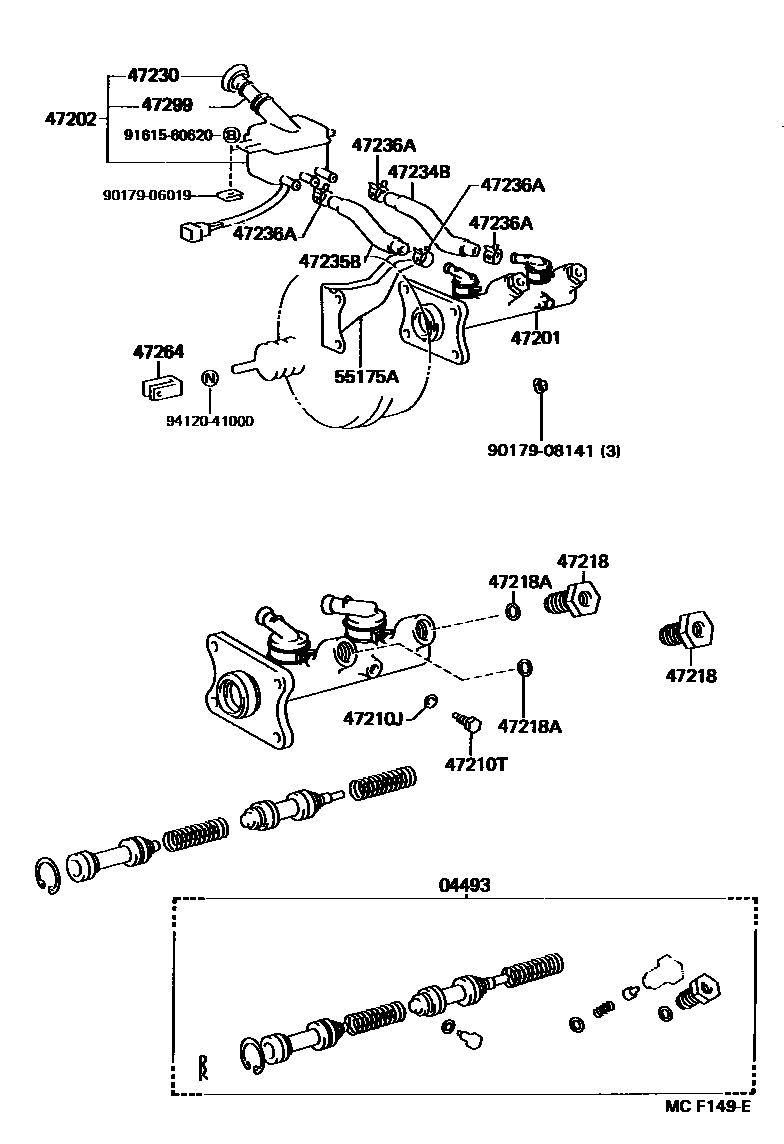

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-26140iLH85,95198710-199505

main04493-26150iLH80,90,YH81198708-199505

sub04493-26131

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-26470iLH80,90,YH81198708-199505

main47201-26480iLH85,95198710-199505

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-36040iLH8#,9#,YH81..5F198708-199505

main47220-36050iLH80,90..4FC198708-199505

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iLH8#,9#,YH81198708-199505

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iLH8#,9#,YH81198708-199505

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-26050iLH80,90,YH81198708-199505

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-05014iLH80,90,YH81198708-199505

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iLH8#,9#,YH81198708-199505

47234BTUBE, RESERVOIR, NO.1

main47234-26100iLH80,90,YH81198708-199505

main47234-26180iLH85,95198710-199505

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-26100iLH80,90,YH81198708-199505

main47235-26170iLH85,95198710-199505

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16002iLH8#,9#,YH81198708-199505

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLH8#,9#,YH81198708-199505

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-26020iLH8#,9#,YH81198708-199505

55175ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-95A03iLH80,90,YH81198708-199505

main55175-95A04iLH85,95198710-199505

9017906019

main90179-06019

9017908141

main90179-08141

9161560620

main91615-60620

9412041000

main94120-41000

18 parts on this diagram · 2 diagrams in section
