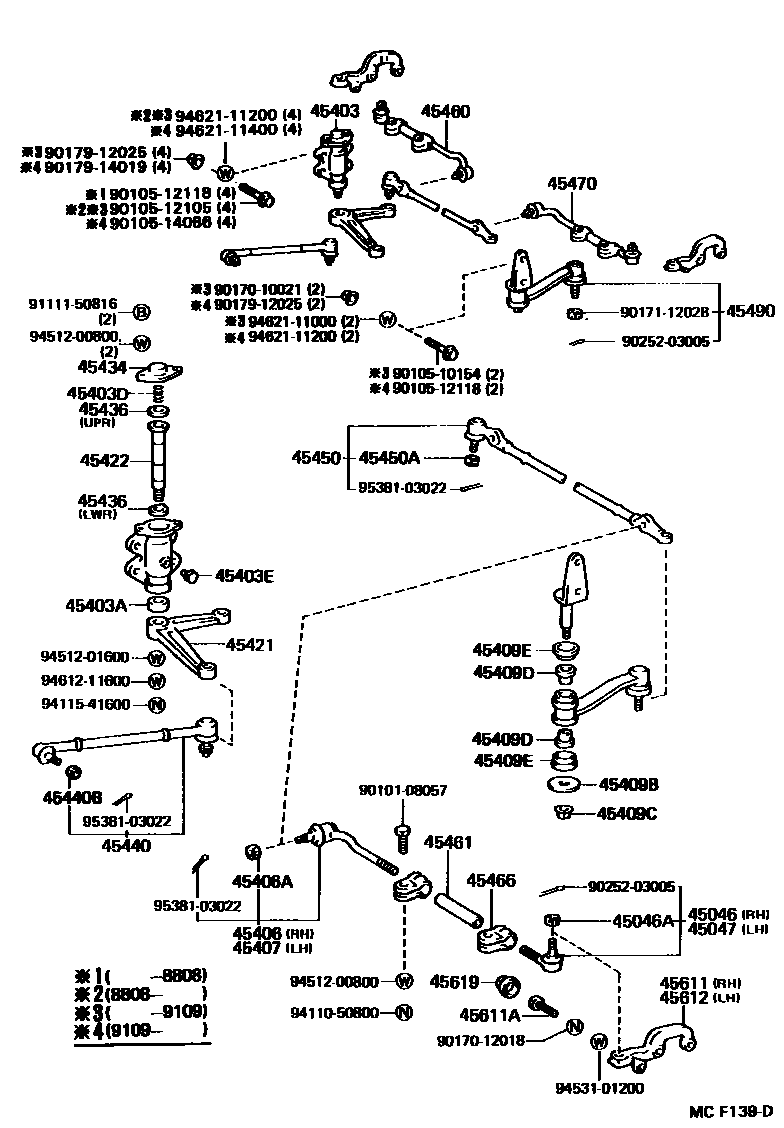

FRONT STEERING GEAR & LINK
45046ANUT, CASTLE(FOR TIE ROD END)
45403BRACKET SUB-ASSY, CENTER ARM
45403ASEAL, OIL(FOR CENTER ARM BRACKET)
45403DSPRING, COMPRESSION(FOR CENTER ARM SHAFT SET)
45403EPLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT)
45406ROD SUB-ASSY, TIE, RH
sub45406-29175
45406ANUT, CASTLE(FOR TIE ROD)
45407ROD SUB-ASSY, TIE, LH
sub45406-29175
45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)
45409CNUT(FOR IDLER ARM SUPPORT)
45409DBUSH(FOR IDLER ARM)
45409ESEAL, DUST(FOR IDLER ARM SUPPORT)
45421ARM, STEERING CENTER
sub45421-26061
45422SHAFT, CENTER ARM
45434CAP, CENTER ARM BRACKET
45436SEAT, CENTER ARM SHAFT
45440LINK ASSY, STEERING DRAG
sub45440-29255
45440BNUT, CASTLE(FOR STEERING DRAG LINK)
45450ROD ASSY, STEERING RELAY
sub45450-29185
45450ANUT, CASTLE(FOR RELAY ROD)
45461ROD, STEERING TIE
45466CLAMP, TIE ROD END
45490ARM ASSY, STEERING IDLER
45611ARM, STEERING KNUCKLE, RH
45611ABOLT, KNUCKLE STOPPER
45612ARM, STEERING KNUCKLE, LH
45619COVER, KNUCKLE STOPPER
9010108057
main90101-08057
9010510154
main90105-10154
9010512105
main90105-12105
9010512118
main90105-12118
9010514086
main90105-14086
9017010021
main90170-10021
9017012018
main90170-12018
9017112028
main90171-12028
9017912025
main90179-12025
9017914019
main90179-14019
9025203005
main90252-03005
9111150816
main91111-50816
9411050800
main94110-50800
9411541600
main94115-41600
9451200800
main94512-00800
9451201600
main94512-01600
9453101200
main94531-01200
9461211600
main94612-11600
9462111000
main94621-11000
9462111200
main94621-11200
9462111400
main94621-11400
9538103022
main95381-03022
53 parts on this diagram · 11 diagrams in section
