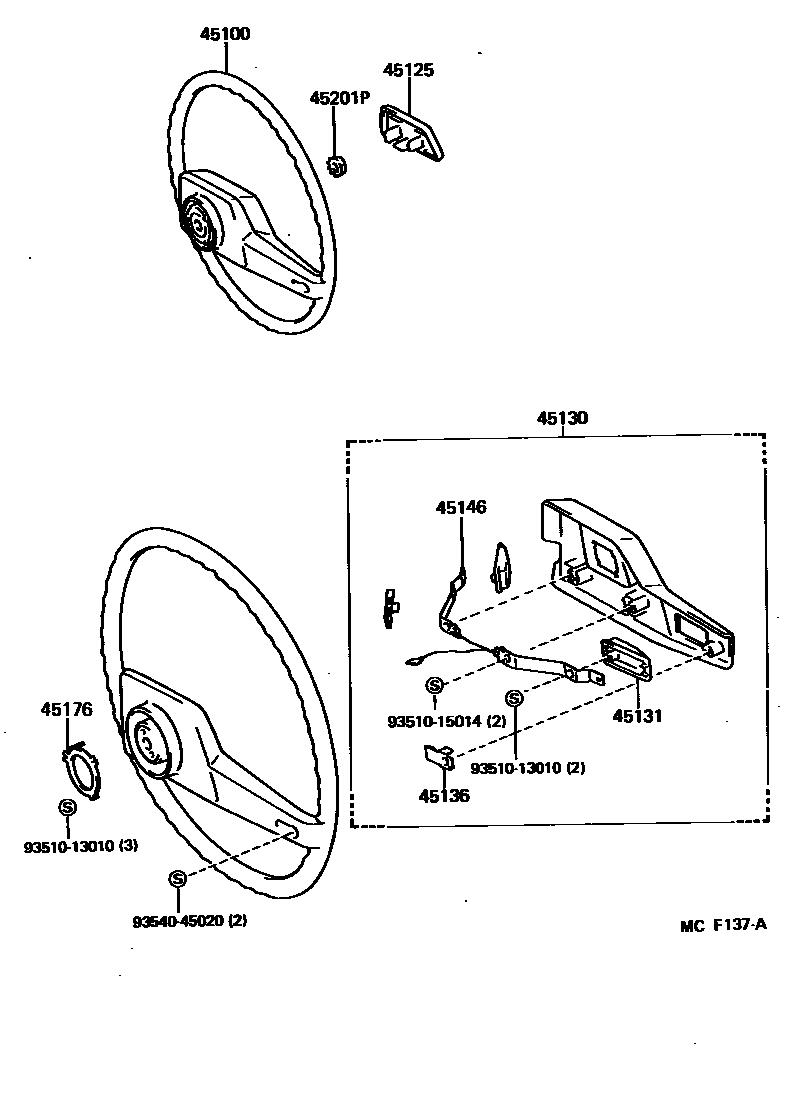

STEERING WHEEL

0001 1 0002 1��(���-�������) & URETHANE 0003 1URETHANE 0004 1URETHANE

45100WHEEL ASSY, STEERING

main45100-22150-24iLH85..T2,T3198710-199109

sub45100-22151

sub45100-22150

main45100-22151-B0iLH80,90,YH81199109-199505

sub45100-22151

main45100-26090-24iLH80,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

sub45100-26090

main45100-26121-04iLH8#,YH81198708-199109

sub45100-26121

main45100-60130-B0iLH80,90,YH81199109-199505

sub45100-60130

45125MARK, STEERING WHEEL PAD

main45125-26060-04iLH8#,YH81198708-199109

BLUE,TRIM8#

sub45125-26060

main45125-26090-04iLH85..T2,T3198710-199109

sub45125-26090

main45125-26090-B0iLH9#;LH80..TB..WT199109-199505

sub45125-26090

45130BUTTON ASSY, HORN

main45130-26070iLH80..TB..ST;LH80,YH81..T1..IV;LH80,YH81..TS..(T2,T3)199109-199505

main45130-26070-14iLH80,YH81..T2,T3;LH80,YH81..T1..IV198708-199109

sub45130-26070

main45130-26110-04iLH8#,YH81198708-199109

BLUE,TRIM8#

sub45130-26110

main45130-26120-04iLH85..T2,T3198710-199109

sub45130-26120

main45130-26120-B0iLH80,90,YH81199109-199505

sub45130-26120

main45130-26230-B0iLH80,90,YH81199109-199505

GRAY,TRIM1#

45131BUTTON, HORN, NO.1

main45131-26050iLH8#,YH81198708-199109

45136PLATE, HORN BUTTON CONTACT

main45136-26020iLH8#,YH81198708-199109

45146SPRING, HORN BUTTON CONTACT

main45146-26030iLH8#,YH81198708-199109

45176RING, HORN CONTACT

main45176-14050iLH8#,9#,YH81199109-199505

main45176-14050iLH85198710-199109

main45176-20030iLH80..4FC198708-199109

main45176-30070iLH8#,YH81198708-199109

45201PNUT, STEERING WHEEL SET

main90179-12071iLH8#,9#,YH81199306-199505

main90179-12086iLH8#,9#,YH81198708-199306

9351013010

main93510-13010

9351015014

main93510-15014

9354045020

main93540-45020

11 parts on this diagram · 4 diagrams in section
