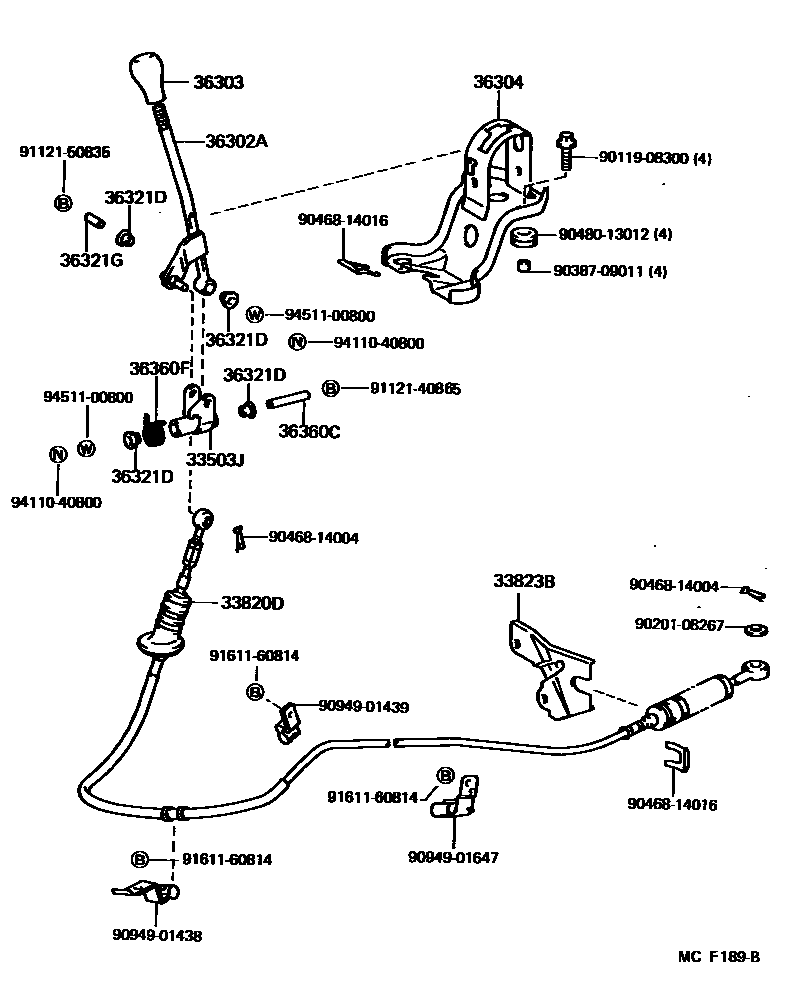

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33503JLEVER SUB-ASSY, SHIFT, NO.2

main33503-26120iLH85,95198710-199505

33820DCABLE ASSY, TRANSFER CONTROL

main33820-26020iLH85,95198710-199505

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-26020iLH85,95198710-199505

36302ALEVER SUB-ASSY, TRANSFER SHIFT, NO.1

main36302-26030iLH85,95198710-199505

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-26020iLH85198710-199109

BLACK,TRIM2#

main36303-26020-B0iLH85,95199109-199505

GRAY,TRIM1#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-26030iLH85,95198710-199505

36321DBUSH (FOR TRANSFER SHIFT LEVER)

main90385-11006×4iLH85,95198710-199505

36321GCOLLER (FOR TRANSFER SHIFT LEVER)

main90387-08069iLH85,95198710-199505

36360CCOLLAR (FOR TRANSFER SHIFT LEVER RETAINER)

main90387-08090iLH85,95198710-199505

36360FSPRING, TORSION (FOR TRANSFER SHIFT LEVER RETAINER)

main90508-40006iLH85,95198710-199505

9011908300

main90119-08300

9020108267

main90201-08267

9038709011

main90387-09011

9046814004

main90468-14004

9046814016

main90468-14016

9048013012

main90480-13012

9094901438

main90949-01438

9094901439

main90949-01439

9094901647

main90949-01647

9112140865

main91121-40865

9112150835

main91121-50835

9161160814

main91611-60814

9411040800

main94110-40800

9451100800

main94511-00800

24 parts on this diagram · 2 diagrams in section
