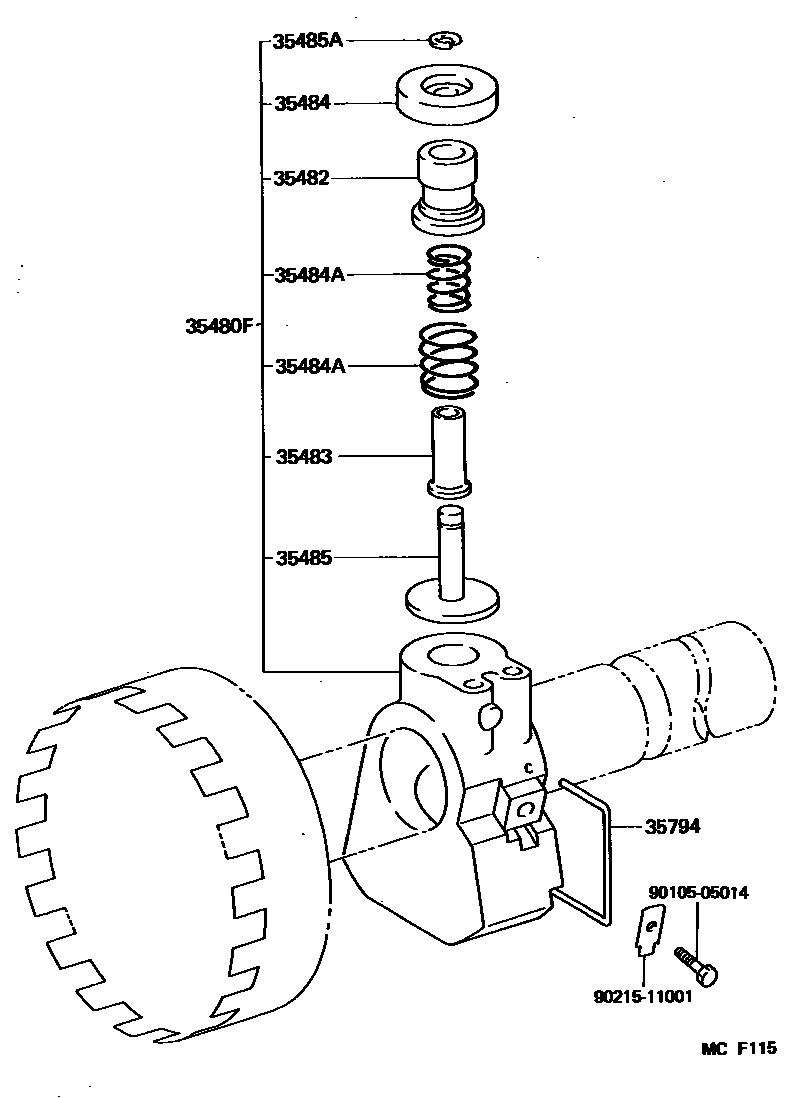

REAR OIL PUMP & GOVERNOR (ATM)

35480FBODY ASSY, GOVERNOR

main35480-26030iLH80,90..4FC198708-199505

35482VALVE, GOVERNOR

main35482-28010iLH80,90..4FC198708-199505

35483WEIGHT, GOVERNOR, INNER

main35483-14010iLH80,90..4FC198708-199505

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iLH80,90..4FC198708-199505

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-07033iLH80,90..4FC198708-199505

main90501-08059iLH80,90..4FC198708-199505

35485SHAFT, GOVERNOR VALVE

main35485-14010iLH80,90..4FC198708-199505

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iLH80,90..4FC198708-199505

35794RING, GOVERNOR RETAINING

main35794-22010iLH80,90..4FC198708-199505

9010505014

main90105-05014

9021511001

main90215-11001

10 parts on this diagram · 1 diagram in section
