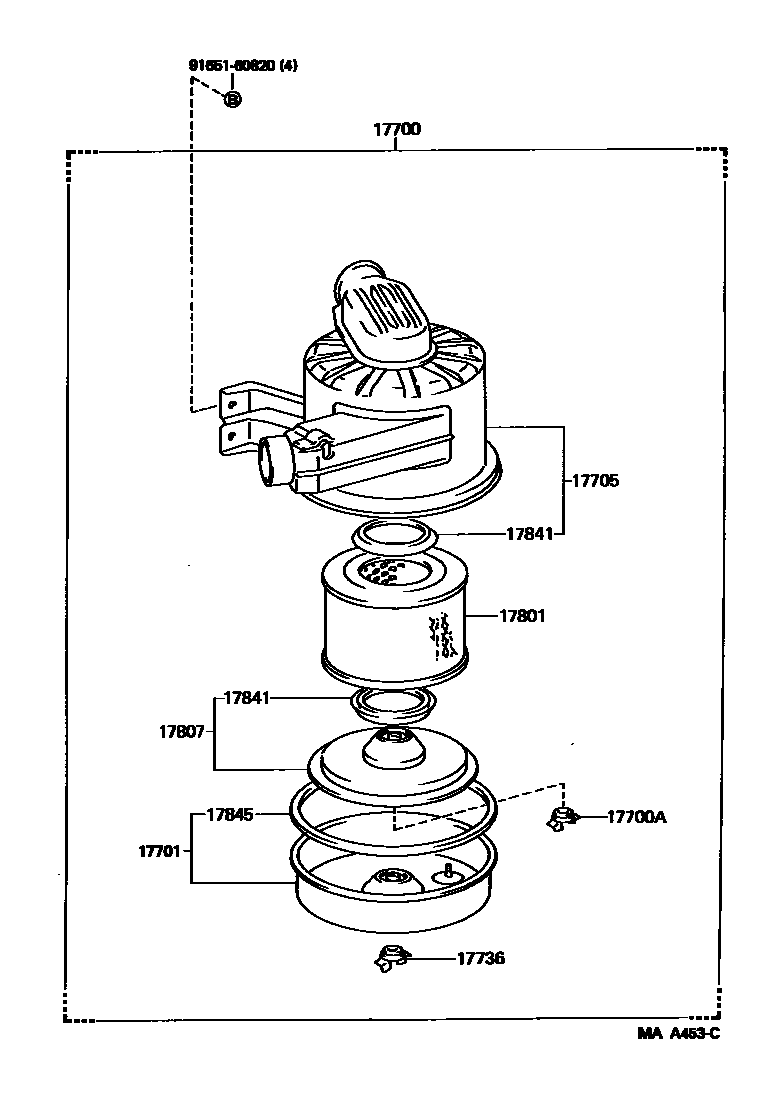

AIR CLEANER

0001 1 0003 1 0005 1 0007 1 0008 1

17700CLEANER ASSY, AIR

main17700-54340i2L..LH8#198708-198910

main17700-54500i2L..LH80198808-199109

main17700-54730i2L..LH8#,9#199109-199505

main17700-71120i2Y..YH81198708-199505

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i2L..LH8#,9#198808-199505

main90175-08008i2Y..YH81198808-199505

main90175-08008i2L..LH8#198708-198808

17701CASE SUB-ASSY, AIR CLEANER

main17701-54200i2L..LH8#198708-199505

17705CAP SUB-ASSY, AIR CLEANER

main17705-54130i2L..LH8#198708-198910

main17705-54260i2L..LH8#,9#199109-199505

main17705-54300i2L..LH80198808-199109

main17705-71050i2Y..YH81198708-199505

17736NUT, AIR CLEANER CASE

main90175-06003i2L..LH85198708-199505

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31060i2Y..YH81198708-199505

main17801-54070i2L..LH8#198708-199109

main17801-56020i2L..LH8#,9#199109-199505

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-54010i2Y..YH81198708-199505

main17807-58010i2L..LH8#,9#199109-199505

17841GASKET, FILTER ELEMENT

main17841-44030i2L..LH8#,9#199109-199505

main17841-54010i2Y..YH81198708-199505

17845GASKET, AIR CLEANER CAP

main17845-54010i2L..LH8#198708-199505

main17845-56020i2L..LH8#,9#199109-199505

9165160820

main91651-60820

10 parts on this diagram · 5 diagrams in section
