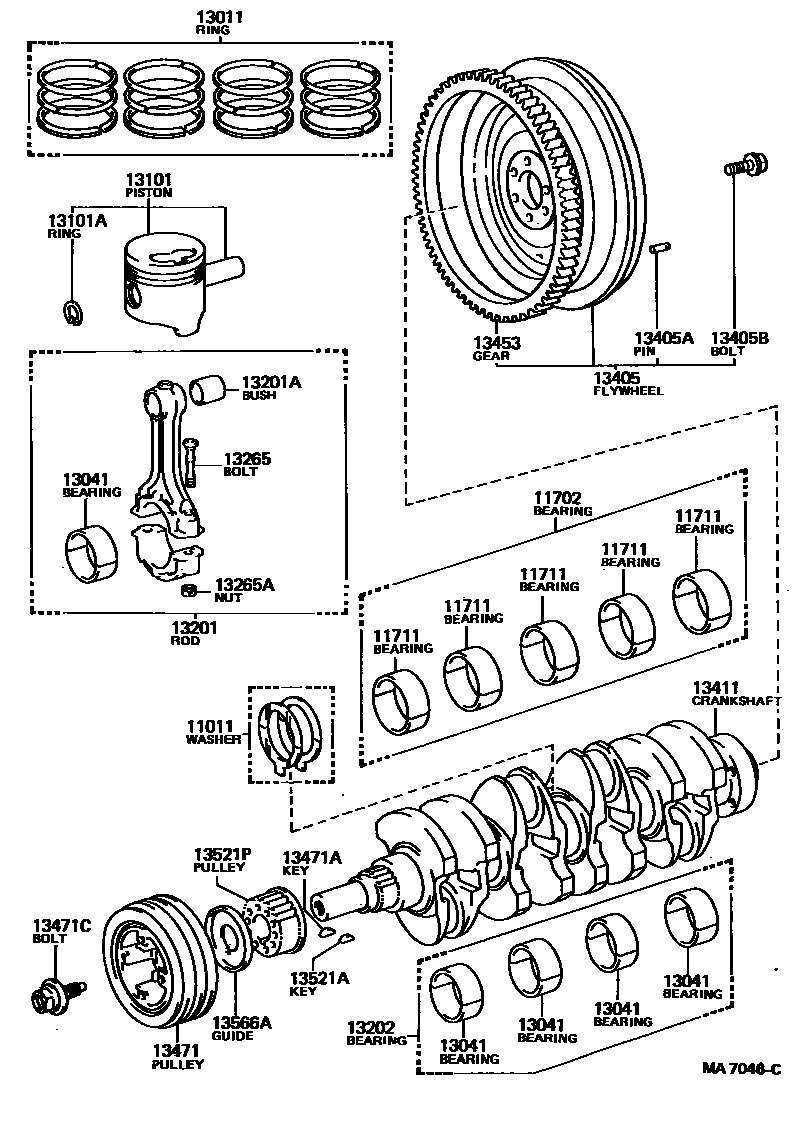

CRANKSHAFT & PISTON

0001 1 0003 1 0005 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-25010i2Y..YH81198708-199505

main11011-54010i2L..LH8#198708-198808

sub11011-54020

main11011-54020i2L..LH8#,9#198808-199505

main11012-54010i2L..LH8#198708-198808

sub11012-54020

main11012-54020i2L..LH8#,9#198808-199505

main11013-54010i2L..LH8#198708-198808

sub11013-54020

main11013-54020i2L..LH8#,9#198808-199505

11702BEARING SET, CRANKSHAFT

main11704-54060i2L..LH8#198708-198803

sub11704-54061

main11704-54061i2L..LH8#,9#198803-199505

sub11704-54080

main11704-71020i2Y..YH81198708-199505

main11705-54060i2L..LH8#198708-198803

sub11705-54061

main11705-54061i2L..LH8#,9#198803-199505

sub11705-54080

11711BEARING, CRANKSHAFT

main11701-54060-01i2L..LH8#198708-198803

MARK 1

sub11701-54061

main11701-54060-02i2L..LH8#198708-198803

MARK 2

sub11701-54061

main11701-54060-03i2L..LH8#198708-198803

MARK 3

sub11701-54061

main11701-54061-01i2L..LH8#,9#198803-199505

MARK 1

sub11701-54080

main11701-54061-02i2L..LH8#,9#198803-199505

MARK 2

sub11701-54080

main11701-54061-03i2L..LH8#,9#198803-199505

MARK 3

sub11701-54080

main11701-71020-01i2Y..YH81198708-199505

MARK 1

main11701-71020-02i2Y..YH81198708-199505

MARK 2

main11701-71020-03i2Y..YH81198708-199505

MARK 3

13011RING SET, PISTON

main13011-54061i2L..LH8#198708-198711

sub13011-54062

main13011-54062i2L..LH85198711-198910

main13011-54100i2L..LH8#,9#198808-199505

main13011-71021i2Y..YH81198708-199505

sub13011-71012

main13013-54061i2L..LH80198708-198710

sub13013-54062

main13013-54062i2L..LH8#198711-198910

main13013-54100i2L..LH80198808-199505

main13013-71021i2Y..YH81198708-199505

main13014-54062i2L..LH85198708-198910

main13014-54100i2L..LH80198808-199505

main13014-71021i2Y..YH81198708-199505

main13015-54062i2L..LH8#198708-198910

main13015-71021i2Y..YH81198708-199505

13041BEARING, CONNECTING ROD

main13041-54013-01i2L..LH8#198708-198808

MARK 1

sub13041-54024

main13041-54013-02i2L..LH8#198708-198808

MARK 2

sub13041-54024

main13041-54013-03i2L..LH8#198708-198808

MARK 3

sub13041-54024

main13041-54024i2L..LH8#198708-198803

main13041-54024-01i2L..LH8#,9#198808-199505

MARK 1

main13041-54024-02i2L..LH8#,9#198808-199505

MARK 2

main13041-54024-03i2L..LH8#,9#198808-199505

MARK 3

main13041-71011-06i2Y..YH81198808-199505

MARK 6

sub13041-73010

main13041-71011-07i2Y..YH81198808-199505

MARK 7

sub13041-73010

main13041-71011-08i2Y..YH81198808-199505

MARK 8

sub13041-73010

main13041-71021-06i2Y..YH81198708-198808

MARK 6

sub13041-71011

main13041-71021-07i2Y..YH81198708-198808

MARK 7

sub13041-71011

main13041-71021-08i2Y..YH81198708-198808

MARK 8

sub13041-71011

13101PISTON SUB-ASSY, W/PIN

main13101-54060i2L..LH8#198708-198801

main13101-54060-01i2L..LH85198801-198910

sub13101-54060

main13101-54060-02i2L..LH85198801-198910

sub13101-54060

main13101-54060-03i2L..LH8#198801-198910

sub13101-54060

main13101-54070-01i2L..LH80198808-199505

main13101-54070-02i2L..LH8#,9#198808-199505

main13101-54070-03i2L..LH8#,9#198808-199505

main13101-72010i2Y..YH81198708-198802

main13101-72010-01i2Y..YH81198802-199505

sub13101-72010

main13101-72010-02i2Y..YH81198802-199505

sub13101-72010

main13101-72010-03i2Y..YH81198802-199505

sub13101-72010

main13103-54060i2L..LH8#198708-198910

main13103-54070i2L..LH80198808-199505

main13103-72010i2Y..YH81198708-199505

main13104-54060i2L..LH85198708-198910

main13104-54070i2L..LH8#,9#198808-199505

main13104-72010i2Y..YH81198708-199505

main13105-54060i2L..LH85198708-198910

main13105-54070i2L..LH80198808-199505

main13105-72010i2Y..YH81198708-199505

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-29003i2L..LH8#,9#198708-199505

13201ROD SUB-ASSY, CONNECTING

main13201-59016i2L..LH8#198708-198807

sub13201-59017

main13201-59017i2L..LH8#198807-198910

main13201-59095i2L..LH80198808-199505

sub13201-59096

main13201-71011i2Y..YH81198708-199505

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73083i2L..LH8#198708-198807

main90999-73114i2L..LH80198808-199505

main90999-73117i2L..LH8#198807-198910

13202BEARING SET, CONNECTING ROD

main13204-54013i2L..LH8#198708-198808

sub13204-54024

main13204-54024i2L..LH8#,9#198808-199505

main13204-71011i2Y..YH81198808-199505

sub13204-73010

main13204-71021i2Y..YH81198708-198808

sub13204-71011

main13205-54013i2L..LH8#198708-198808

sub13205-54024

main13205-54024i2L..LH8#,9#198808-199505

13265BOLT, CONNECTING ROD

main13265-29025i2Y..YH81198708-199505

main13265-54011i2L..LH8#198708-198807

sub13265-54020

main13265-54020i2L..LH8#,9#198807-199505

sub13265-54021

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09001i2Y..YH81198708-199505

main90170-10005i2L..LH8#198708-198807

sub90179-10123

main90179-10123i2L..LH8#,9#198807-199505

13405FLYWHEEL SUB-ASSY

main13405-54011i2L..LH80..5F198805-198808

main13405-54060i2L..LH8#,9#..5F198805-199505

main13405-59035i2L..LH80..5F198708-198805

sub13405-54013

sub90105-12109

main13405-59066i2L..LH85198710-198805

main13405-72011i2Y..YH81198903-199505

main13405-79045i2Y..YH81198708-198903

sub13405-72011

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i2Y..YH81198708-199505

13405BBOLT, FLYWHEEL SETTING

main90105-10042i2Y..YH81198708-199505

main90105-12109i2L..LH8#,9#..5F198708-199505

13411CRANKSHAFT

main13401-54030i2L..LH8#198708-198805

main13401-54031i2L..LH8#198805-198910

main13401-54040i2L..LH8#,9#198808-199505

main13411-72010i2Y..YH81198708-199505

sub13411-72900

13453GEAR, FLYWHEEL RING

main13453-20010i2Y..YH81198708-199505

main13453-54010i2L..LH8#,9#..5F198708-199505

13471PULLEY, CRANKSHAFT

main13408-54020i2L..LH8#198708-198808

main13408-54020i2L..LH85198808-198910

main13408-54070i2L..LH8#,9#198910-199505

sub13408-54080

main13408-54070i2L..LH80198808-198910

sub13408-54080

main13408-73010i2Y..YH81198708-199505

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i2Y..YH81199209-199505

main90280-05010i2Y..YH81198708-199209

main95161-20622i2L..LH8#,9#198708-199205

sub95161-30622

main95161-20622i2L..LH80..IV;2L..LH85..T3..IV199205-199211

sub95161-30622

main95161-30622i2L..LH8#,9#199205-199505

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-14002i2L..LH80..IV;2L..LH85..T3..IV198808-199301

main90105-14013i2Y..YH81198708-198901

sub90105-14069

main90105-14069i2Y..YH81198901-199505

main90119-14005i2L..LH8#198708-198910

main90119-14031i2L..LH8#,9#198910-199310

sub90901-19028

main90901-19024i2L..LH80..IV;2L..LH85..T3..IV199301-199310

sub90901-19028

main90901-19028i2L..LH8#,9#199310-199505

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-33010i2Y..YH81198708-199505

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i2Y..YH81199209-199505

main90280-05010i2Y..YH81198708-199209

main95161-20622i2L..LH8#,9#198708-199205

sub95161-30622

main95161-20622i2L..LH80..IV;2L..LH85..T3..IV199205-199211

sub95161-30622

main95161-30622i2L..LH8#,9#199205-199505

13521PPULLEY, CRANKSHAFT TIMING

main13521-54020i2L..LH8#198708-198910

main13521-54030i2L..LH80198808-199505

13566AGUIDE, TIMING BELT

main13566-54010i2L..LH8#198708-198808

sub13566-54040

main13566-54040i2L..LH8#,9#198808-199505

24 parts on this diagram · 3 diagrams in section
