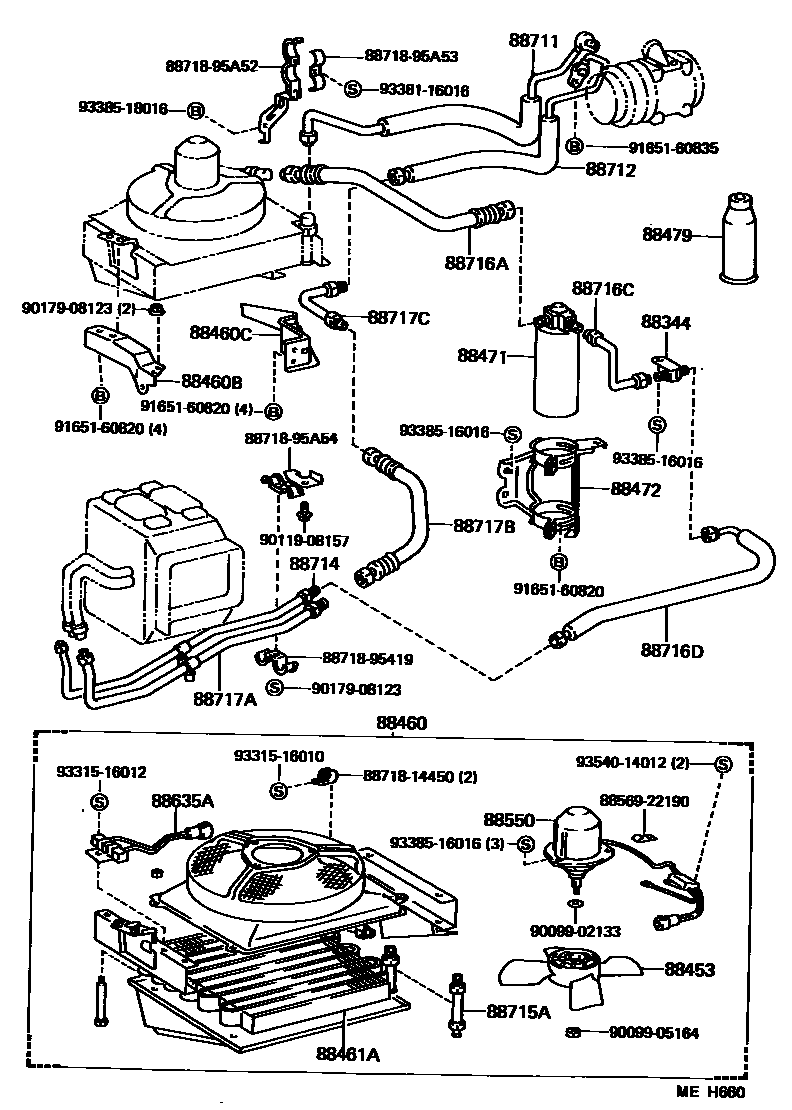

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1W/TRUCK FREZZER 0003 1

88344GLASS SUB-ASSY, SIGHT

main88481-87002iLH80,YH80198508-198708

88453FAN, COOLING (FOR CONDENSER)

main88453-95A01iLH80,YH80198508-198708

88460CONDENSER ASSY, COOLER

main88460-95A15iLH80,YH80198508-198708

sub88460-26040

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-95A58iLH80,YH80198508-198708

sub88688-95A60

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-95A57iLH80,YH80198508-198708

88461ACORE, COOLER CONDENSER

main88461-95A04iLH80,YH80198508-198708

88471TANK, RECEIVER AIR CONDITIONER

main88471-16010iLH80,YH80198508-198708

88472BRACKET, RECEIVER TANK, NO.1

main88472-95A09iLH80,YH80198508-198708

sub88472-95A10

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iLH80,YH80198508-198708

sub90986-02004

sub90986-02005

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main87104-95406iLH80,YH80198508-198708

88635ARESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)

main87138-95410iLH80,YH80198508-198708

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-95A21iYH80198508-198708

main88711-95A22iLH80198508-198708

sub88711-26630

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-95A21iYH80198508-198708

sub88712-26490

main88712-95A22iLH80198508-198708

sub88712-26500

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88716-95A79iLH80,YH80198508-198708

sub88716-95A80

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-95A03iLH80,YH80198508-198708

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88721-95A05iLH80,YH80198508-198708

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-95A78iLH80,YH80198508-198708

88716DPIPE, COOLER REFRIGERANT LIQUID, D

main88721-95A06iLH80,YH80198508-198708

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-95A40iLH80,YH80198508-198708

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88712-95A23iLH80,YH80198508-198708

sub88712-26510

88717CPIPE, COOLER REFRIGERANT SUCTION, C

main88717-95A54iLH80,YH80198508-198708

8856922190CLAMP (FOR COOLER RELAY)

main88569-22190

8871814450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14450

8871895419PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95419

8871895A52PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A52

8871895A53PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A53

8871895A54PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A54

9009902133

main90099-02133

9009905164

main90099-05164

9011908157

main90119-08157

9017908123

main90179-08123

9165160820

main91651-60820

9165160835

main91651-60835

9331516010

main93315-16010

9331516012

main93315-16012

9338116016

main93381-16016

9338516016

main93385-16016

9338518016

main93385-18016

9354014012

main93540-14012

39 parts on this diagram · 3 diagrams in section
