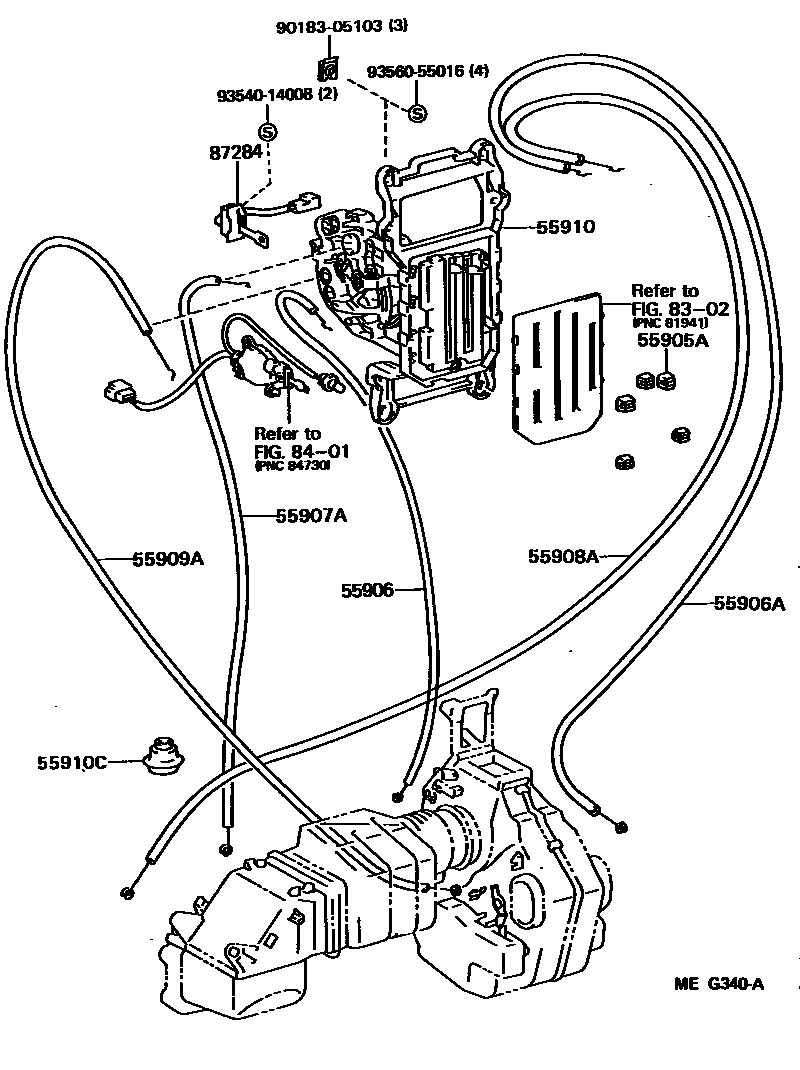

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905AKNOB, HEATER CONTROL

main55905-10110×3iLH80,YH80198508-198708

WHITE

main55905-95707×2iLH80,YH80198508-198708

BLUE

55906CABLE SUB-ASSY, HEATER CONTROL

main55905-95401iLH80,YH80198508-198708

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-95404iLH80,YH80198508-198708

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-95404iLH80,YH80198508-198708

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95402iLH80,YH80198508-198708

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95404iLH80,YH80198508-198708

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95407iLH80,YH80198508-198708

sub55910-36070

sub55905-26010

sub55905-36010

sub55905-36020

sub55905-37020

sub55906-26020

sub55906-36030

sub55906-36040

sub55906-37010

sub55907-26020

sub55907-36010

sub55907-36020

sub55907-37010

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-24215iLH80,YH80198508-198708

8302

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iLH80,YH80198508-198708

W/AIR CONDITIONER

9018305103

main90183-05103

9354014008

main93540-14008

9356055016

main93560-55016

14 parts on this diagram · 2 diagrams in section
