HEATING & AIR CONDITIONING - COOLER UNIT

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×6iLH80,YH80198508-198708

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-95403iLH80,YH80198508-198708

88510UNIT ASSY, COOLER

main88510-95A17iLH80,YH80198508-198708

88510RGROMMET (FOR COOLER UNIT)

main90099-32098iLH80,YH80198508-198708

LIQUID PIPE

main90480-36003iLH80,YH80198508-198609

SUCTION PIPE

main90480-36010iLH80,YH80198609-198708

SUCTION PIPE

88515VALVE, COOLER EXPANSION

main88515-16030iLH80,YH80198508-198604

main88515-16031iLH80,YH80198604-198708

88536BRACKET, COOLING UNIT, NO.1

main88536-95A34iLH80,YH80198508-198708

88536ABRACKET, COOLING UNIT, NO.2

main88536-95404iLH80,YH80198508-198708

88536BBRACKET, COOLING UNIT, NO.3

main88536-95405iLH80,YH80198508-198708

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-95A11iLH80,YH80198508-198708

88566DUCT, COOLER AIR, NO.1

main88566-95407iLH80,YH80198508-198708

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-95400iLH80,YH80198508-198708

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-95404iYH80198508-198708

main88605-95405iLH80198508-198708

88625THERMISTOR, COOLER, NO.1

main88625-95A00iLH80,YH80198508-198708

sub88625-28150

88630RELAY ASSY, COOLER

main88630-60020iLH80198508-198708

88630ARELAY ASSY, COOLER

main88630-95401iLH80,YH80198508-198708

88645GSWITCH, PRESSURE

main88645-17010iLH80,YH80198508-198708

NO.2

main88645-95J00iLH80,YH80198508-198708

NO.1

sub88645-12020

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iLH80198508-198708

main88650-87101iYH80198508-198708

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-95425iLH80,YH80198508-198708

8856912030CLAMP (FOR COOLER RELAY)

main88569-12030

9004404009

main90044-04009

9009900930

main90099-00930

9017908123

main90179-08123

9331515012

main93315-15012

9338118016

main93381-18016

9338518016

main93385-18016

9353055016

main93530-55016

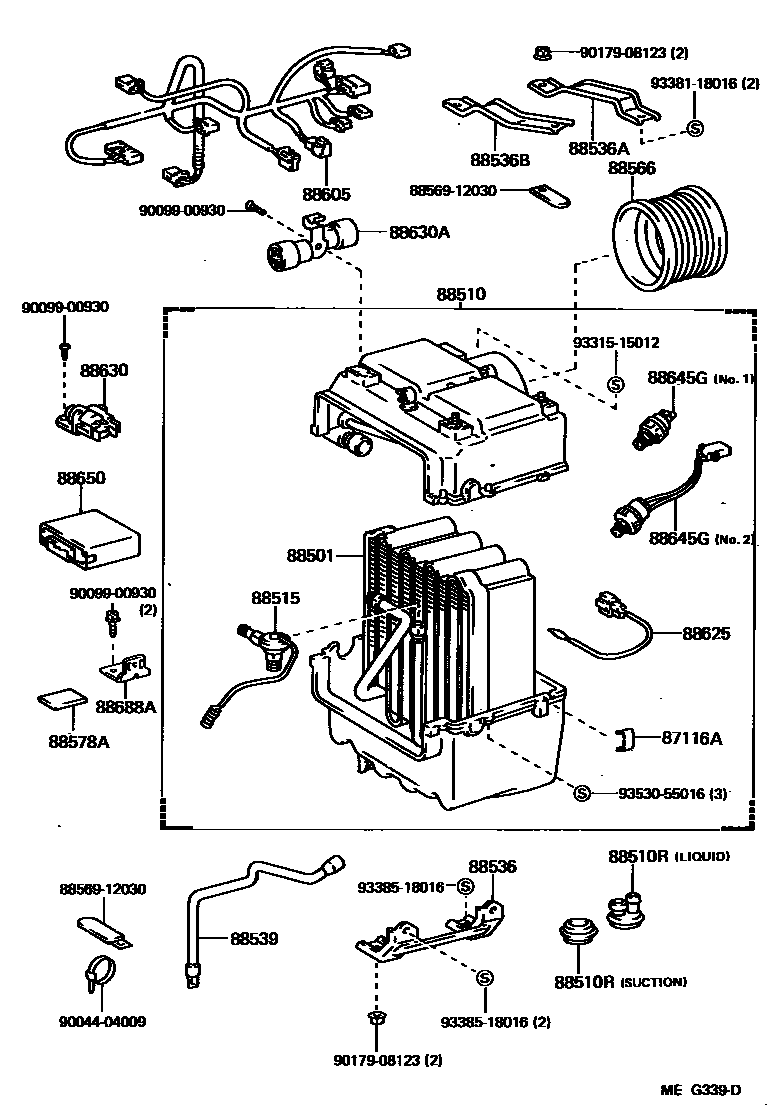

26 parts on this diagram · 1 diagram in section
