WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95441iLH80,YH80198508-198708

main85110-95445iLH80,YH80198508-198708

COLD SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85160-95409iLH80,YH80198508-198708

85163PACKING, WINDSHIELD WIPER PIVOT

main85179-95400iLH80,YH80198508-198708

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700iLH80,YH80198508-198708

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123iLH80,YH80198508-198708

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-95700iLH80,YH80198508-198708

85190ARM ASSY, WINDSHIELD WIPER

main85190-95417iLH80,YH80198508-198708

RH

main85210-95402iLH80,YH80198508-198708

LH

85192COVER, WINDSHIELD WIPER ARM

main85195-95J00iLH80,YH80198508-198708

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12560iLH80,YH80198508-198708

LH

sub85220-12561

main85220-12570iLH80,YH80198508-198708

RH

sub85212-37010

main85220-14170iLH80,YH80198608-198708

WINTER BLADE

sub85291-14010

main85220-30110iLH80,YH80198508-198608

WINTER BLADE

sub85220-20080

85221BLADE, WINDSHIELD WIPER

main85221-12230iLH80,YH80198508-198708

sub85214-12H90

85236BRACKET, WINDSHIELD WIPER

main85269-95400iLH80,YH80198508-198708

9009900913

main90099-00913

9165640818

main91656-40818

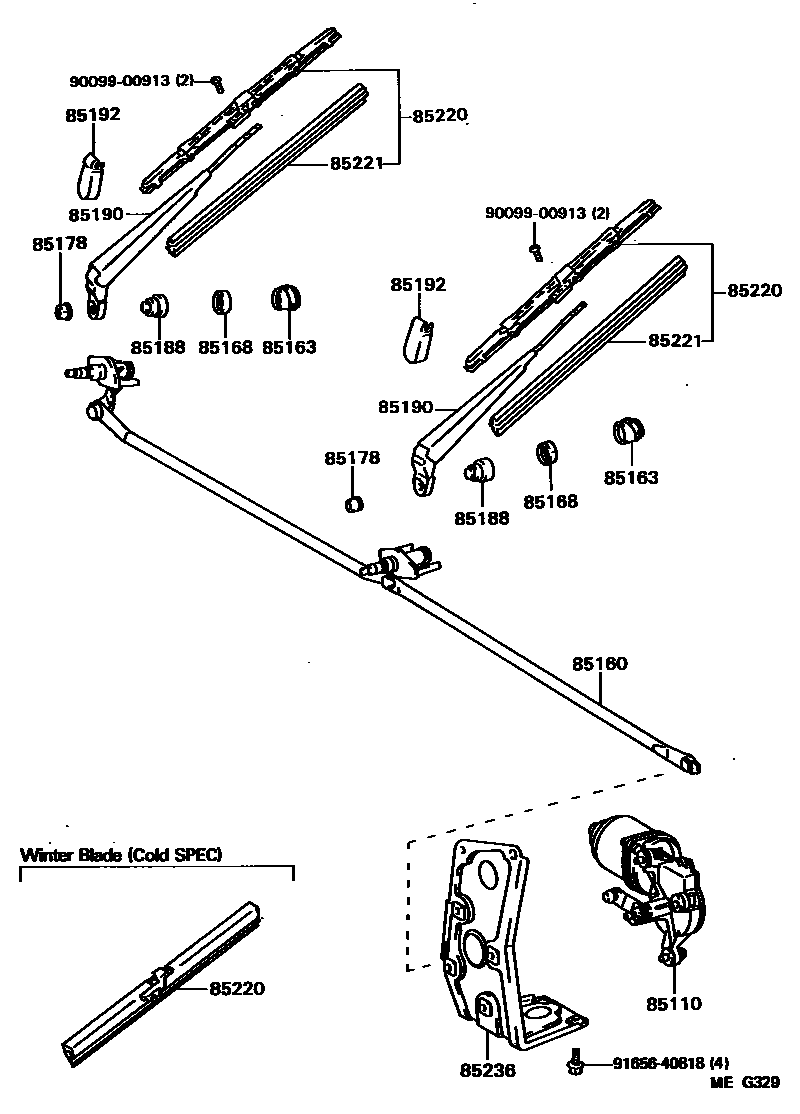

13 parts on this diagram · 1 diagram in section
