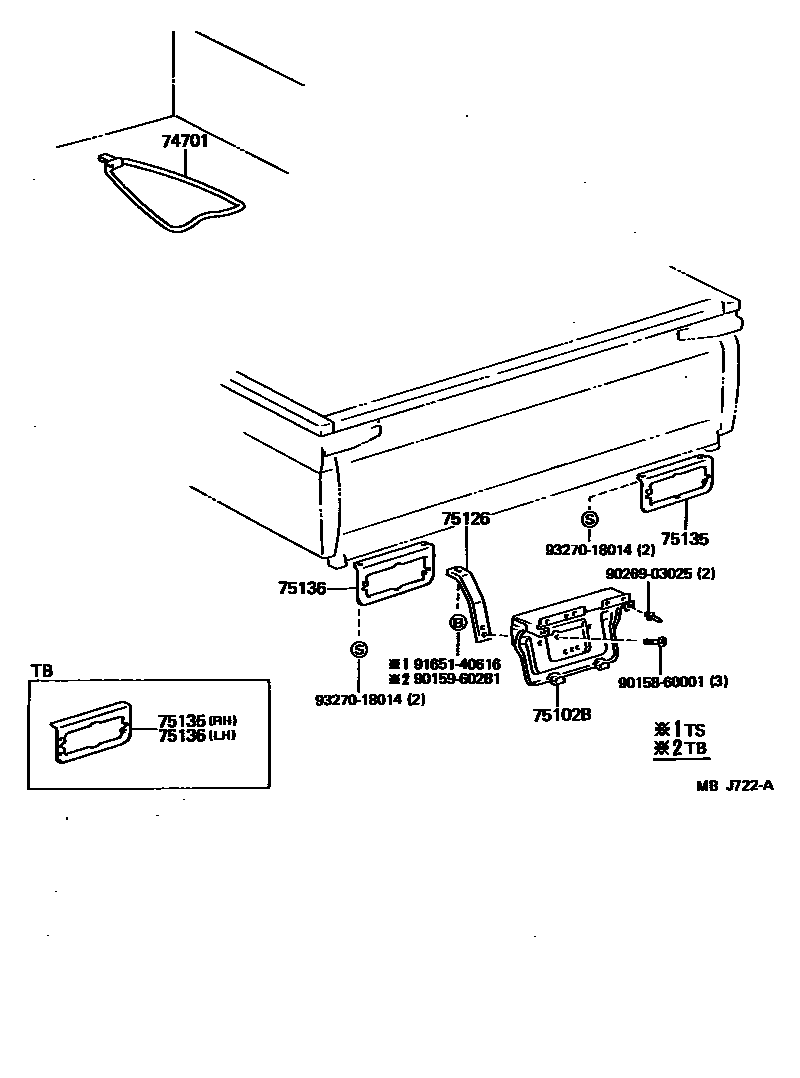

TOOL BOX & LICENSE PLATE BRACKET

74701CLAMP SUB-ASSY, TOOL BAG

main58705-95A01iLH80,YH80198508-198708

75102BHANGER ASSY, LICENSE PLATE BRACKET

main66490-95019iLH80,YH80..T1,T2,TW198508-198708

sub66490-25030

main66490-95A06iLH80,YH80..T3198508-198708

sub66490-25040

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-95017iLH80,YH80..T1,TW198508-198708

sub66407-25050

main66407-95020iLH80,YH80..T2..TS198508-198708

main66407-95A02iLH80,YH80..T3198508-198708

sub66407-25040

main66493-92203iLH80..TB198508-198708

75135BRACKET, COMBINATION REAR LAMP, RH

main65257-92200iLH80..TB198508-198706

sub75135-25040

main75135-92201iLH80..TB198706-198708

sub75135-25040

main75135-95A02iLH80,YH80..(T2,T3)..TS198508-198708

sub75136-25010

75136BRACKET, COMBINATION REAR LAMP, LH

main65257-92200iLH80..TB198508-198708

sub75135-25040

main75135-95A02iLH80,YH80..(T2,T3)..TS198508-198708

sub75136-25010

9015860001

main90158-60001

9015960281

main90159-60281

9026903025

main90269-03025

9165140616

main91651-40616

9327018014

main93270-18014

10 parts on this diagram · 1 diagram in section
