CAUTION PLATE

74517PLATE, EXHAUST TEMPERATURE CAUTION

main74517-20020iLH80,YH80198508-198708

74538APLATE, AIR CLEANER INLET OPERATIONAL CAUTION

main74538-95010iLH80,YH80198508-198708

sub74538-95404

74557PLATE, ROOF VENTILATION CAUTION

main74563-95400iLH80,YH80..T1,T2,T3198508-198708

74559APLATE, FUEL CAUTION

main74559-14010iYH80198508-198708

main74559-14030iLH80198601-198708

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-26190iYH80198508-198708

main74562-30410iLH80198508-198605

main74562-35120iLH80198605-198708

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-27050iYH80198508-198708

74565PLATE, TIRE CARRIER CAUTION

main74544-35050iLH80,YH80..T1,T3,TW198508-198701

sub74544-35060

main74544-35060iLH80,YH80..T1,T3,TW198701-198708

sub74544-35090

74566CPLATE, FRONT SLIDE DOOR CAUTION

main74566-95400iLH80..T1..IV198508-198608

sub74566-95401

main74566-95401iLH80..T1,T2,T3198608-198708

74567BPLATE, FRONT SLIDE DOOR ARM CAUTION

main74567-95400iLH80..T1..IV198508-198608

sub74567-95401

main74567-95401iLH80..T1,T2,T3198608-198708

74568APLATE, FRONT SLIDE DOOR CAUTION, NO.2

main74568-95401iLH80..T2,T3198508-198708

74571PLATE, BRAKE FLUID CAUTION

main47288-32010iLH80,YH80198608-198708

main74571-27022iLH80,YH80198508-198608

sub47288-32010

74581PLATE, POWER STEERING CAUTION

main74581-37010iYH80..T1,T2,T3198508-198708

74582APLATE, SAFETY CAUTION

main74582-26080iYH80..T3,TW198508-198708

main74582-26090iLH80..T3,TW198508-198708

main74582-26100iYH80..T1..CBU198508-198708

main74582-26110iLH80..T1..CBU198508-198708

main74582-26120iYH80..WT..CBU198508-198708

main74582-26130iLH80..WT..CBU198508-198708

main74582-26140iYH80..T2..ST198508-198708

main74582-26150iLH80..T2..ST198508-198708

main74582-36270iLH80,YH80..IV198508-198708

74585PLATE, TIRE CARRIER CAUTION, NO.2

main74585-25010iLH80,YH80..T2198508-198708

74586PLATE, TIRE CARRIER CAUTION, NO.3

main74586-25010iLH80,YH80..T2198508-198708

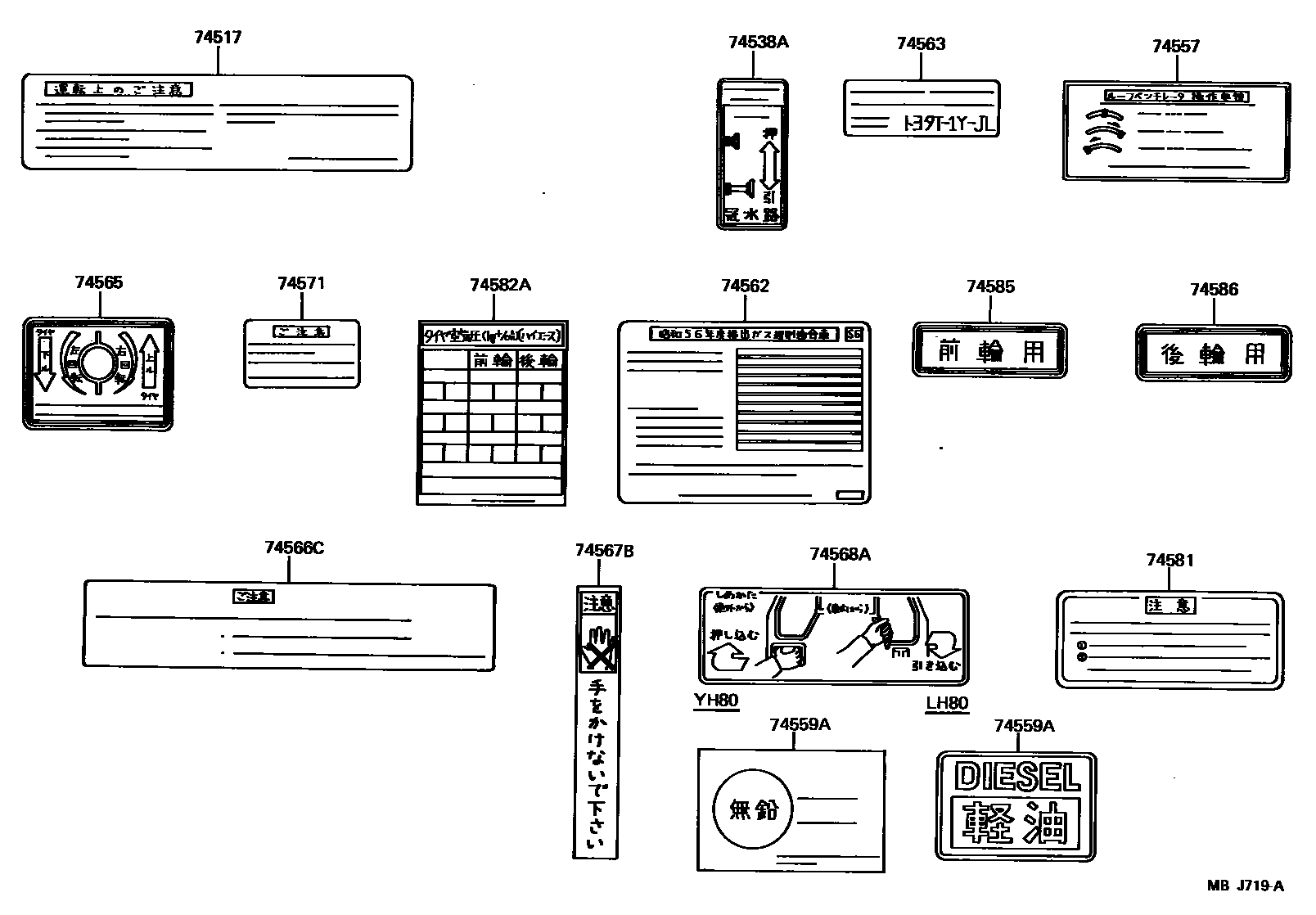

15 parts on this diagram · 1 diagram in section
