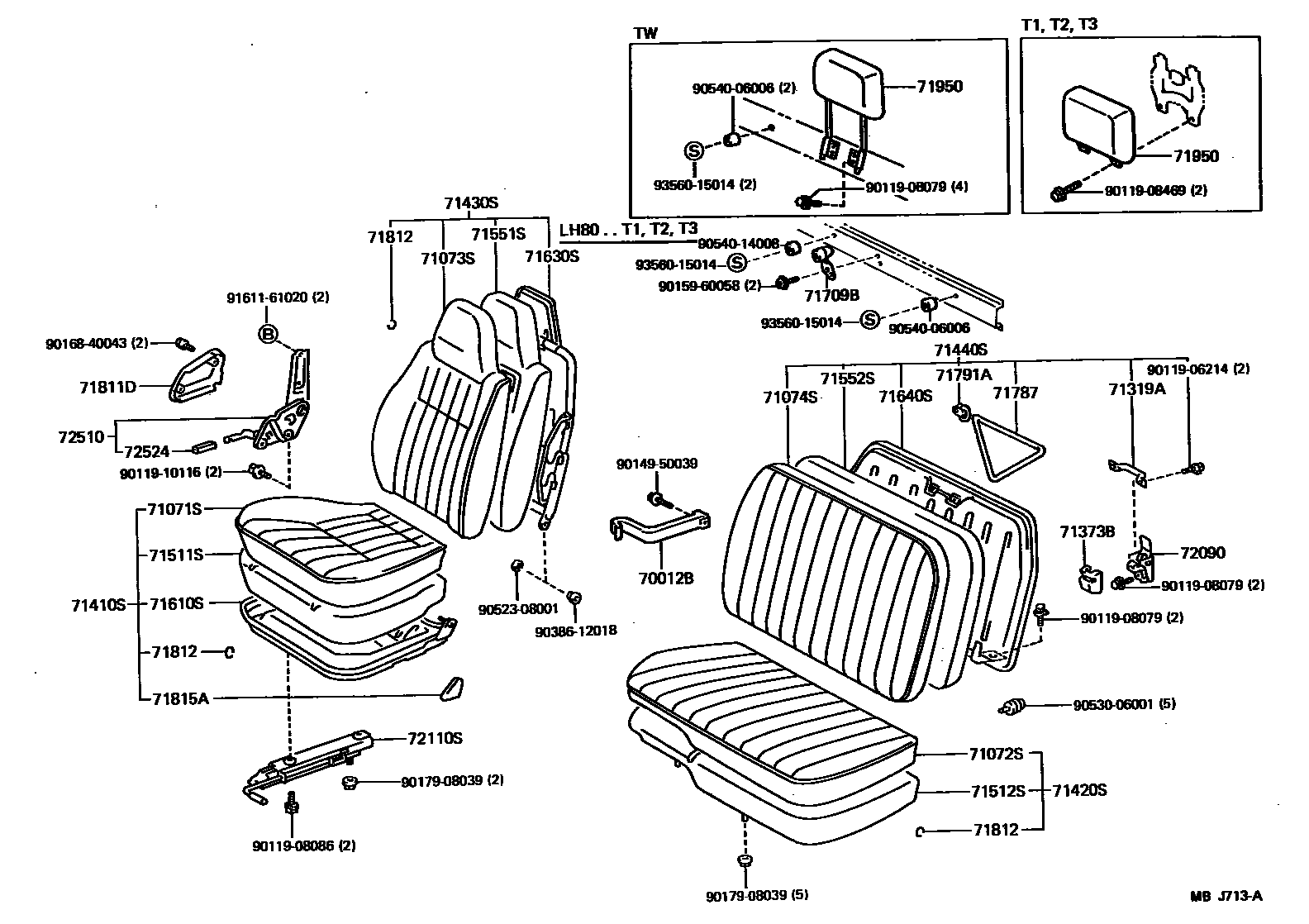

SEAT & SEAT TRACK

0001 1 0002 1

70012BBAND, ENGINE SERVICE HOLE COVER SUPPORT

main58930-95700-04iLH80,YH80198508-198708

BLUE,BLUE

sub58930-95700

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-95A00-04iLH80,YH80198508-198708

VL,BLUE,BLUE

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-95A00-04iLH80,YH80198508-198708

VL,BLUE,BLUE

main71072-95A01-04iLH80..T1..IV198508-198708

W/SLIDE DOOR,VL,BLUE,BLUE

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-95A00-04iLH80,YH80..T1,T2,T3198508-198708

VL,BLUE,BLUE

main71073-95A01-04iLH80,YH80..TW198508-198708

VL,BLUE,BLUE

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-95A06-04iLH80,YH80198508-198708

VL,BLUE,BLUE

main71074-95A07-04iLH80,YH80198508-198708

COLD SPEC,VL,BLUE,BLUE

main71074-95A08-04iLH80..T2,T3198508-198708

W/SLIDE DOOR,VL,BLUE,BLUE

main71074-95A09-04iLH80..T1..IV198508-198708

COLD SPEC,W/SLIDE DOOR,VL,BLUE,BLUE

71319ASTRIKER, FRONT SEATBACK

main71319-95400iLH80,YH80198508-198708

71373BCOVER, FRONT SEATBACK LOCK

main71373-95400-04iLH80,YH80198508-198708

BLUE,BLUE

sub71373-95400

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-95A48-04iLH80,YH80198508-198708

VL,BLUE,BLUE

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-95A07-04iLH80,YH80198508-198708

VL,BLUE,BLUE

main71420-95A08-04iLH80..T1..IV198508-198708

W/SLIDE DOOR,VL,BLUE,BLUE

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-95A00-04iLH80,YH80..T1,T2,T3198508-198708

VL,BLUE,BLUE

main71430-95A01-04iLH80,YH80..TW198508-198708

VL,BLUE,BLUE

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-95A16-04iLH80,YH80198508-198708

VL,BLUE,BLUE

main71440-95A17-04iLH80,YH80198508-198708

COLD SPEC,VL,BLUE,BLUE

main71440-95A18-04iLH80..T2,T3198508-198708

W/SLIDE DOOR,VL,BLUE,BLUE

main71440-95A19-04iLH80..T2,T3198508-198708

COLD SPEC,W/SLIDE DOOR,VL,BLUE,BLUE

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-95400iLH80,YH80198508-198708

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-95401iLH80..T2,T3198508-198708

W/SLIDE DOOR

main71502-95A05iLH80,YH80198508-198708

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-95404iLH80,YH80198508-198708

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-95403iLH80,YH80198508-198708

main71552-95404iLH80..T1..IV198508-198708

W/SLIDE DOOR

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71011-95414iLH80,YH80198508-198708

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71150-95J00iLH80,YH80198508-198708

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71014-95413iLH80,YH80198508-198708

71709BCUSHION SUB-ASSY, SEAT SUPPORT

main71709-95A05iLH80..T1,T2,T3198508-198708

71787BAND, FRONT SEATBACK POCKET

main71787-95400iLH80,YH80198508-198708

71791ARETAINER, FRONT SEATBACK POCKET

main71791-95400iLH80,YH80198508-198708

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-95J01-14iLH80,YH80198508-198708

BLUE,BLUE

sub71811-95J01

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main90468-18071iLH80,YH80198508-198708

sub90468-18008

71815ACOVER, FRONT SEAT CUSHION HINGE, RH

main71815-95J00-14iLH80,YH80198508-198708

BLUE,BLUE

sub71815-95J00

71950HEADREST ASSY, FRONT SEAT

main71910-92603-04iLH80,YH80..TW198508-198708

BLUE,BLUE

main71910-95400-04iLH80,YH80..T1,T2,T3198508-198708

BLUE,BLUE

sub71910-37010

72090LOCK ASSY, FRONT SEATBACK

main72090-95400-04iLH80,YH80198508-198708

BLUE,BLUE

sub72090-95400

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-95408iLH80,YH80198508-198708

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-95J00-14iLH80,YH80198508-198708

BLUE,BLUE

sub72510-95J00

72524HANDLE, RECLINING ADJUSTER RELEASE

main72525-95J00-14iLH80,YH80198508-198708

BLUE,BLUE

sub72525-95J00

9011906214

main90119-06214

9011908079

main90119-08079

9011908086

main90119-08086

9011908469

main90119-08469

9011910116

main90119-10116

9014950039

main90149-50039

9015960058

main90159-60058

9016840043

main90168-40043

9017908039

main90179-08039

9038612018

main90386-12018

9052308001

main90523-08001

9053006001

main90530-06001

9054006006

main90540-06006

9054014008

main90540-14008

9161161020

main91611-61020

9356015014

main93560-15014

45 parts on this diagram · 2 diagrams in section
