LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95403iLH80,YH80¥3,000198508-198708

sub69051-95404¥3,000

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95403iLH80,YH80¥3,000198508-198708

sub69052-95404¥3,000

main69052-95405iLH80..T2,T3¥3,000198508-198708

W/SLIDE DOOR

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-89102iLH80¥9,500198508-198708

sub69058-25010¥5,500

main69058-95400iYH80¥9,500198508-198708

sub69058-60071¥5,500

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95407iLH80,YH80¥5,700198508-198708

sub69057-95410¥5,700

69503CYLINDER SET, LOCK

main69503-95428iLH80¥17,000198508-198708

sub69503-95439¥18,000

main69503-95429iLH80..T1..IV¥17,000198508-198708

W/SLIDE DOOR

sub69503-95431

main69503-95432iYH80¥17,000198508-198708

sub69503-95444¥18,000

69503AKEY, BLANK

main90999-00066iLH80,YH80¥1,550198508-198708

sub90999-00085¥1,550

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iLH80..T1..IV¥160198508-198708

W/SLIDE DOOR,LH

main69511-95400iLH80,YH80¥250198508-198708

69685PAD, LOCK CYLINDER

main69513-32010iLH80,YH80¥120198508-198708

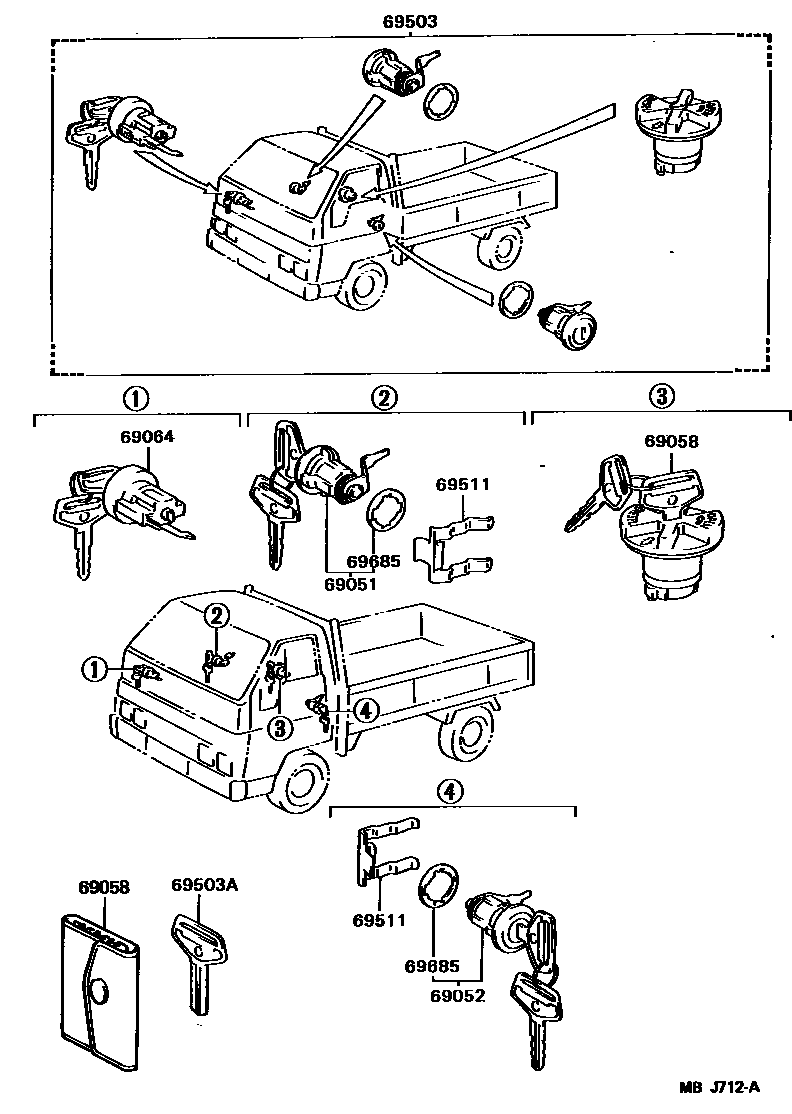

8 parts on this diagram · 1 diagram in section
