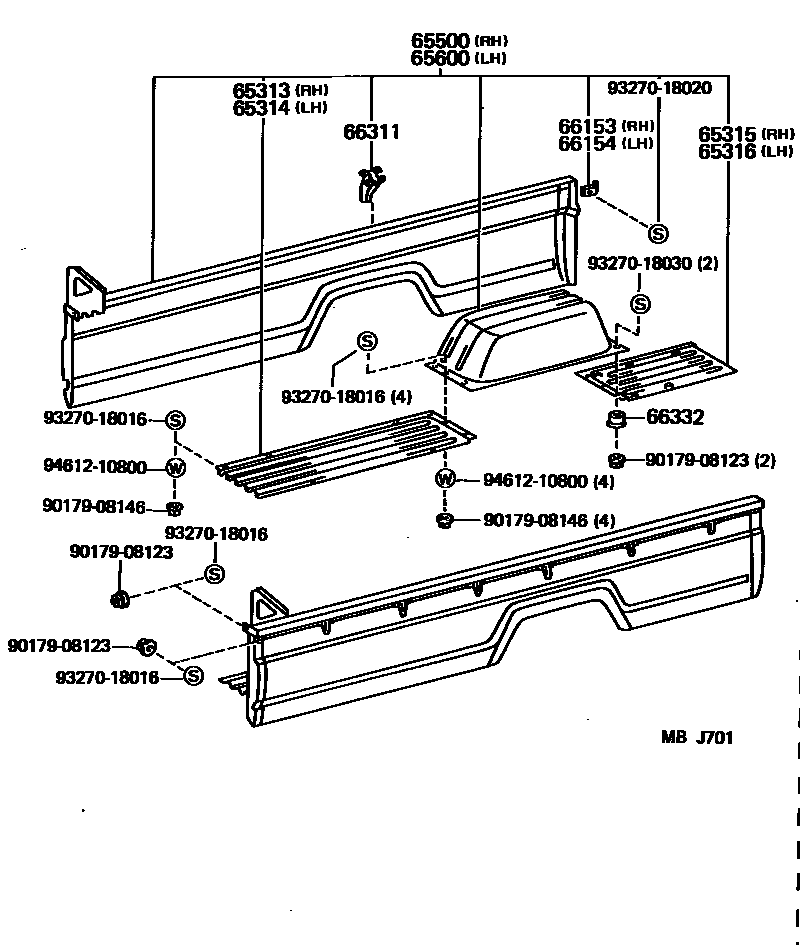

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-95A04iLH80,YH80..T1198508-198708

sub65313-26020

main65313-95A05iLH80,YH80..TW198508-198708

65314PANEL, FLOOR FRONT CORNER, LH

main65314-95022iLH80,YH80..T1198508-198708

sub65314-25020

main65314-95A03iLH80,YH80..TW198508-198708

65315PANEL, FLOOR REAR CORNER, RH

main65315-95405iLH80,YH80..T1,TW198508-198708

sub65315-25010

65316PANEL, FLOOR REAR CORNER, LH

main65316-95405iLH80,YH80..T1,TW198508-198708

sub65316-25010

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-92207iLH80..TB198509-198509

main65500-92212iLH80..TB198509-198608

main65500-92215iLH80..TB198608-198708

main65500-95A08iLH80,YH80..T1198508-198708

sub65500-95A12

main65500-95A09iLH80,YH80..TW198508-198708

main65500-95A10iLH80,YH80..(T2,T3)..TS198508-198708

W/SIDE GATE SUPPORT

sub65500-26030

main65500-95A11iLH80,YH80..(T2,T3)..TS198508-198708

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-92207iLH80..TB198508-198509

main65600-92212iLH80..TB198509-198608

main65600-92215iLH80..TB198608-198708

main65600-95A07iLH80,YH80..T1198508-198708

sub65600-26090

main65600-95A08iLH80,YH80..TW198508-198708

main65600-95A09iLH80,YH80..(T2,T3)..TS198508-198708

W/SIDE GATE SUPPORT

sub65600-26030

main65600-95A10iLH80,YH80..(T2,T3)..TS198508-198708

66153LATCH, TAIL GATE FEMALE, RH

main66153-95012iLH80,YH80..T1,TW198508-198708

main66153-95A00iLH80,YH80..(T2,T3)..TS198508-198708

sub66153-95A01

66154LATCH, TAIL GATE FEMALE, LH

main66153-95012iLH80,YH80..T1,TW198508-198708

main66154-95A00iLH80,YH80..(T2,T3)..TS198508-198708

sub66154-95A01

66311HOOK, ROPE

main66311-95010×8iLH80,YH80..T1198508-198708

sub66311-90K00

66332CUSHION, RUBBER

main66332-95A00×4iLH80,YH80..T1,TW198508-198708

9017908123

main90179-08123

9017908146

main90179-08146

9327018016

main93270-18016

9327018020

main93270-18020

9327018030

main93270-18030

9461210800

main94612-10800

16 parts on this diagram · 3 diagrams in section
