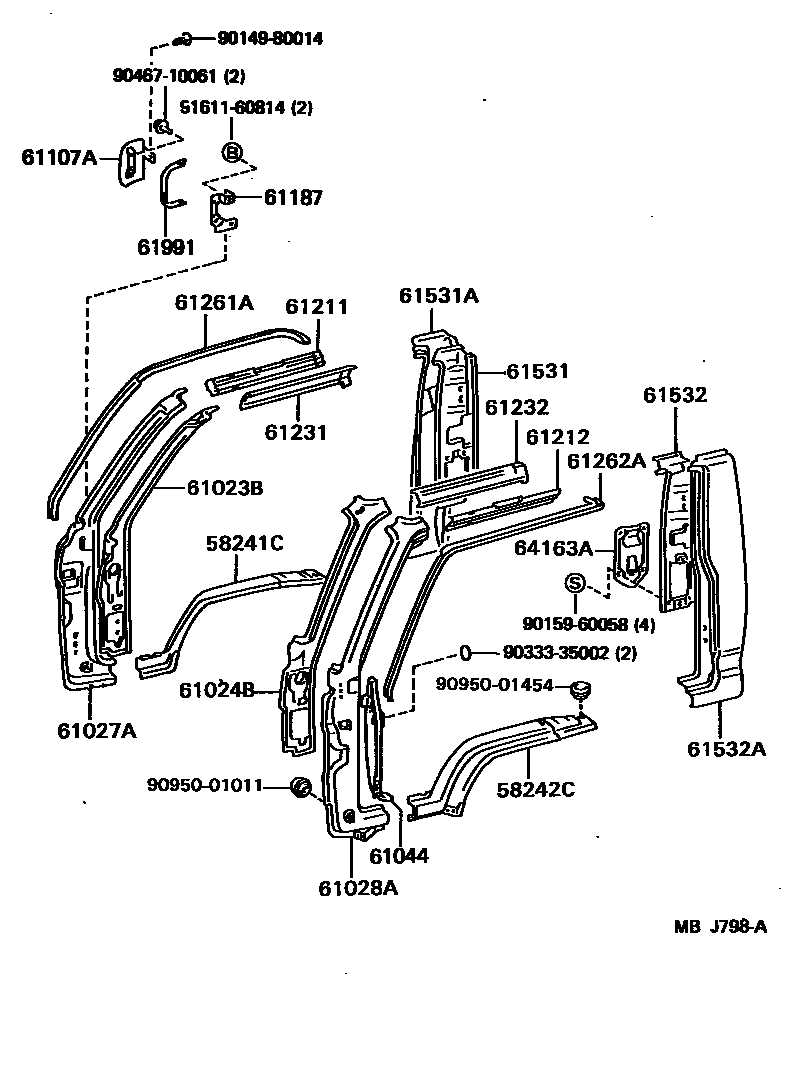

SIDE MEMBER

0001 1 0002 1

58241CPANEL, FLOOR SIDE, RH

main58011-95011iLH80,YH80..T1,T2,T3¥17,200198508-198708

sub58011-25010¥17,200

main58241-92603iLH80,YH80..TW¥12,200198508-198708

sub58241-37020¥12,100

58242CPANEL, FLOOR SIDE, LH

main58012-95012iLH80,YH80..T1,T2,T3¥17,200198508-198708

main58242-92603iLH80,YH80..TW¥12,000198508-198708

sub58242-37030¥12,100

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iLH80,YH80¥22,700198508-198708

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95400iLH80,YH80¥22,700198508-198708

sub61024-95403¥22,700

main61024-95403iLH80..T2,T3¥22,700198508-198708

W/SLIDE DOOR

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-95400iLH80,YH80¥41,400198508-198708

sub61027-37010¥41,400

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-95400iLH80,YH80¥41,300198508-198708

sub61028-37030¥41,300

main61028-95402iLH80..T1,T2,T3¥41,300198508-198708

W/SLIDE DOOR

sub61028-37050¥41,300

61044EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

main61044-95400iLH80..T1..IV¥8,500198508-198708

61107ACOVER SUB-ASSY, FRONT PILLAR DOOR HINGE

main61107-95415iLH80,YH80¥1,490198508-198708

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61187-95400iLH80,YH80¥1,550198508-198708

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iLH80,YH80¥6,700198508-198708

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iLH80,YH80¥6,700198508-198708

61231RAIL, ROOF SIDE, INNER RH

main61231-92601iLH80,YH80..TW¥1,190198508-198708

main61231-95405iLH80,YH80..T1,T2,T3¥3,100198508-198708

61232RAIL, ROOF SIDE, INNER LH

main61232-92600iLH80,YH80..TW¥1,200198508-198708

sub61232-37030¥3,130

main61232-95406iLH80,YH80..T1,T2,T3¥3,120198508-198708

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61261-92601iLH80,YH80..TW¥5,000198508-198708

main61261-95404iLH80,YH80..T1,T2,T3¥5,000198508-198708

61262ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61262-92601iLH80,YH80..TW¥5,000198508-198708

main61262-95404iLH80,YH80..T1,T2,T3¥5,000198508-198708

61531PANEL, BACK CORNER, INNER RH

main64015-95404iLH80,YH80..T1,T2,T3¥9,300198508-198708

61531APANEL, BACK CORNER, OUTER RH

main64103-95401iLH80,YH80..T1,T2,T3¥22,600198508-198708

sub64103-95403¥22,600

61532PANEL, BACK CORNER, INNER LH

main64016-95406iLH80,YH80..T1,T2,T3¥9,300198508-198708

61532APANEL, BACK CORNER, OUTER LH

main64104-95401iLH80,YH80..T1,T2,T3¥22,600198508-198708

sub64104-95403¥22,600

61991PROTECTOR, FRONT PILLAR DOOR HINGE

main61991-95400iLH80,YH80¥620198508-198708

sub61991-37010¥620

64163ACOVER, BACK CORNER, INNER

main64163-95404iLH80,YH80¥1,190198508-198708

9014980014

main90149-80014¥210

9015960058

main90159-60058¥160

9033335002

main90333-35002¥80

9046710061

main90467-10061¥120

9095001011

main90950-01011¥170

9095001454

main90950-01454¥110

9161160814

main91611-60814¥100

28 parts on this diagram · 2 diagrams in section
