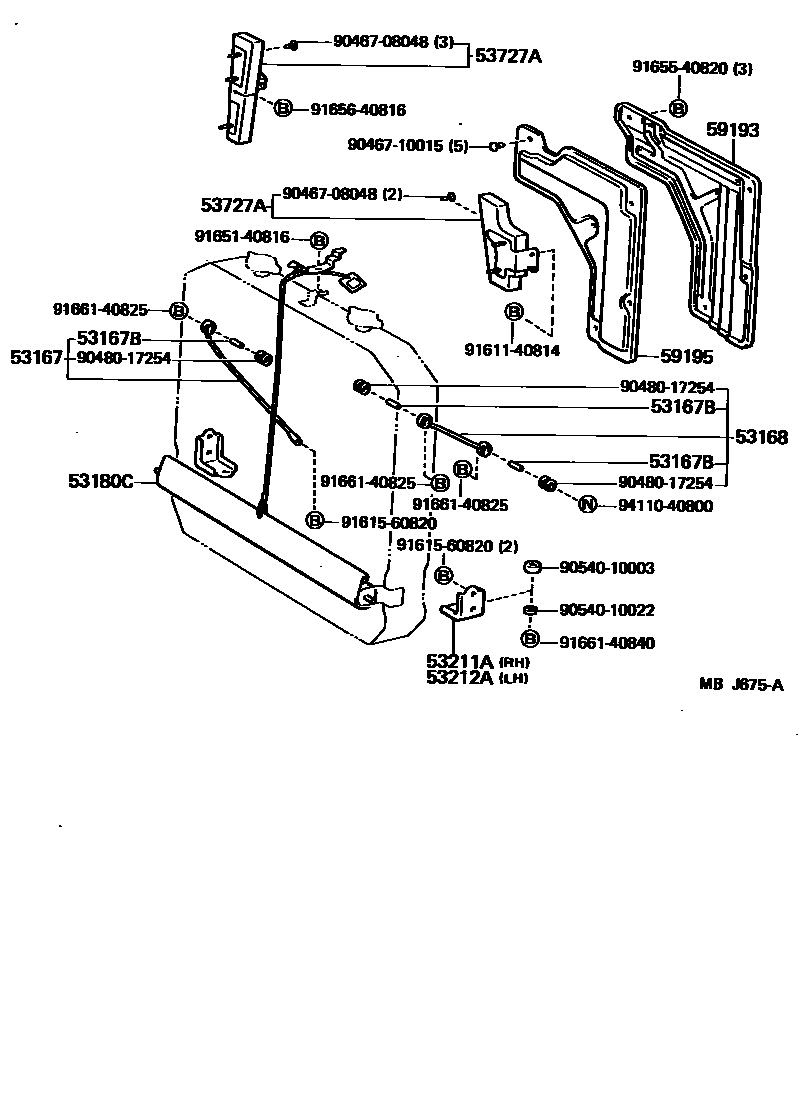

RADIATOR SUPPORT & WIND GUIDE

53167ROD, RADIATOR BRACE, RH

main53016-26020iLH80,YH80198508-198708

53167BTUBE(FOR RADIATOR BRACE ROD)

main90440-11043iLH80,YH80198508-198708

53168ROD, RADIATOR BRACE, LH

main53018-26010iLH80,YH80198508-198708

53180CSHUTTER ASSY, RADIATOR

main53180-95A00iLH80198508-198708

sub53180-95A02

53211ABRACKET, RADIATOR SUPPORT, RH

main51411-26010iLH80,YH80198508-198708

53212ABRACKET, RADIATOR SUPPORT, LH

main51411-26010iLH80,YH80198508-198708

53727ASHUTTER, HOT AIR SIDE

main53073-95A08iLH80198508-198708

RH

sub53073-95A09

main53074-95A05iLH80198508-198708

LH

59193GUARD, NOISE SHUTTER

main59193-95A00iLH80..T1,T2,T3198508-198708

sub59193-25010

59195INSULATOR, NOISE SHUTTER

main59195-95A00iLH80..T1,T2,T3198508-198708

sub59195-25030

9046708048

main90467-08048

9046710015

main90467-10015

9048017254

main90480-17254

9054010003

main90540-10003

9054010022

main90540-10022

9161140814

main91611-40814

9161560820

main91615-60820

9165140816

main91651-40816

9165540820

main91655-40820

9165640816

main91656-40816

9166140825

main91661-40825

9166140840

main91661-40840

9411040800

main94110-40800

22 parts on this diagram · 1 diagram in section
