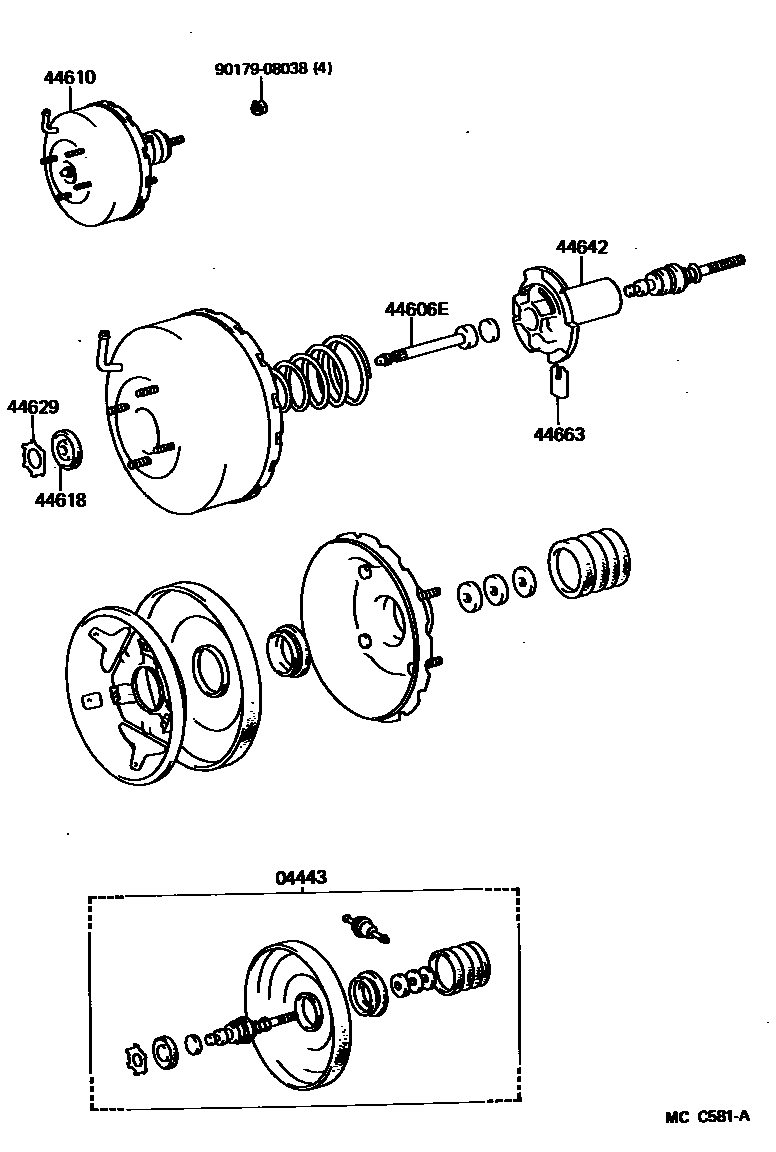

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-26260iYH80198508-198708

main04443-26270iLH80198508-198708

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iLH80,YH80198508-198708

44610BOOSTER ASSY, BRAKE

main44610-26280iLH80,YH80198508-198708

9INCH

44618SEAL, BOOSTER BODY

main44621-28120iLH80,YH80198508-198708

44629RING, CIRCULAR INTERNAL

main44628-28120iLH80,YH80198508-198708

44642PISTON, BRAKE BOOSTER

main44642-32010iLH80,YH80198508-198708

44663KEY, VALVE STOPPER

main44635-28120iLH80,YH80198508-198708

9017908038

main90179-08038

8 parts on this diagram · 3 diagrams in section
