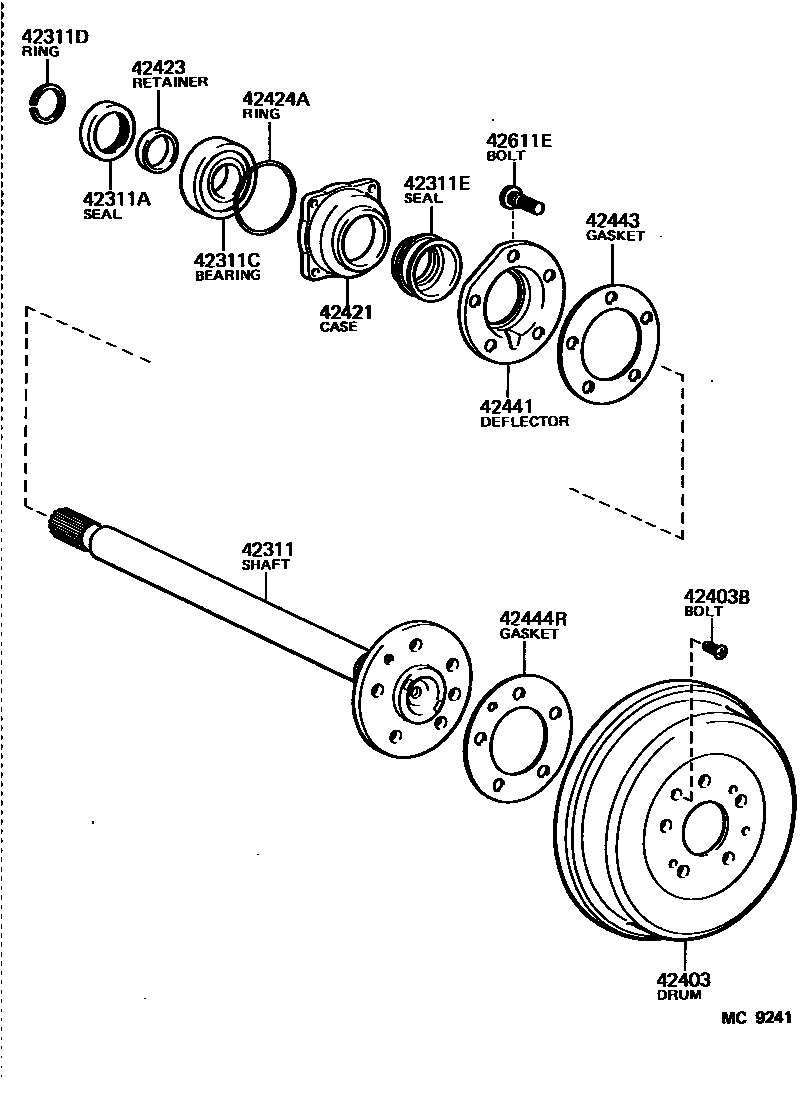

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311SHAFT, REAR AXLE

main42311-25070iLH80,YH80..WT198508-198708

sub42311-25071

sub90310-36003

main42311-26010iLH80,YH80..T1,T3,TW198508-198708

sub42311-26012

sub42421-35050

sub90313-54001

sub90363-40072

main42311-26050iLH80,YH80..T2..ST198508-198708

sub42311-26052

sub42421-35050

sub90313-54001

sub90363-40072

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-50001iLH80,YH80..ST198508-198708

sub90310-50006

main90311-62001iLH80,YH80..WT198508-198708

42311CBEARING(FOR REAR AXLE SHAFT)

main90363-40020iLH80,YH80..ST198508-198708

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-36045iLH80,YH80..ST198508-198708

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-35001iLH80,YH80..WT198508-198708

main90313-48001iLH80,YH80..ST198508-198708

42403DRUM SUB-ASSY, REAR BRAKE

main42431-26050iLH80,YH80..ST198508-198708

sub42431-35190

main42431-26060iLH80,YH80..WT198508-198708

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035iLH80,YH80..ST198508-198708

42421CASE, REAR AXLE BEARING

main42421-35030iLH80,YH80..ST198508-198708

42423RETAINER, REAR AXLE BEARING, INNER

main42423-20010iLH80,YH80..ST198508-198708

42424ARING, O (FOR BEARING RETAINER SET)

main90301-88077iLH80,YH80..ST198508-198708

42441DEFLECTOR, BRAKE DRUM OIL

main42441-25020iLH80,YH80..WT198508-198708

main42441-26010iLH80,YH80..ST198508-198708

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-30010iLH80,YH80..ST198508-198708

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35060iLH80,YH80..ST198508-198708

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02037iLH80,YH80..ST198508-198708

sub90942-02049

main90942-02041iLH80,YH80..WT198508-198708

RH

sub90942-02110

main90942-02042iLH80,YH80..WT198508-198708

LH

sub90942-02111

14 parts on this diagram · 2 diagrams in section
