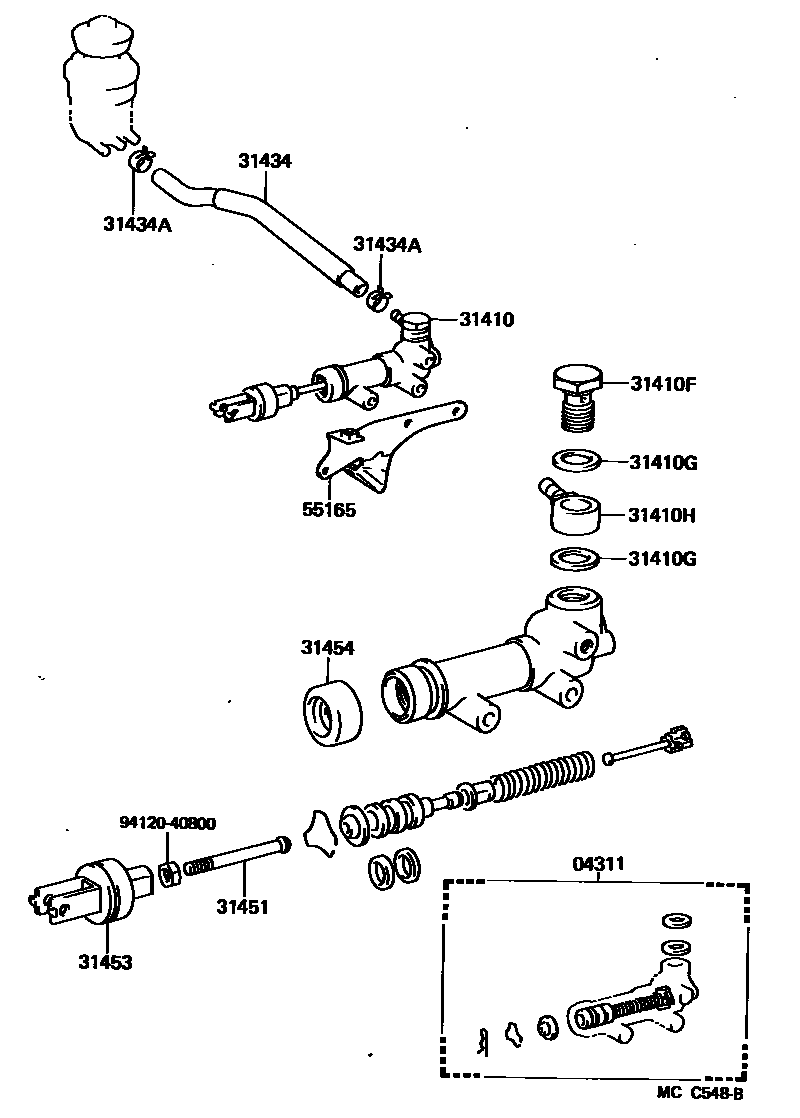

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-26030iLH80,YH80..MTM198508-198708

sub04311-26032

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26140iLH80,YH80..MTM198508-198708

sub31420-26141

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iLH80,YH80..MTM198508-198708

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iLH80,YH80..MTM198508-198708

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10125iLH80,YH80..MTM198508-198708

31434TUBE, CLUTCH RESERVOIR

main31434-26130iLH80,YH80..MTM198508-198708

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iLH80,YH80..MTM198508-198708

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iLH80,YH80..MTM198611-198708

main31451-30060iLH80,YH80..MTM198508-198611

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iLH80,YH80..MTM198508-198708

sub31404-28012

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLH80,YH80..MTM198508-198708

55165SUPPORT, CLUTCH MASTER CYLINDER

main55165-95401iLH80,YH80..MTM198508-198708

9412040800

main94120-40800

12 parts on this diagram · 1 diagram in section
