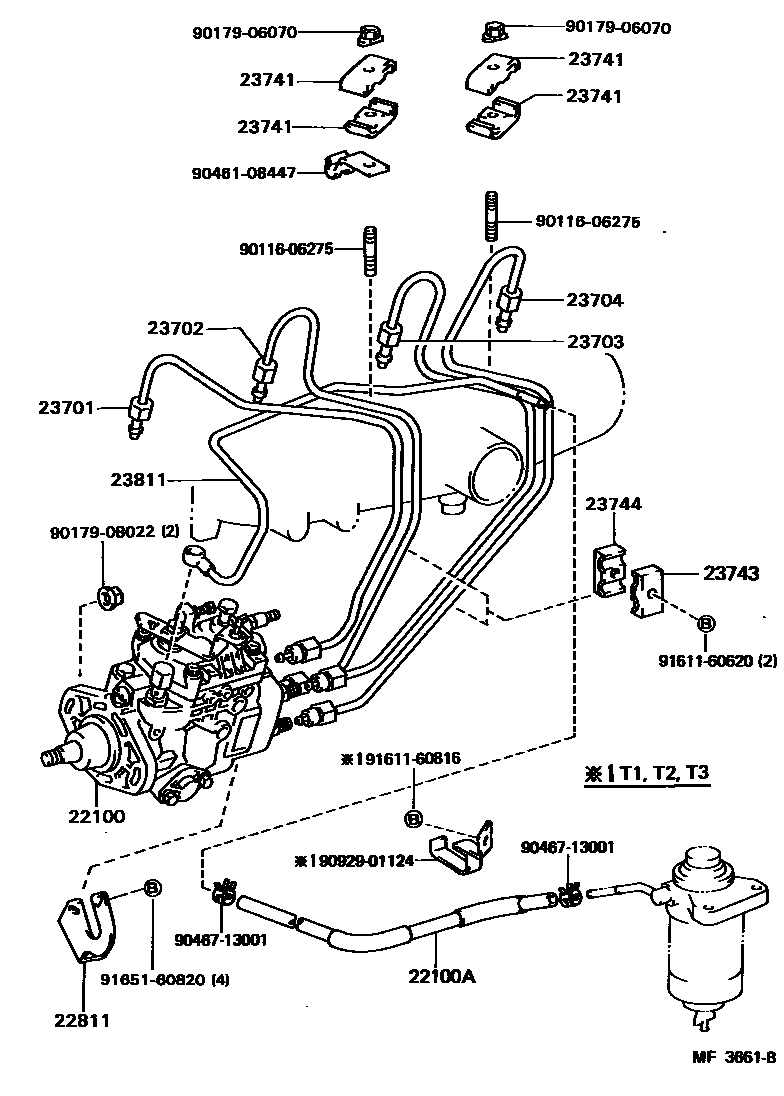

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54310i2L..LH80..5F198508-198607

sub22100-54340

main22100-54311i2L..LH80..5F198607-198708

sub22100-54341

main22100-54370i2L..LH80..4FC198508-198607

sub22100-54380

main22100-54371i2L..LH80..4FC198607-198708

sub22100-54381

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14033i2L..LH80..T1,T2,T3198508-198708

main90447-14040i2L..LH80..TW198508-198708

22811STAY, INJECTION PUMP, NO.1

main22811-54040i2L..LH80198508-198708

sub22811-54041

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54082i2L..LH80198508-198708

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54081i2L..LH80198508-198708

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050i2L..LH80198508-198708

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050i2L..LH80198508-198708

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010i2L..LH80198508-198708

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010i2L..LH80198508-198708

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010i2L..LH80198508-198708

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54120i2L..LH80198508-198708

sub23811-54140

9011606275

main90116-06275

9017906070

main90179-06070

9017908022

main90179-08022

9046108447

main90461-08447

9046713001

main90467-13001

9092901124

main90929-01124

9161160620

main91611-60620

9161160816

main91611-60816

9165160820

main91651-60820

20 parts on this diagram · 1 diagram in section
