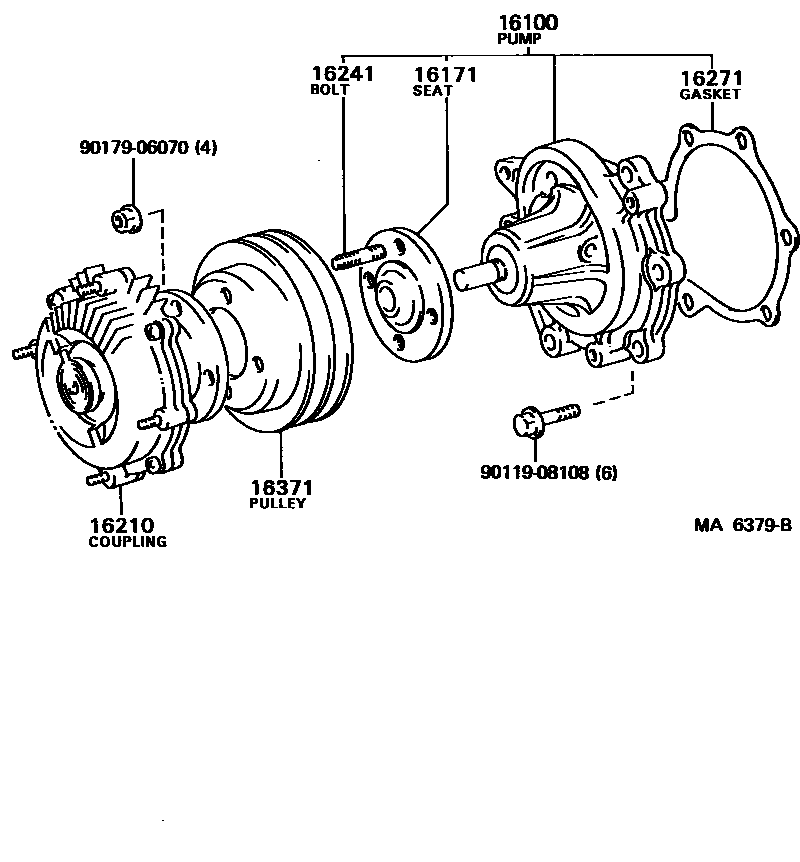

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-59137i2L..LH80198508-198708

sub16100-59138

main16100-79035i1YJ..YH80198508-198708

sub16100-79036

16171SEAT, WATER PUMP PULLEY

main16171-54011i2L..LH80198508-198708

16210COUPLING ASSY, FLUID

main16210-54070i2L..LH80..5F198508-198708

main16210-54080i2L..LH80..4FC198508-198708

sub16210-54090

main16210-73010i1YJ..YH80198508-198708

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16192-70010i1YJ..YH80198508-198708

main16193-13020i2L..LH80198508-198708

16271GASKET, WATER PUMP

main16271-54012i2L..LH80198508-198708

sub16271-54013

16371PULLEY, FAN

main16371-54020i2L..LH80198508-198708

main16371-73011i1YJ..YH80198508-198708

9011908108

main90119-08108

9017906070

main90179-06070

8 parts on this diagram · 2 diagrams in section
