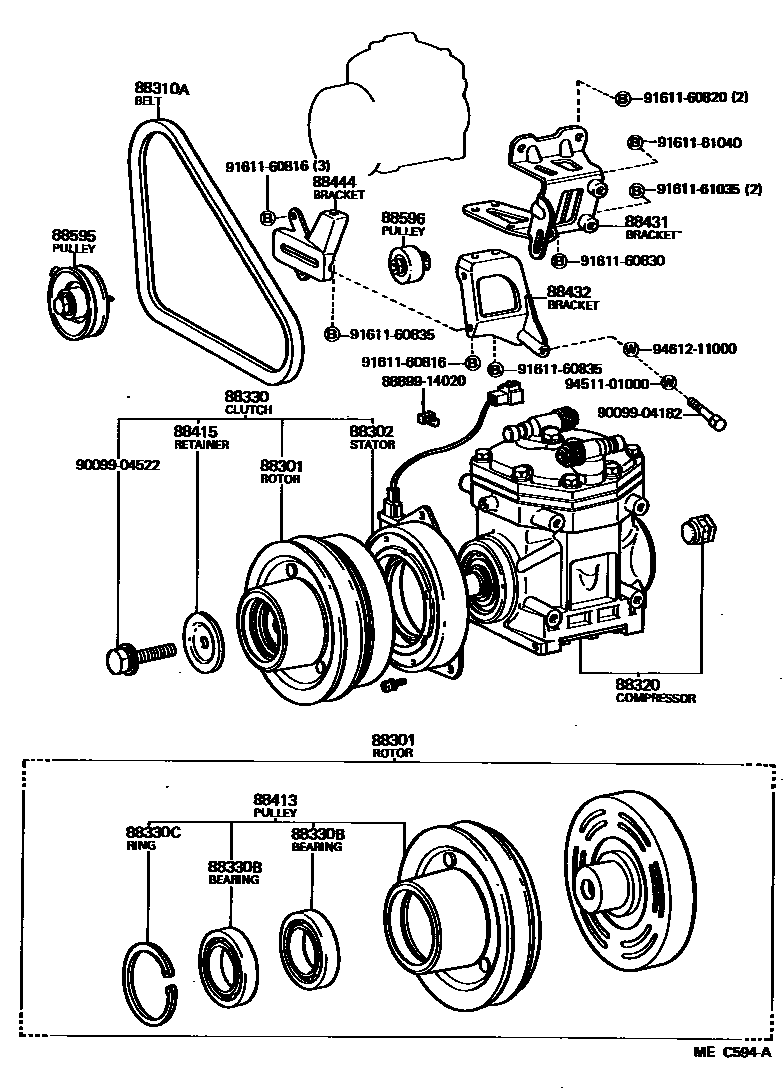

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88401-20090iRH24198211-198507

sub88401-36090

main88412-22030iLH24198211-198507

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLH24198211-198507

main88411-20080iRH24198211-198507

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-01020iRH24198211-198507

main99322-01330iLH24198211-198507

88320COMPRESSOR ASSY, COOLER

main88320-26150iLH24198211-198507

main88320-26170iRH24198211-198507

88330CLUTCH ASSY, MAGNET

main88410-20110iRH24198211-198507

main88410-22080iLH24198211-198507

sub88410-60140

88330BBEARING, MAGNET CLUTCH

main90099-10083iRH24198211-198507

main90099-10133iLH24198211-198507

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90096-90005iRH24198211-198507

main90099-07114iLH24198211-198507

88413PULLEY SUB-ASSY, MAGNET CLUTCH

main88402-30250iRH24198211-198507

88415RETAINER, MAGNET CLUTCH BEARING, NO.1

main88415-12020iRH24198211-198507

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-26110iRH24198211-198507

main88431-26180iLH24198211-198507

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88432-20070iRH24198211-198507

88444BRACKET, IDLE PULLEY

main88444-26010iRH24198211-198507

main88444-26080iLH24198211-198507

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-26030iLH24198211-198507

main88440-26050iRH24198211-198507

88596PULLEY ASSY, IDLE, NO.2

main88440-20060iRH24198211-198507

8889914020COVER, EVAPORATOR

main88899-14020

9009904182

main90099-04182

9009904522

main90099-04522

9161160816

main91611-60816

9161160820

main91611-60820

9161160830

main91611-60830

9161160835

main91611-60835

9161161035

main91611-61035

9161161040

main91611-61040

9451101000

main94511-01000

9461211000

main94612-11000
