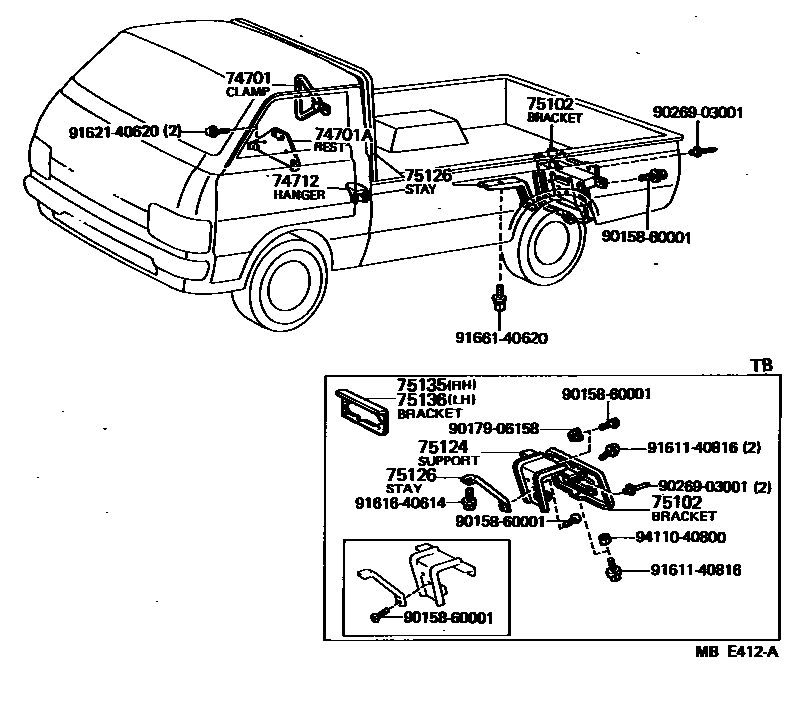

TOOL BOX & LICENSE PLATE BRACKET

74701CLAMP SUB-ASSY, TOOL BAG

main74701-95601iLH24,RH24198211-198507

sub58705-95701

74701AREST SUB-ASSY, TOOL BAG

main75203-95A02iLH24198211-198507

74712HANGER, JACK HOLDER

main74711-95A00iLH24,RH24..03S198211-198507

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-95016iLH24,RH24..T3198211-198507

main66490-95018iLH24,RH24..(T1,T2,TW)..TS198211-198507

main75102-25020iLH24..TB198211-198507

75124SUPPORT, REAR LICENSE BRACKET

main66490-92701iLH24..TB198401-198507

main66490-92740iLH24..TB198211-198401

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-95011iLH24,RH24..ST198211-198507

main66407-95A01iLH24,RH24..TS..WT198211-198507

main66409-92500iLH24..TB198401-198507

main66493-92541iLH24..TB198211-198401

75135BRACKET, COMBINATION REAR LAMP, RH

main65257-92200iLH24..TB198211-198507

sub75135-25040

75136BRACKET, COMBINATION REAR LAMP, LH

main65257-92200iLH24..TB198211-198507

sub75135-25040

9015860001

main90158-60001

9017906158

main90179-06158

9026903001

main90269-03001

9161140816

main91611-40816

9161640614

main91616-40614

9162140620

main91621-40620

9166140620

main91661-40620

9411040800

main94110-40800

16 parts on this diagram · 1 diagram in section
