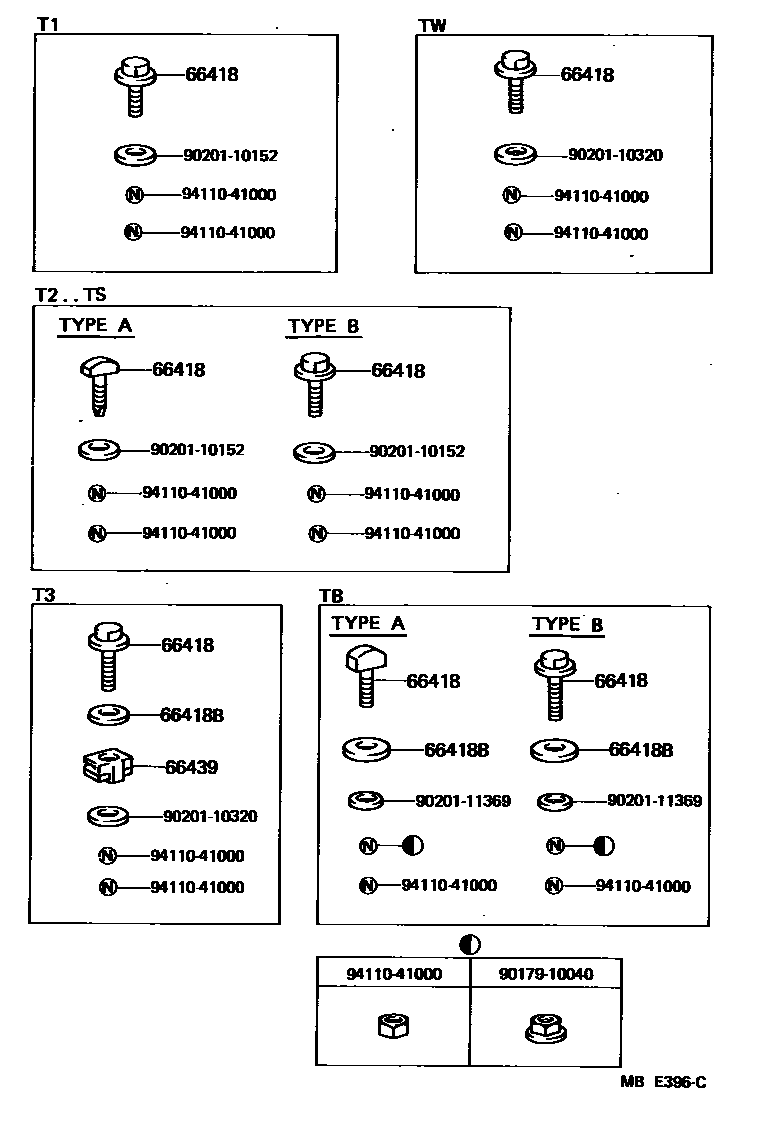

REAR BODY MOUNTING

66418BOLT, MOUNTING

main66418-92220iLH24..TB198211-198507

TYPE A

main66418-95400iLH24,RH24..TS..WT198211-198507

TYPE A

main90119-10004iLH24,RH24..T3198504-198507

TYPE B,L=50

sub90119-10091

main90119-10091iLH24,RH24..T3198312-198507

TYPE B,L=55

main90119-10102iLH24,RH24198211-198507

TYPE B,L=40

66418BSHIM, MOUNTING

main66441-92220iLH24..TB198211-198507

sub90564-15142

main90564-10167iLH24,RH24..T3198211-198507

66439SHIM, SUPPORT

main66439-95400iLH24,RH24..T3198211-198507

9017910040

main90179-10040

9020110152

main90201-10152

9020110320

main90201-10320

9020111369

main90201-11369

9411041000

main94110-41000

8 parts on this diagram · 1 diagram in section
