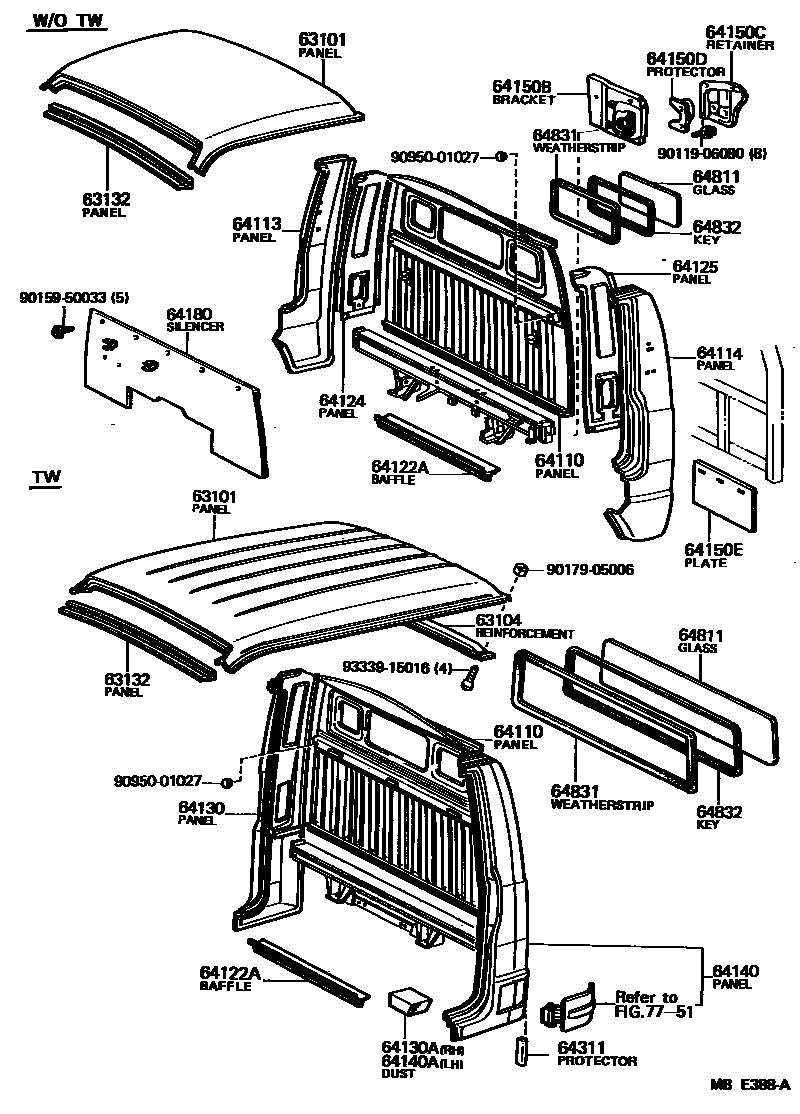

ROOF PANEL & BACK PANEL
63101PANEL SUB-ASSY, ROOF
63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63132PANEL, WINDSHIELD HEADER, INNER
64110PANEL ASSY, FRONT BODY BACK
64113PANEL, BACK CORNER, OUTER RH
64114PANEL, BACK CORNER, OUTER LH
64122ABAFFLE, DUST REAR BODY
64124PANEL, BACK CORNER, INSIDE, RH
64125PANEL, BACK CORNER, INSIDE, LH
64130PANEL ASSY, BACK CORNER, RH
64130ADUST PROOF, FLOOR SIDE, RH
64140PANEL ASSY, BACK CORNER, LH
64140ADUST PROOF, FLOOR SIDE, LH
64150BBRACKET ASSY, AIR CLEANER INLET SEAL
64150CRETAINER, COOL AIR INTAKE INLET
64150DPROTECTOR, COOL AIR INTAKE INLET
64150EPLATE, AIR CLEANER BAFFLE
64180SILENCER ASSY, BACK PANEL
sub64190-26020
64811GLASS, BACK WINDOW
7751
9011906080
main90119-06080
9015950033
main90159-50033
9017905006
main90179-05006
9095001027
main90950-01027
9333915016
main93339-15016
28 parts on this diagram · 1 diagram in section
