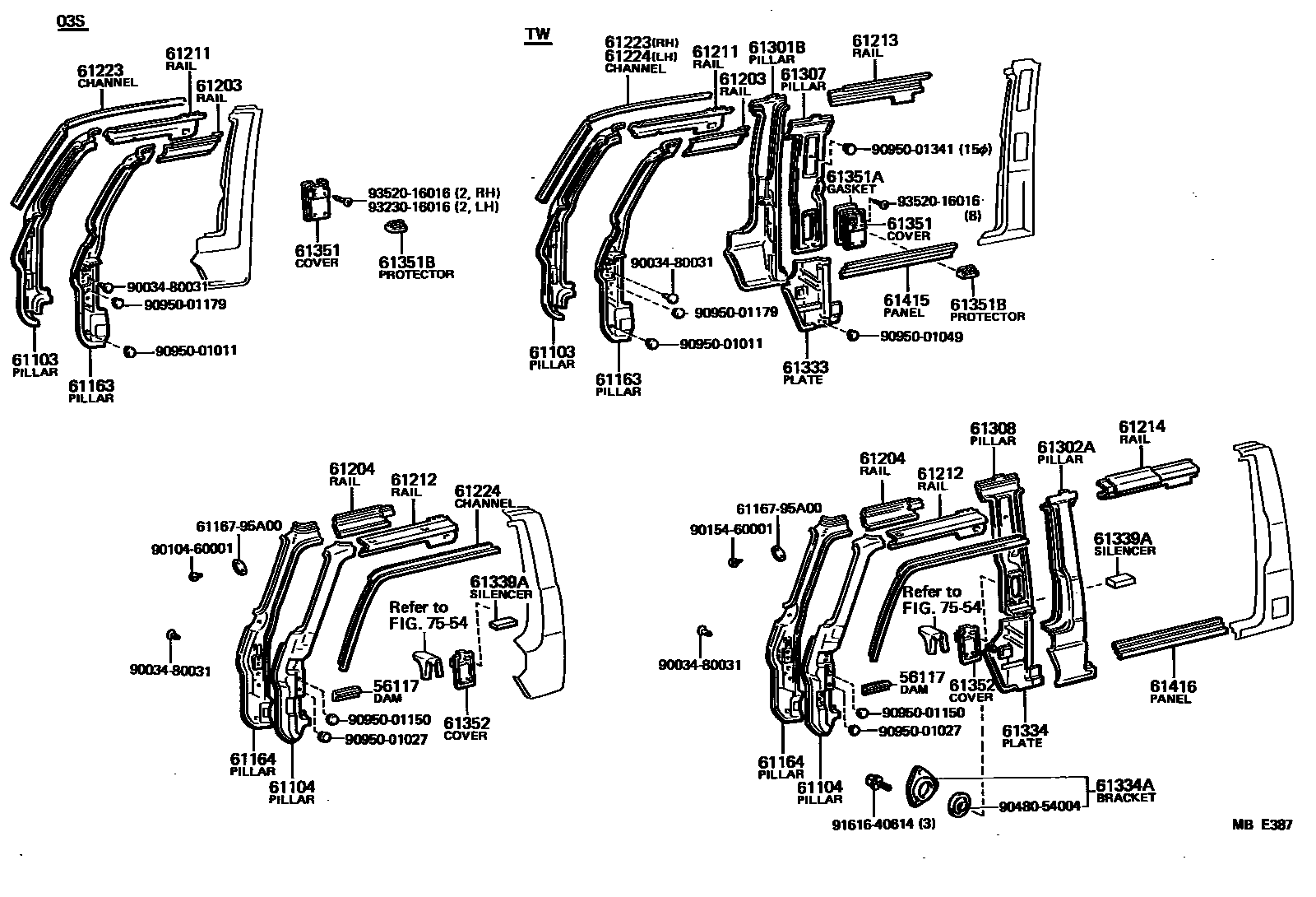

SIDE MEMBER
56117DAM, FRONT PILLAR, OUTER
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
61163PILLAR, FRONT BODY, INNER RH
61164PILLAR, FRONT BODY, INNER LH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61213RAIL, ROOF SIDE, OUTER REAR RH
61214RAIL, ROOF SIDE, OUTER REAR LH
61223CHANNEL, ROOF DRIP, FRONT RH
61224CHANNEL, ROOF DRIP, FRONT LH
61301BPILLAR, CENTER BODY, OUTER RH
61302APILLAR, CENTER BODY, OUTER LH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61333PLATE, CENTER PILLAR, RH
61334PLATE, CENTER PILLAR, LH
61334ABRACKET, AIR CLEANER INLET SEAL
61339ASILENCER, PILLAR INNER
RH
LH
LH
RH
61351COVER, CENTER BODY, INNER RH
W/*ELR
61351AGASKET(FOR CENTER BODY INNER COVER)
61351BPROTECTOR(FOR CENTER BODY INNER COVER)
61352COVER, CENTER BODY, INNER, LH
W/*ELR
61415PANEL, ROCKER, REAR RH
61416PANEL, ROCKER, REAR LH
7554
6116795A00BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH
main61167-95A00
9003480031
main90034-80031
9010460001
main90104-60001
9015460001
main90154-60001
9048054004
main90480-54004
9095001011
main90950-01011
9095001027
main90950-01027
9095001049
main90950-01049
9095001150
main90950-01150
9095001179
main90950-01179
9095001341
main90950-01341
9161640614
main91616-40614
9323016016
main93230-16016
9352016016
main93520-16016
42 parts on this diagram · 1 diagram in section
