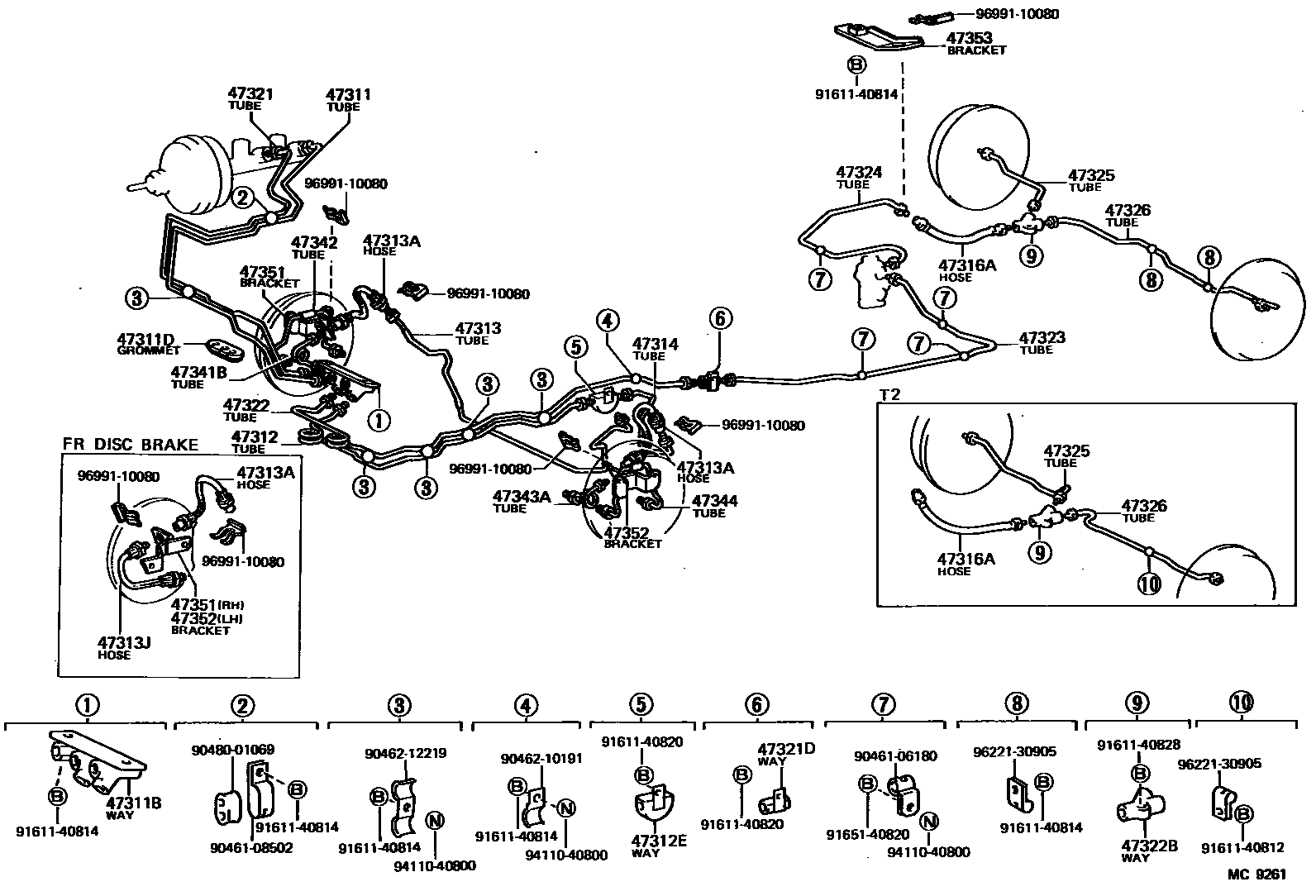

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-26150iLH24,RH24198211-198507

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10028iLH24,RH24198211-198507

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-01030iLH24,RH24198211-198507

47312TUBE, FRONT BRAKE, NO.2

main47312-26160iLH24,RH24198211-198507

sub47312-26151

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10146iLH24,RH24198211-198507

47313TUBE, FRONT BRAKE, NO.3

main47313-26080iLH24,RH24198211-198507

sub47313-26070

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02348×2iLH24,RH24..ST198211-198507

FR DISC BRAKE

main90947-02350×2iLH24,RH24198211-198507

FR DRUM BRAKE

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main96960-32205×2iLH24,RH24..ST198211-198507

FR DISC BRAKE

47314TUBE, FRONT BRAKE, NO.4

main47314-26070iLH24,RH24198211-198507

sub47314-26060

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96910-33805iLH24,RH24..ST198211-198507

main96910-34205iLH24,RH24..WT198211-198507

47321TUBE, REAR BRAKE, NO.1

main47321-26060iLH24,RH24198211-198507

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10006iLH24,RH24198211-198507

47322TUBE, REAR BRAKE, NO.2

main47322-26080iLH24,RH24198211-198507

sub47322-26071

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10147iLH24,RH24198211-198507

47323TUBE, REAR BRAKE, NO.3

main47323-26120iLH24,RH24198211-198507

47324TUBE, REAR BRAKE, NO.4

main47324-26060iLH24,RH24198211-198507

sub47324-26080

47325TUBE, REAR BRAKE, NO.5

main47325-26060iLH24,RH24..WT198211-198507

main47325-26120iLH24,RH24..ST198211-198507

sub47325-26130

47326TUBE, REAR BRAKE, NO.6

main47326-26040iLH24,RH24..WT198211-198507

main47326-26100iLH24,RH24..ST198211-198507

sub47326-26110

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-26020iLH24,RH24198211-198507

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-26010iLH24,RH24198211-198507

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-26010iLH24,RH24198211-198507

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-26010iLH24,RH24198211-198507

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-26030iLH24,RH24198211-198507

FR DRUM BRAKE

main47351-26042iLH24,RH24..ST198211-198507

FR DISC BRAKE

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-26030iLH24,RH24198211-198507

FR DRUM BRAKE

main47352-26042iLH24,RH24..ST198211-198507

FR DISC BRAKE

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47355-26030iLH24,RH24198211-198507

9046106180

main90461-06180

9046108502

main90461-08502

9046210191

main90462-10191

9046212219

main90462-12219

9048001069

main90480-01069

9161140812

main91611-40812

9161140814

main91611-40814

9161140820

main91611-40820

9161140828

main91611-40828

9165140820

main91651-40820

9411040800

main94110-40800

9622130905

main96221-30905

9699110080

main96991-10080

38 parts on this diagram · 2 diagrams in section
