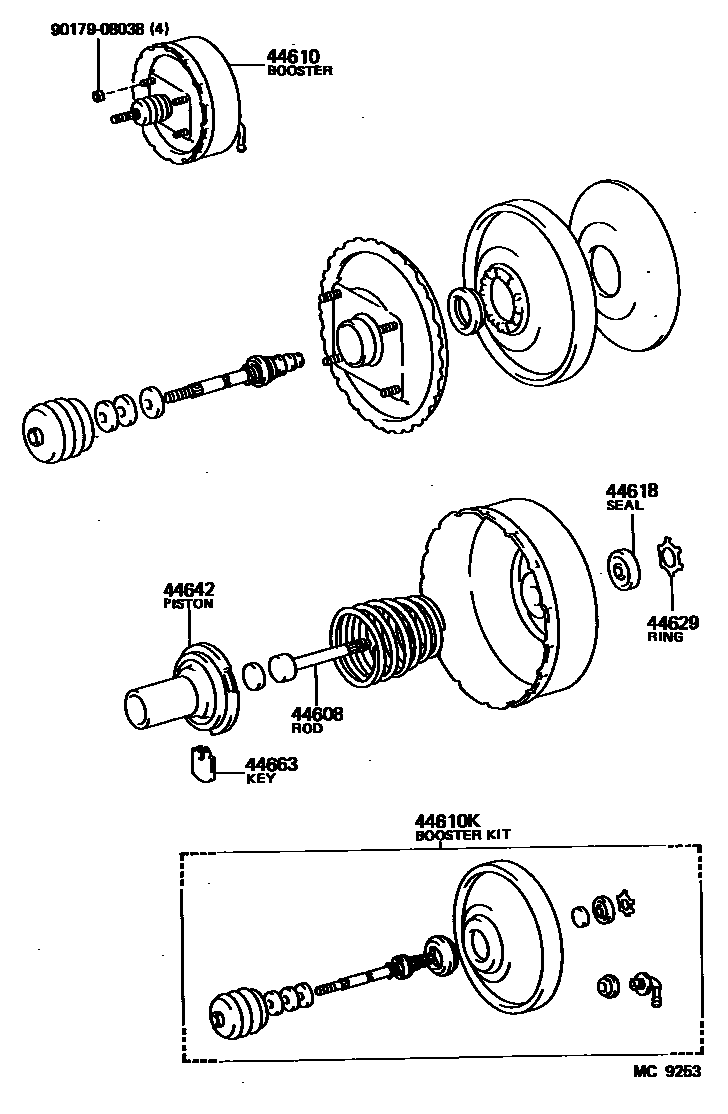

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iLH24,RH24198410-198507

main44606-32010iLH24,RH24198211-198410

44610BOOSTER ASSY, BRAKE

main44610-26140iRH24..ST198211-198507

FR DISC BRAKE

sub44610-26260

main44610-26150iLH24..ST198211-198507

FR DISC BRAKE

sub44610-26260

main44610-26160iRH24198211-198507

sub44610-26170

main44610-26170iLH24198211-198507

44610KBOOSTER KIT, BRAKE

main04443-26100iRH24..ST198211-198507

FR DISK BRAKE

main04443-26110iLH24..ST198211-198507

FR DISK BRAKE

main04443-26120iRH24198211-198507

FR DRUM BRAKE

main04443-26130iLH24198211-198507

FR DRUM BRAKE

44618SEAL, BOOSTER BODY

main44621-28120iLH24,RH24198211-198507

44629RING, CIRCULAR INTERNAL

main44628-28120iLH24,RH24198211-198507

44642PISTON, BRAKE BOOSTER

main44642-27120iLH24,RH24198211-198507

main44642-32010iLH24,RH24..ST198211-198507

FR DISC BRAKE

44663KEY, VALVE STOPPER

main44635-28120iLH24,RH24198211-198507

9017908038

main90179-08038

8 parts on this diagram · 3 diagrams in section
