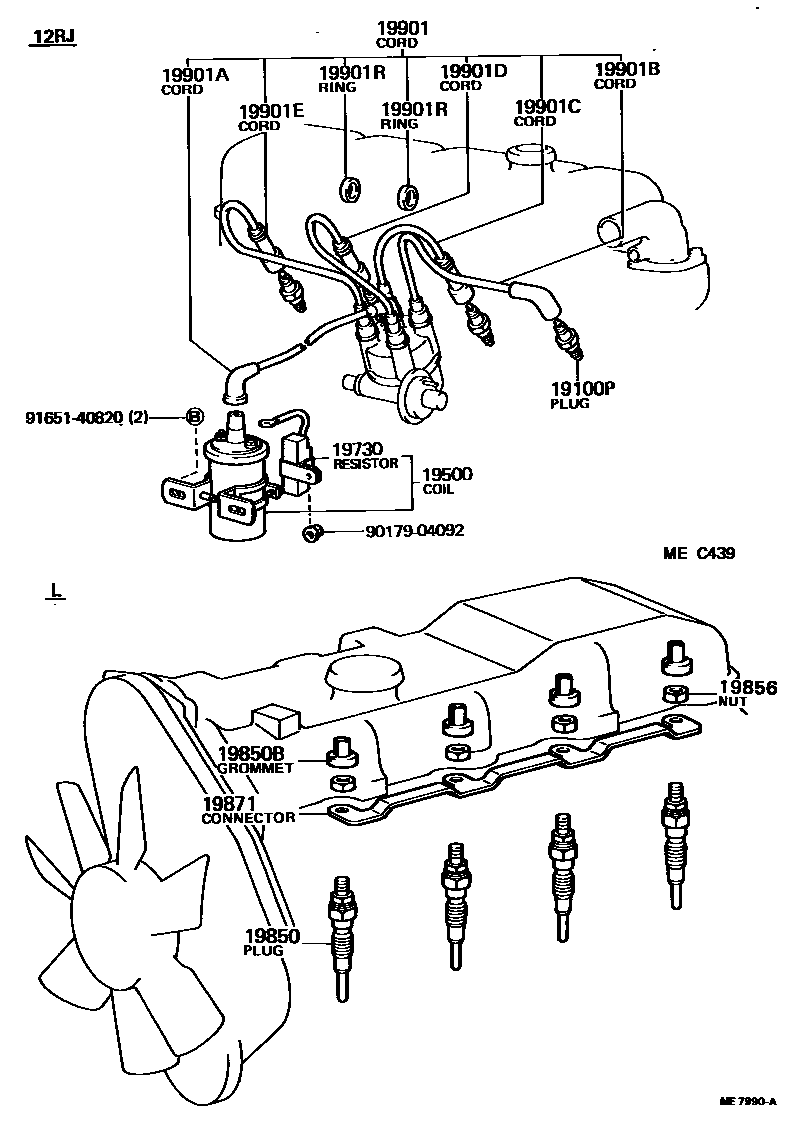

IGNITION COIL & SPARK PLUG / GLOW PLUG
19500COIL ASSY, IGNITION
sub90919-02111
19730RESISTOR, IGNITION COIL
sub90919-04027
19850PLUG ASSY, GLOW
19850BGROMMET, SCREW(FOR GLOW PLUG)
19856NUT, CONNECTING(FOR GLOW PLUG)
19871CONNECTOR, GLOW PLUG NO.1
sub19871-54011
19901CORD SET, COIL & SPARK, W/RESISTIVE
19901ACORD, COIL RESISTIVE
sub90919-13295
19901BCORD, SPARK PLUG RESISTIVE, NO.1
19901CCORD, SPARK PLUG RESISTIVE, NO.2
19901DCORD, SPARK PLUG RESISTIVE, NO.3
19901ECORD, SPARK PLUG RESISTIVE, NO.4
19901RRING, RUBBER SPARK PLUG RESISTIVE CORD
9017904092
main90179-04092
9165140820
main91651-40820
16 parts on this diagram · 1 diagram in section
