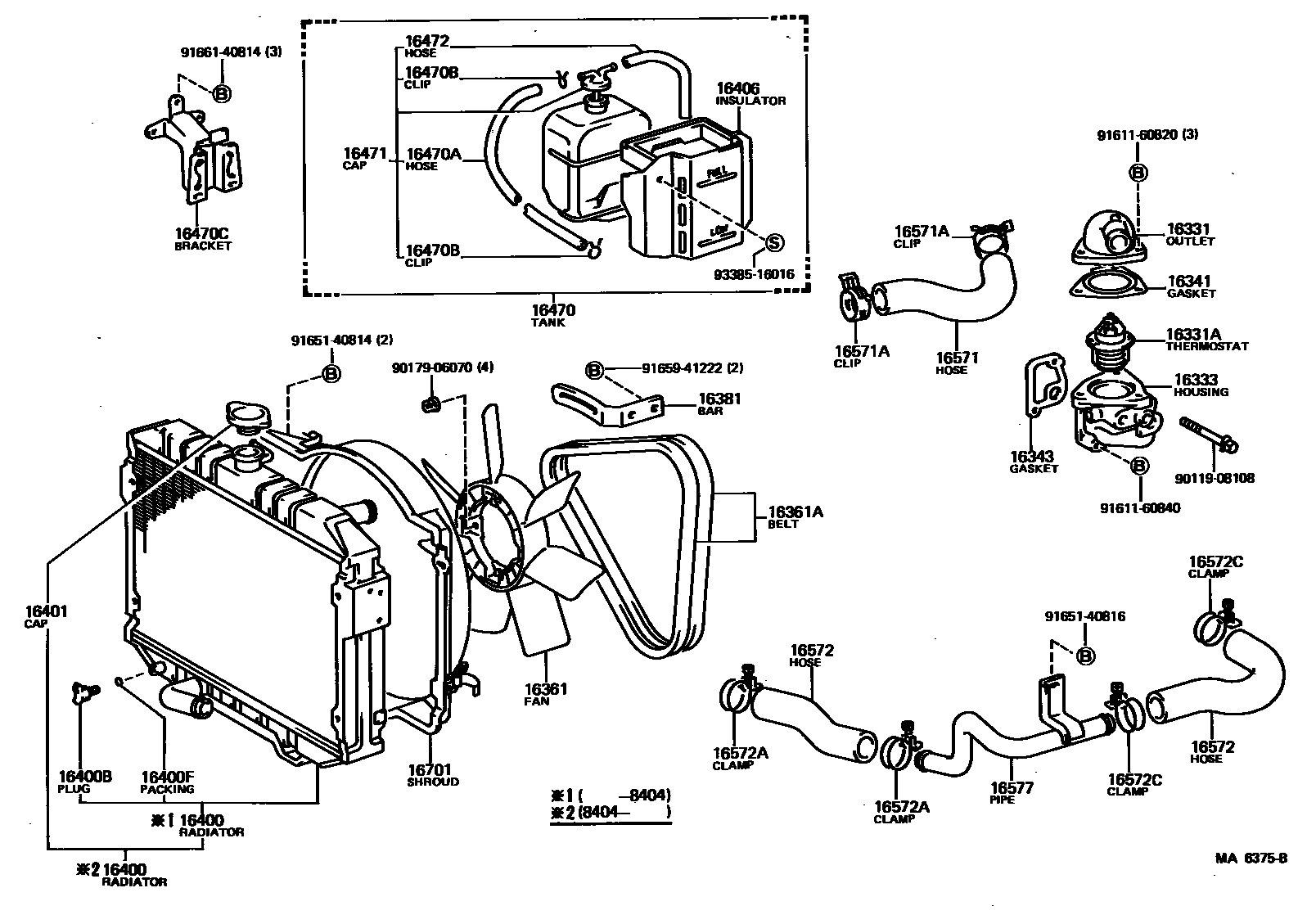

RADIATOR & WATER OUTLET

0001 1 0002 1

16331OUTLET, WATER

main16331-31082i12RJ..RH24198211-198507

main16331-54030iL..LH24198211-198507

16331ATHERMOSTAT

main90916-03054i12RJ..RH24198211-198507

sub90916-03083

main90916-03055i12RJ..RH24198211-198507

sub90916-03078

main90916-03062iL..LH24198211-198507

sub90916-03072

16333HOUSING, WATER OUTLET

main16333-54050iL..LH24198211-198507

16341GASKET, WATER OUTLET

main16341-38011i12RJ..RH24198211-198507

main16341-54010iL..LH24198211-198304

main16341-54011iL..LH24198304-198507

sub16341-54030

16343GASKET, WATER OUTLET HOUSING

main16343-54011iL..LH24198211-198507

sub16343-54021

16361FAN

main16361-34030iL..LH24198211-198507

main16361-44040i12RJ..RH24198211-198507

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132iL..LH24198211-198507

DOUBLE V BELTS

sub90916-02281

main99332-00890i12RJ..RH24198211-198507

30A ALTERNATOR

main99332-00900i12RJ..RH24..T2,T3198212-198507

40A ALTERNATOR

16381BAR, FAN BELT ADJUSTING

main16381-30021i12RJ..RH24..T2,T3198212-198507

40A ALTERNATOR

main16381-31012i12RJ..RH24198211-198507

30A ALTERNATOR

main16381-54011iL..LH24198211-198507

16400RADIATOR ASSY

main16400-31290i12RJ..RH24198211-198507

main16400-54200iL..LH24198404-198507

main16410-54200iL..LH24198211-198404

16400BPLUG, RADIATOR DRAIN COCK

main16417-24051i12RJ..RH24198211-198507

main16417-24200iL..LH24198211-198507

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051i12RJ..RH24198211-198507

main16418-24200iL..LH24198211-198507

16401CAP SUB-ASSY, RADIATOR

main16401-41021i12RJ..RH24198211-198507

16406INSULATOR SUB-ASSY, RESERVE TANK

main16406-95A00iL..LH24198211-198507

16470TANK ASSY, RADIATOR RESERVE

main16470-95A00i12RJ..RH24198211-198507

main16470-95A09iL..LH24198211-198507

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12021iL..LH24198211-198507

sub90099-33534

main90445-12078i12RJ..RH24198211-198507

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i12RJ..RH24198211-198507

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-95A01iL..LH24198211-198507

16471CAP SUB-ASSY, RESERVE TANK

main16405-95A05iL..LH24198211-198507

main16471-34030i12RJ..RH24198211-198507

16472HOSE, BREATHER

main85338-22020iL..LH24198211-198507

16571HOSE, RADIATOR, INLET

main16571-54110iL..LH24198211-198507

main16572-31120i12RJ..RH24198211-198507

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001×2i12RJ..RH24198211-198507

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16571-31041i12RJ..RH24198211-198507

main16571-31060i12RJ..RH24198211-198507

W/COOLER

main16572-54030iL..LH24198211-198507

WATER PUMP SIDE

main16573-54020iL..LH24198211-198507

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10460×2i12RJ..RH24198211-198507

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10460iL..LH24198211-198507

PIPE SIDE

main96111-10500iL..LH24198211-198507

WATER PUMP SIDE

16577PIPE, RADIATOR, NO.7

main16577-54050iL..LH24198211-198507

16701SHROUD SUB-ASSY, FAN

main16711-31121i12RJ..RH24198211-198507

sub16711-31120

main16711-54050iL..LH24198211-198507

9011908108

main90119-08108

9017906070

main90179-06070

9161160820

main91611-60820

9161160840

main91611-60840

9165140814

main91651-40814

9165140816

main91651-40816

9165941222

main91659-41222

9166140814

main91661-40814

9338516016

main93385-16016

35 parts on this diagram · 2 diagrams in section
