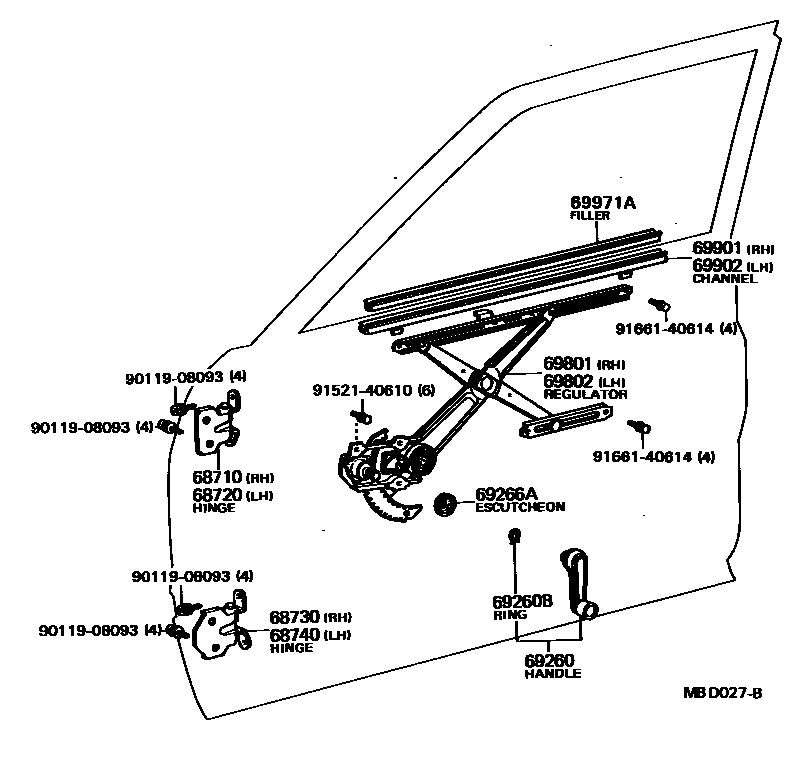

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14020iRK11#197903-198603

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14020iRK11#197903-198603

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14020iRK11#197903-198603

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14020iRK11#197903-198603

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01iRK11#197903-198308

BLACK,BLACK

sub69260-10040

sub69260-16010

main69260-10040-05iRK111198308-198603

BEIGE,BEIGE

sub69260-10040

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iRK11#197903-198603

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010iRK11#197903-198603

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-89105iRK11#197903-198603

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-89105iRK11#197903-198603

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-89105iRK11#197903-198603

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-89105iRK11#197903-198603

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-95110iRK11#197903-198603

sub69971-90K00

9011908093

main90119-08093

9152140610

main91521-40610

9166140614

main91661-40614

15 parts on this diagram · 1 diagram in section
