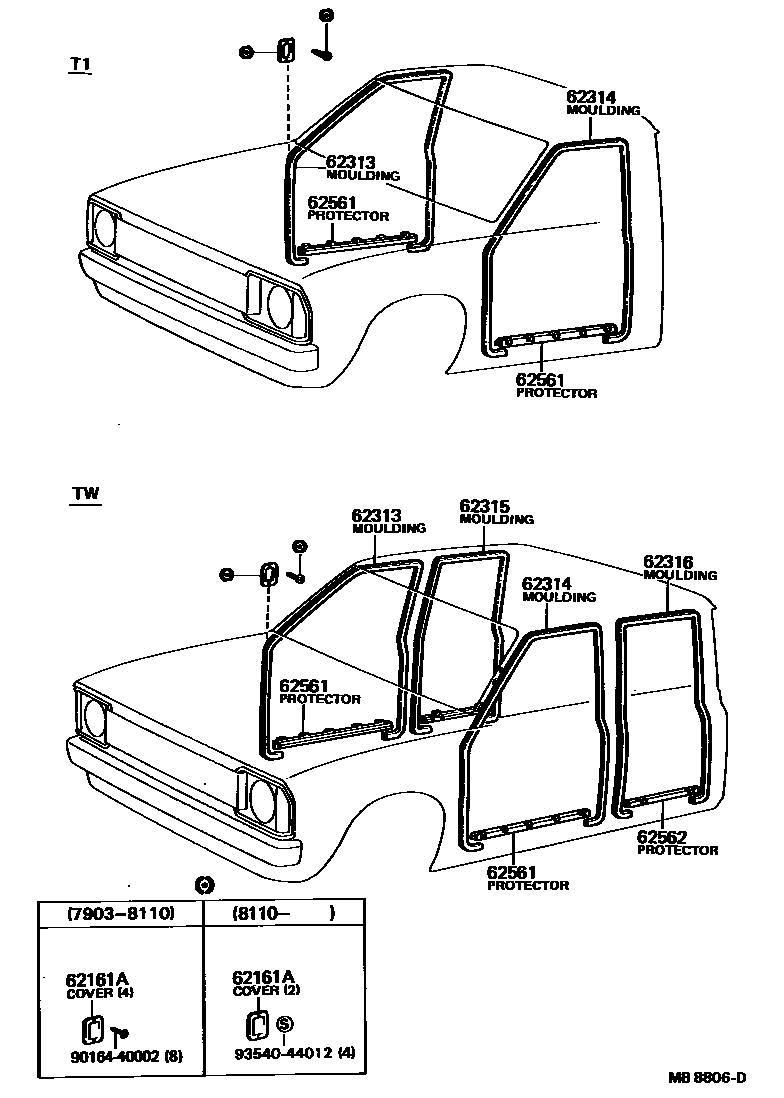

INSIDE TRIM BOARD

62161ACOVER, COWL SIDE TRIM SERVICE HOLE

main62161-89101iRK110197903-198603

62313MOULDING, FRONT DOOR OPENING TRIM, RH

main62313-89105-01iRK11#197903-198308

BLACK,BLACK

main62313-89105-06iRK111198308-198603

BROWN,BROWN

62314MOULDING, FRONT DOOR OPENING TRIM, LH

main62313-89105-01iRK11#197903-198308

BLACK,BLACK

main62313-89105-06iRK111198308-198603

BROWN,BROWN

62315MOULDING, REAR DOOR OPENING TRIM, RH

main62313-89105-01iRK11#..TW198107-198308

BLACK,BLACK

main62313-89105-06iRK111..TW198308-198507

BROWN,BROWN

main62333-89101-01iRK110..TW197903-198107

BLACK,BLACK

62316MOULDING, REAR DOOR OPENING TRIM, LH

main62313-89105-01iRK11#..TW198107-198308

BLACK,BLACK

main62313-89105-06iRK111..TW198308-198507

BROWN,BROWN

main62333-89101-01iRK110..TW197903-198107

BLACK,BLACK

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-89101iRK11#197903-198603

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-89101iRK11#..TW197903-198507

9016440002

main90164-40002

9354044012

main93540-44012

9 parts on this diagram · 1 diagram in section
