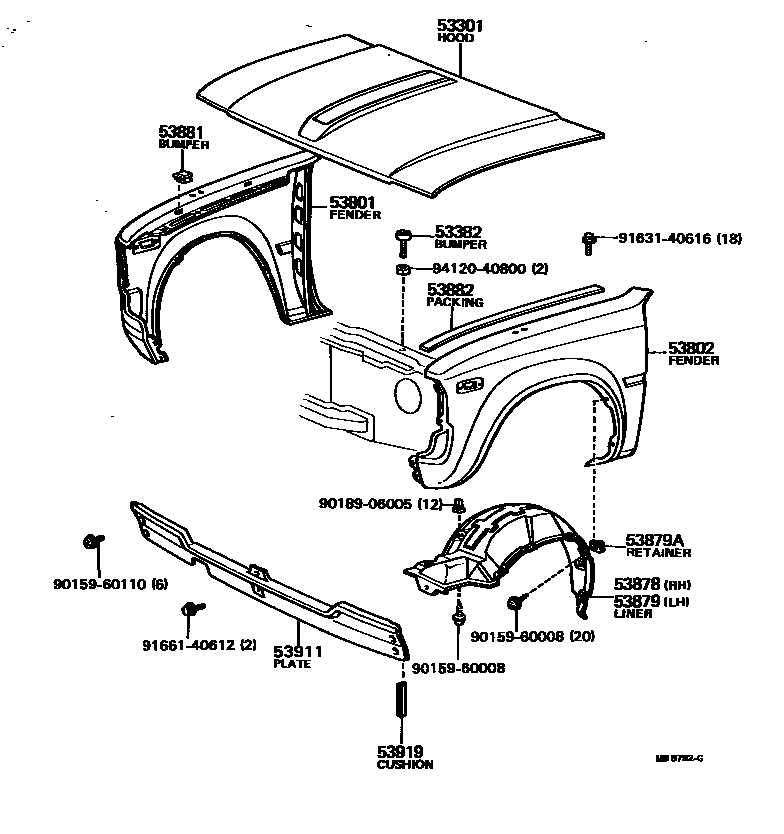

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-89115iRK11#197903-198601

main53301-92300iRK111198601-198603

53382BUMPER, HOOD, FRONT

main53382-20011×2iRK11#197903-198603

sub53382-90A00

53801FENDER SUB-ASSY, FRONT RH

main53801-92300iRK111198601-198603

main53801-95111iRK11#197903-198601

53802FENDER SUB-ASSY, FRONT LH

main53802-92300iRK111198601-198603

main53802-95115iRK11#197903-198601

53878LINER, FRONT FENDER, RH

main53875-95111iRK11#197903-198603

53879LINER, FRONT FENDER, LH

main53876-95111iRK11#197903-198603

53879ARETAINER, FRONT FENDER LINER

main53879-22010×12iRK11#197903-198603

53881BUMPER, FENDER TO HOOD

main53384-89101×4iRK11#197903-198603

53882PACKING, FRONT FENDER MAIN

main53882-89103×2iRK11#197903-198603

53911PANEL, FRONT VALANCE

main53161-95110iRK110197903-198008

main53161-95112iRK11#198008-198603

53919CUSHION, VALANCE PANEL

main53919-95110×2iRK11#197903-198603

9015960008

main90159-60008

9015960110

main90159-60110

9018906005

main90189-06005

9163140616

main91631-40616

9166140612

main91661-40612

9412040800

main94120-40800

17 parts on this diagram · 1 diagram in section
