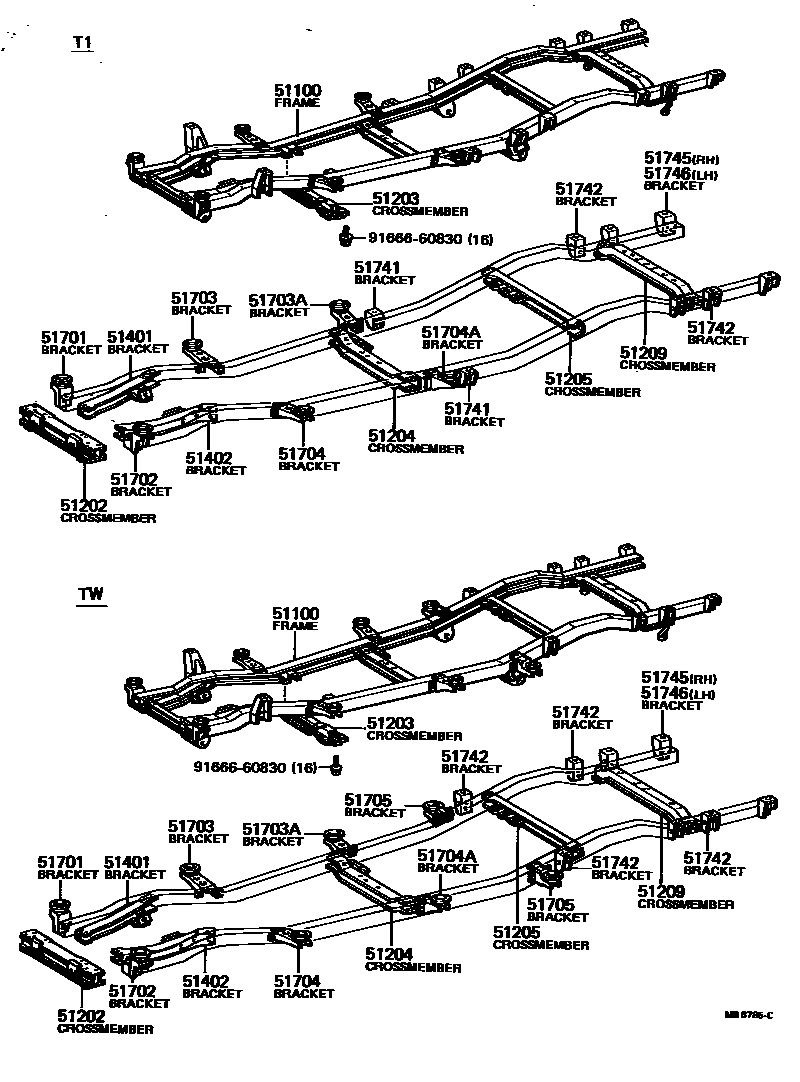

FRAME
51202CROSSMEMBER SUB-ASSY, FRAME, NO.1
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51209CROSSMEMBER SUB-ASSY, FRAME, NO.8
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703ABRACKET SUB-ASSY, CAB REAR MOUNTING, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704ABRACKET SUB-ASSY, CAB REAR MOUNTING, LH
51705BRACKET, REAR BODY MOUNTING, NO.5
RH
LH
51741BRACKET, REAR BODY MOUNTING, NO.1
51742BRACKET, BODY MOUNTING, NO.2
51745BRACKET, BODY MOUNTING, NO.5
51746BRACKET, BODY MOUNTING, NO.6
9166660830
main91666-60830
20 parts on this diagram · 1 diagram in section
