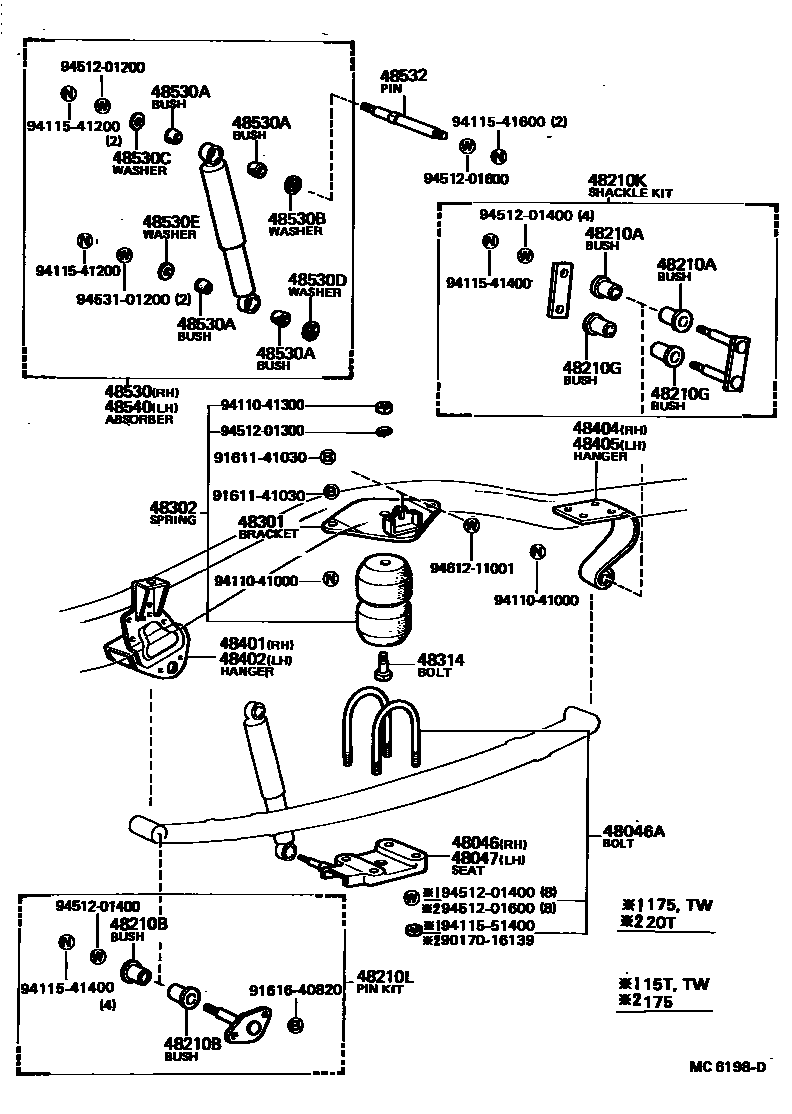

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35060iRK11#..TW;RK11#..175197903-198507

main48046-35070iRK11#..20T197903-198603

48046ABOLT, U(FOR REAR SPRING)

main90118-14177×4iRK11#..TW;RK11#..175197903-198507

sub90117-14012

main90118-16178×4iRK11#..20T197903-198603

sub90117-16013

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-35060iRK11#..TW;RK11#..175197903-198507

main48047-35070iRK11#..20T197903-198603

48210SPRING ASSY, REAR RH

main48210-35190iRK11#197903-198603

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18025×4iRK11#197903-198603

48210BBUSH(FOR REAR SPRING PIN)

main90385-18025×4iRK11#197903-198603

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18025×4iRK11#197903-198603

48210KSHACKLE KIT, REAR SPRING

main04483-35020×2iRK110197903-198012

main04483-35030×2iRK11#198012-198603

48210LPIN KIT, REAR SPRING

main04484-35020×2iRK110197903-198012

main04484-35040×2iRK11#198012-198603

48301BRACKET SUB-ASSY, HOLLOW SPRING

main48301-35010×2iRK11#197903-198603

sub48301-35020

48302SPRING SUB-ASSY, HOLLOW

main48302-39035×2iRK11#..TW;RK11#..175197903-198507

main48302-39045×2iRK11#..20T197903-198603

48314BOLT, HOLLOW SPRING SET

main48314-35010×2iRK11#197903-198603

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48404-35010iRK11#..T1197903-198603

main48404-35020iRK11#..TW197903-198507

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48404-35020iRK11#..TW197903-198507

main48407-35010iRK11#..T1197903-198603

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48405-35010iRK11#197903-198603

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48406-35010iRK11#197903-198603

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39365iRK11#197903-198603

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007×8iRK11#197903-198603

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004×2iRK11#197903-198603

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03003×2iRK11#197903-198603

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03004×2iRK11#197903-198603

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03003×2iRK11#197903-198603

48532PIN, REAR SHOCK ABSORBER PIVOT

main48532-35030×2iRK11#197903-198603

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39365iRK11#197903-198603

9017016139

main90170-16139

9161141030

main91611-41030

9161640820

main91616-40820

9411041000

main94110-41000

9411041300

main94110-41300

9411541200

main94115-41200

9411541400

main94115-41400

9411541600

main94115-41600

9411551400

main94115-51400

9451201200

main94512-01200

9451201300

main94512-01300

9451201400

main94512-01400

9451201600

main94512-01600

9453101200

main94531-01200

9461211001

main94612-11001

39 parts on this diagram · 2 diagrams in section
