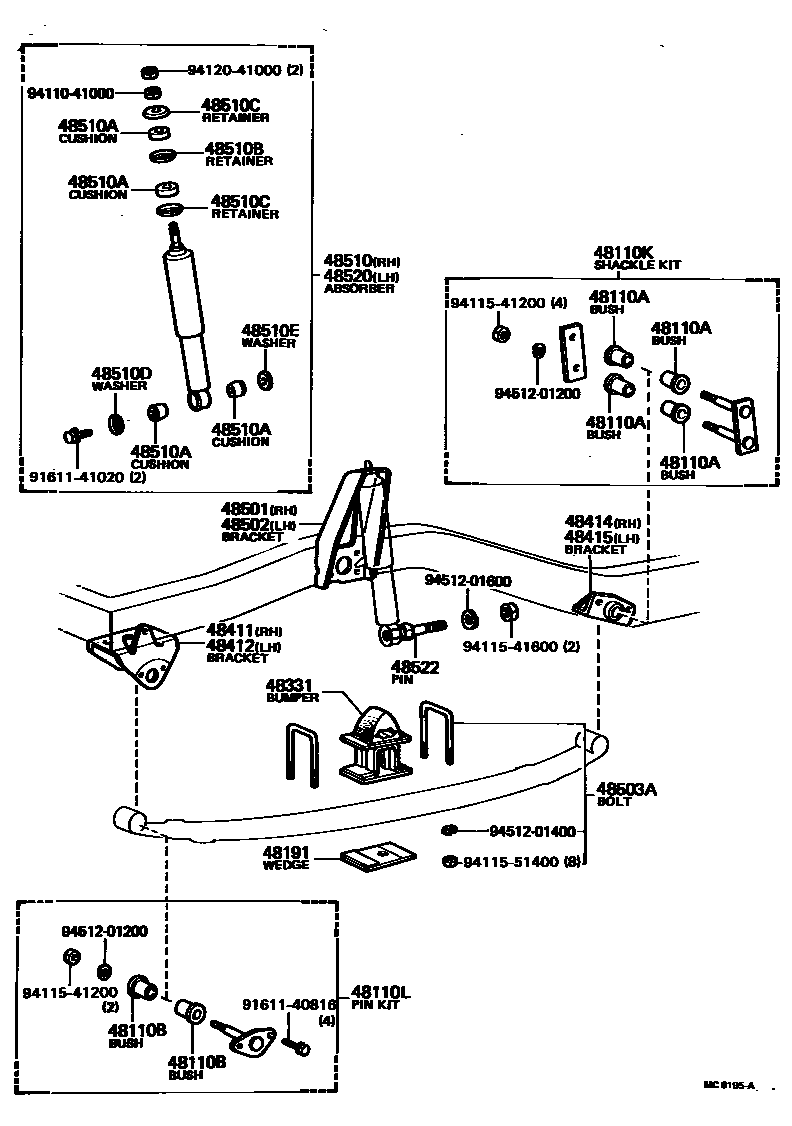

FRONT SPRING & SHOCK ABSORBER
48110SPRING ASSY, FRONT, RH
48110ABUSH(FOR FRONT SPRING SHACKLE)
LWR
UPR
48110BBUSH(FOR FRONT SPRING PIN)
48110KSHACKLE KIT, FRONT SPRING
48110LPIN KIT, FRONT SPRING
48191WEDGE, CASTER(FOR FRONT LEAF SPRING)
48331BUMPER, FRONT SPRING, NO.1
48411BRACKET, FRONT SPRING(FOR FRONT RH)
48412BRACKET, FRONT SPRING(FOR FRONT LH)
48414BRACKET, FRONT SPRING(FOR REAR RH)
48415BRACKET, FRONT SPRING(FOR REAR LH)
48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH
48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH
48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
48510ABSORBER ASSY, SHOCK, FRONT RH
48510ACUSHION, FRONT SHOCK ABSORBER
ABSORBER X I BEAM
ABSORBER X UPR BRACKET
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
48520ABSORBER ASSY, SHOCK, FRONT LH
48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT
9161140816
main91611-40816
9161141020
main91611-41020
9411041000
main94110-41000
9411541200
main94115-41200
9411541600
main94115-41600
9411551400
main94115-51400
9412041000
main94120-41000
9451201200
main94512-01200
9451201400
main94512-01400
9451201600
main94512-01600
32 parts on this diagram · 3 diagrams in section
