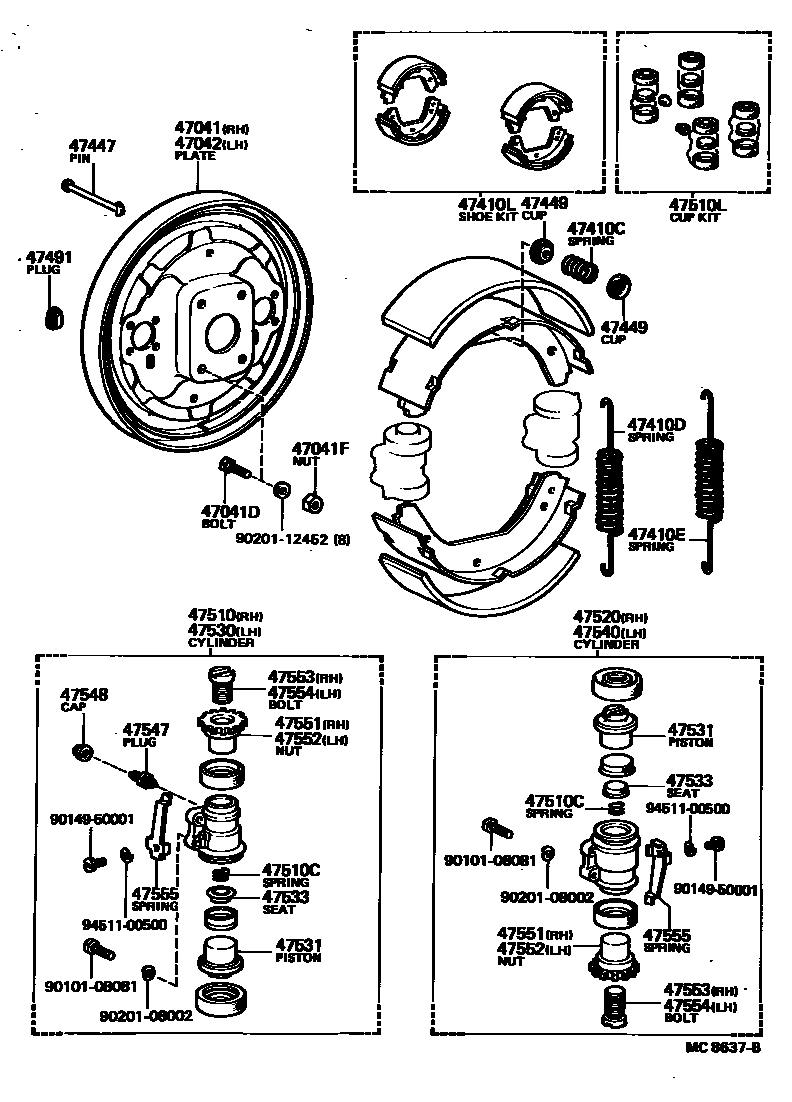

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-35060i197903-198603

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12021×8i197903-198603

sub90101-12175

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94115-71200×8i197903-198603

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-35050i197903-198603

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20756×4i197903-198603

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26009×2i197903-198603

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26009×2i197903-198603

47410LSHOE KIT, FRONT BRAKE

main04494-25020i197903-198603

sub04494-25060

main04496-25020i197903-198603

REBUILT

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-20010×4i197903-198603

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020×8i197903-198603

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010×4i197903-198603

sub47491-36020

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-39155i197903-198603

sub47510-35070

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122×4i197903-198603

47510LCUP KIT, FRONT WHEEL CYLINDER

main04905-35060i197903-198603

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-39115i197903-198603

sub47520-35040

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-39155i197903-198603

sub47530-35070

47531PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)

main47531-35030×4i197903-198603

sub47531-35090

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-30011×4i197903-198603

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-39115i197903-198603

sub47540-35040

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010×2i197903-198603

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2i197903-198603

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-25050×2i197903-198603

LH SCREW

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-25050×2i197903-198603

RH SCREW

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36021×2i197903-198603

LH SCREW

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36021×2i197903-198603

RH SCREW

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-25010×4i197903-198603

9010108081

main90101-08081

9014950001

main90149-50001

9020108002

main90201-08002

9020112452

main90201-12452

9451100500

main94511-00500

31 parts on this diagram · 1 diagram in section
