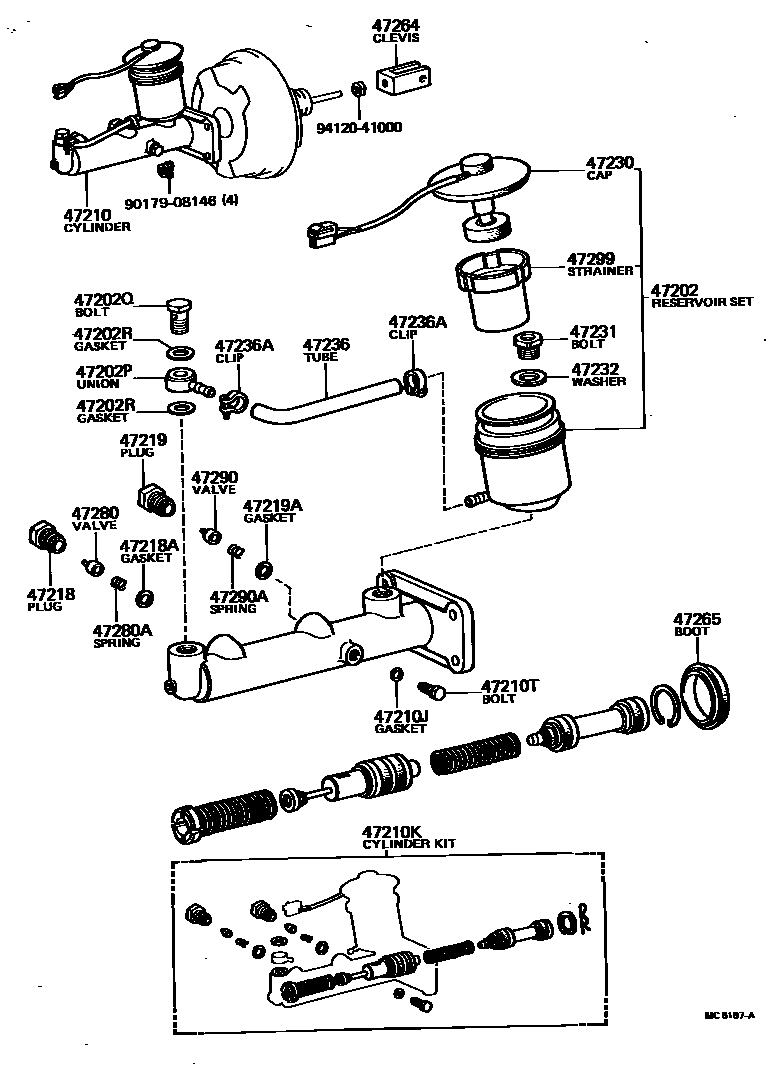

BRAKE MASTER CYLINDER

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-35060i197903-198603

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10003i197903-198603

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16002i197903-198603

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16242×2i197903-198603

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-35190i197903-198504

main47201-35241i198504-198603

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104i197903-198603

47210KCYLINDER KIT, BRAKE MASTER

main04493-35080i197903-198504

main04493-35090i198504-198603

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077i197903-198603

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-25010i197903-198603

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-15001i197903-198603

47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)

main47218-25010i197903-198603

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-15001i197903-198603

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12011i197903-198603

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010i197903-198603

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010i197903-198603

47236TUBE, RESERVOIR BRAKE

main47234-35020i197903-198603

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001×2i198504-198603

sub96134-51500

main90467-16141×2i197903-198504

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-26020i197903-198603

47265BOOT, MASTER CYLINDER

main47265-35030i197903-198603

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-30020i197903-198603

47280ASPRING, COMPRESSION

main90504-05004i197903-198603

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47281-30020i197903-198603

47290ASPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)

main90504-05004i197903-198603

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-14010i198107-198603

main47299-20010i197903-198107

9017908146

main90179-08146

9412041000

main94120-41000

26 parts on this diagram · 1 diagram in section
