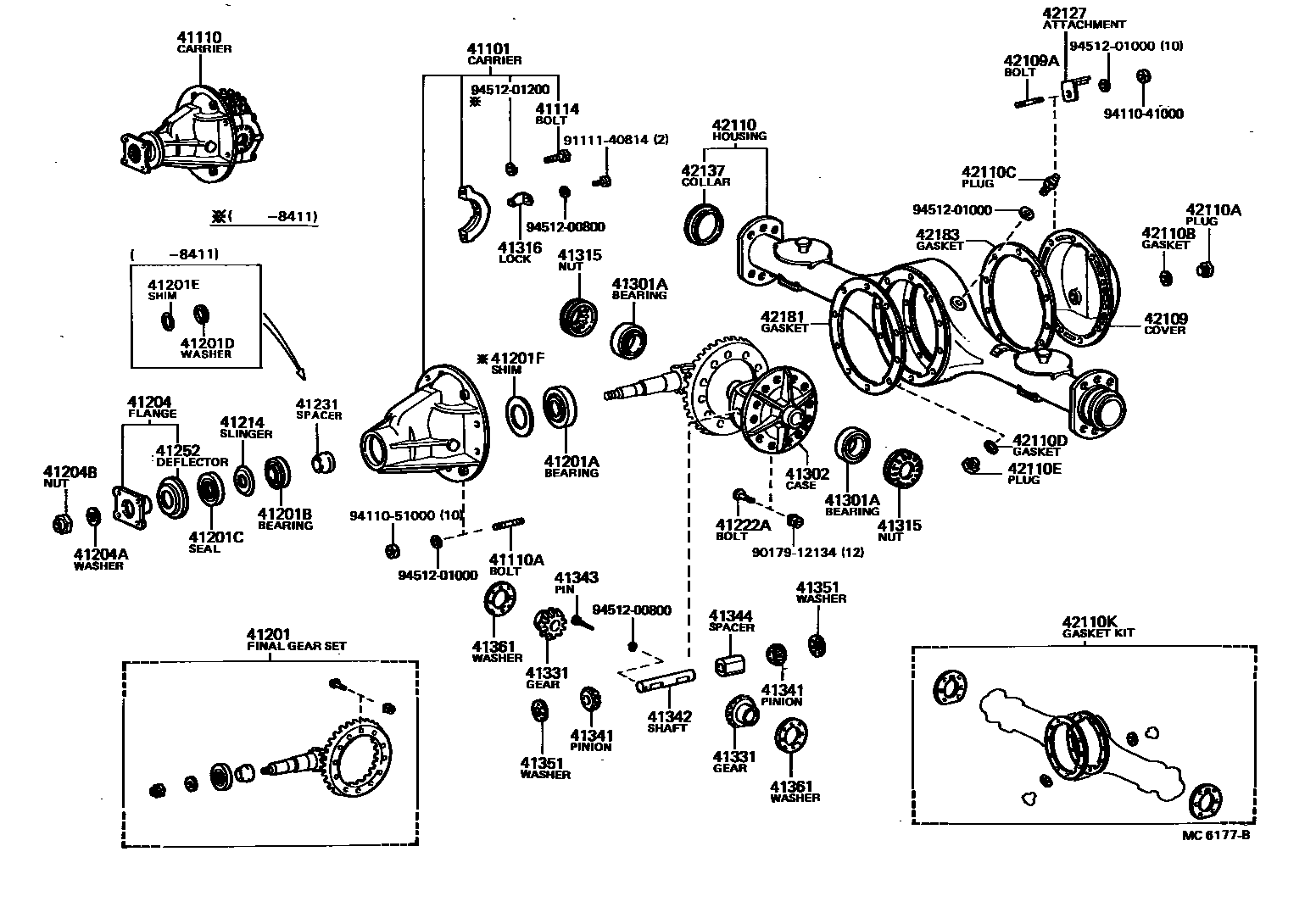

REAR AXLE HOUSING & DIFFERENTIAL
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
sub41201-39785
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
sub90564-40004
sub90564-40007
sub90564-40009
sub90564-40011
sub90564-40013
sub90564-40015
sub90564-40017
sub90564-40019
sub90564-40021
sub90564-40023
sub90564-40025
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
41341PINION, REAR DIFFERENTIAL
sub41341-55013
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41344SPACER, DIFFERENTIAL PINION SHAFT
T=29.8
T=30.2
T=30.6
T=29.0
T=29.4
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
sub41361-60011
sub41361-60021
sub41361-60031
sub41361-60041
42109COVER SUB-ASSY, REAR AXLE HOUSING
42110HOUSING ASSY, REAR AXLE
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42127ATTACHMENT, BRAKE TUBE CLAMP, NO.1
42137COLLAR, REAR AXLE HOUSING SIDE
42183GASKET, REAR AXLE HOUSING COVER
9017912134
main90179-12134
9111140814
main91111-40814
9411041000
main94110-41000
9411051000
main94110-51000
9451200800
main94512-00800
9451201000
main94512-01000
9451201200
main94512-01200
50 parts on this diagram · 2 diagrams in section
