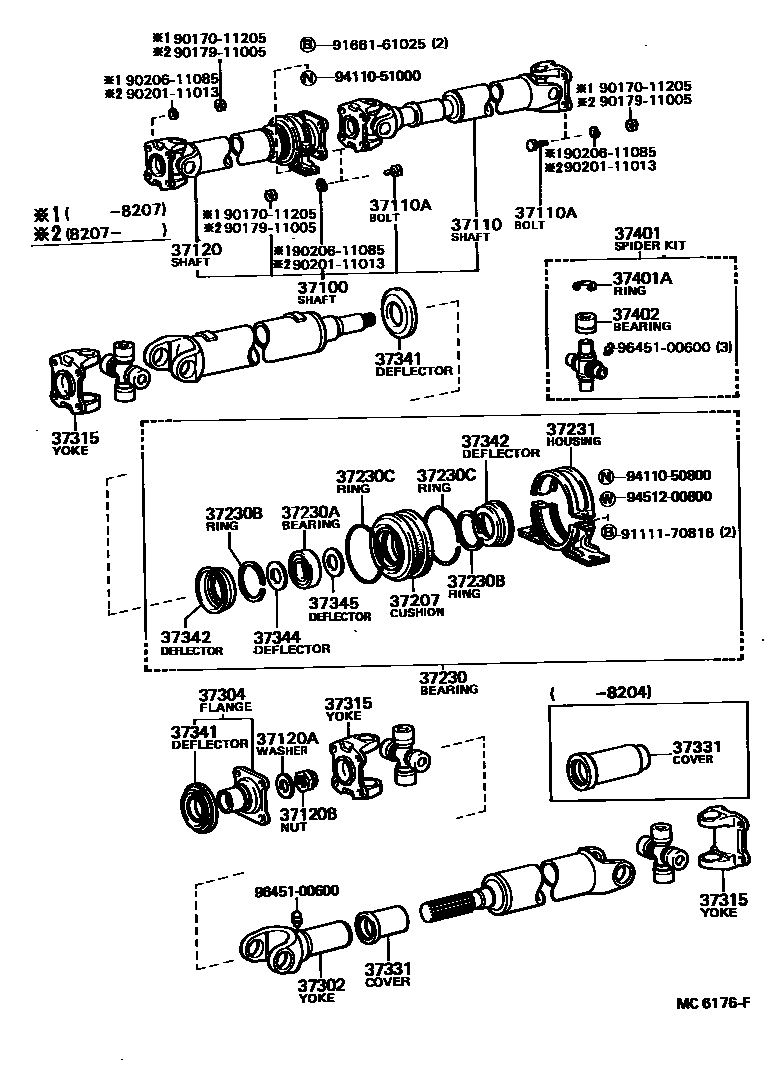

PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
L=1757.5
L=1757.5
L=1735.5
L=1735.5
37110SHAFT ASSY, PROPELLER
L=942
L=942
L=920
L=920
37120SHAFT ASSY, PROPELLER INTERMEDIATE
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37207CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230ABEARING, NO.1 (FOR CENTER SUPPORT)
37230BRING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING)
37231HOUSING, CENTER SUPPORT BEARING
sub37231-36021
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37304FLANGE SUB-ASSY, UNIVERSAL JOINT
37331COVER, SLIDING SHAFT DUST
37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37344DEFLECTOR, PROPELLER SHAFT DUST, NO.3
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
9017011205
main90170-11205
9017911005
main90179-11005
9020111013
main90201-11013
9020611085
main90206-11085
9111170816
main91111-70816
9166161025
main91661-61025
9411050800
main94110-50800
9411051000
main94110-51000
9451200800
main94512-00800
9645100600
main96451-00600
33 parts on this diagram · 1 diagram in section
