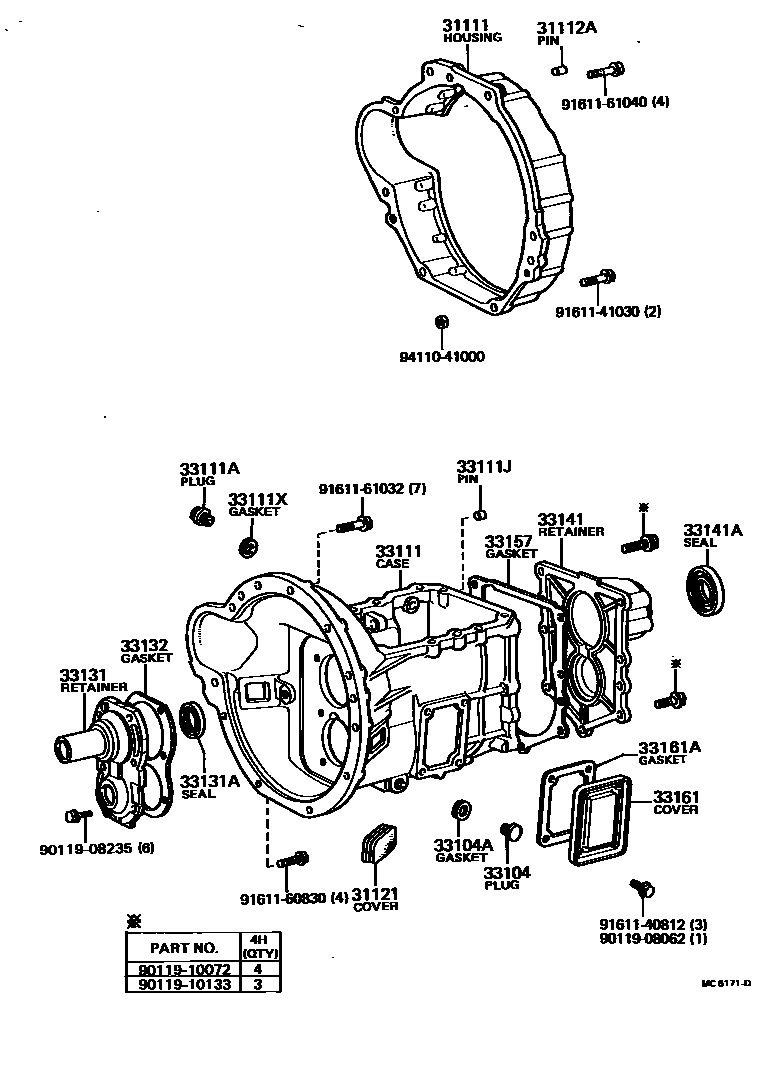

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
31112APIN, DOWEL CLUTCH HOUSING
31121COVER, CLUTCH HOUSING, NO.1
33104PLUG SUB-ASSY, DRAIN(MTM)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33132GASKET, FRONT BEARING RETAINER(MTM)
33141RETAINER, TRANSMISSION BEARING, REAR
sub33141-25021
sub33404-35010
sub33482-29035
sub33482-39035
sub33482-39095
sub33482-39105
sub33482-39115
sub33485-30020
33141ASEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
33157GASKET, TRANSMISSION CASE, NO.2
33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161AGASKET, TRANSMISSION POWER TAKE-OFF COVER(MTM)
9011908062
main90119-08062
9011908235
main90119-08235
9011910072
main90119-10072
9011910133
main90119-10133
9161140812
main91611-40812
9161141030
main91611-41030
9161160830
main91611-60830
9161161032
main91611-61032
9161161040
main91611-61040
9411041000
main94110-41000
27 parts on this diagram · 1 diagram in section
