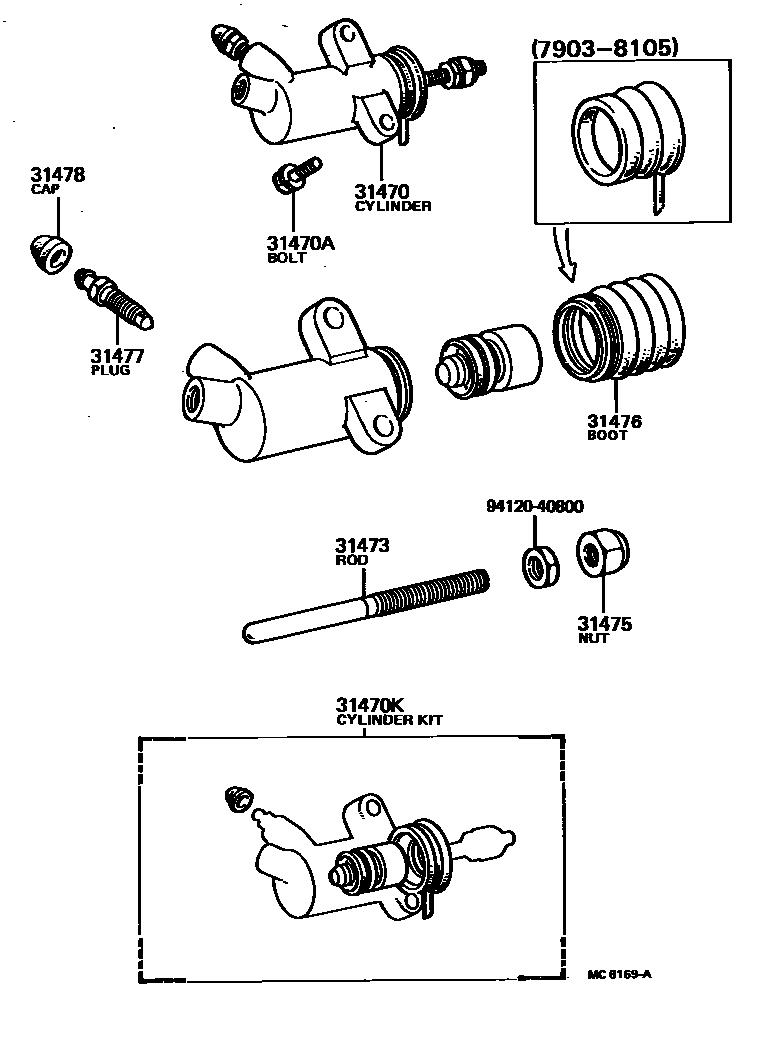

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20101iRK11#197903-198603

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825×2iRK11#197903-198403

sub91611-B0825

main91611-60825×2iRK111198403-198603

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-25010iRK11#198105-198603

main04313-30054iRK110197903-198105

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-25010iRK11#198105-198603

main31473-30021iRK110197903-198105

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30020iRK11#197903-198603

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iRK110197903-198105

main31476-22010iRK11#198105-198603

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRK11#197903-198603

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRK11#197903-198603

9412040800

main94120-40800

9 parts on this diagram · 1 diagram in section
