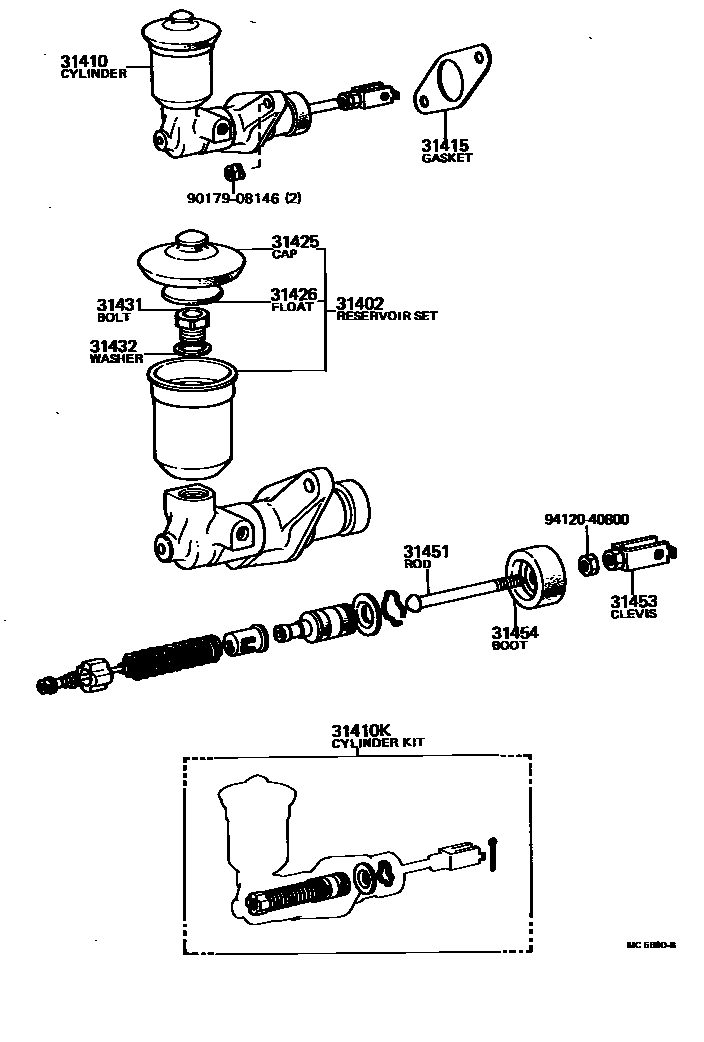

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iRK11#198101-198603

main47202-12010iRK110197903-198101

31410CYLINDER ASSY, CLUTCH MASTER

main31410-35090iRK11#197903-198603

sub31410-35091

31410KCYLINDER KIT, CLUTCH MASTER

main04311-14010iRK11#197903-198209

main04311-14011iRK111198209-198603

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iRK11#197903-198603

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iRK110197905-198101

main47230-12011iRK110197903-197905

main47230-20040iRK11#198101-198603

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iRK11#197903-198603

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iRK11#197903-198603

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iRK11#197903-198603

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12010iRK11#197903-198603

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iRK11#197903-198509

main31453-35010iRK111198509-198603

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iRK11#197903-198603

9017908146

main90179-08146

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
