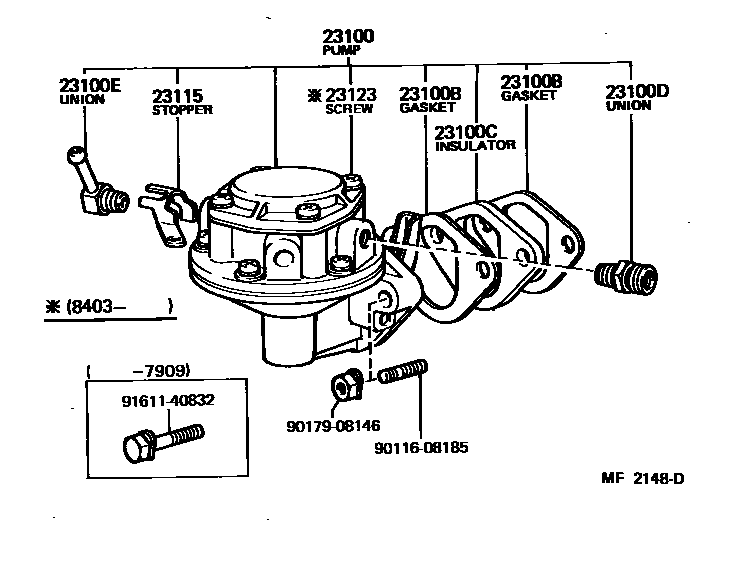

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-49205i5R..RK110197903-198201

main23100-49206i5R..RK111198201-198603

sub23100-49207

23100BGASKET, FUEL PUMP

main90923-05005×2i5R..RK11#197903-198603

sub90923-05019

23100CINSULATOR, FUEL PUMP

main90923-06001i5R..RK11#197903-198603

sub90923-06009

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main90404-13105i5R..RK11#197903-198603

23100EUNION, NIPPLE(FOR FUEL INLET)

main23116-31040i5R..RK11#197903-198603

23115STOPPER, UNION NIPPLE

main23115-44060i5R..RK11#197903-198603

23123SCREW, COVER SET, NO.1

main93319-15014×2i5R..RK111198403-198603

L=14

main93319-15016×8i5R..RK111198403-198603

L=16

9011608185

main90116-08185

9017908146

main90179-08146

9161140832

main91611-40832

10 parts on this diagram · 1 diagram in section
