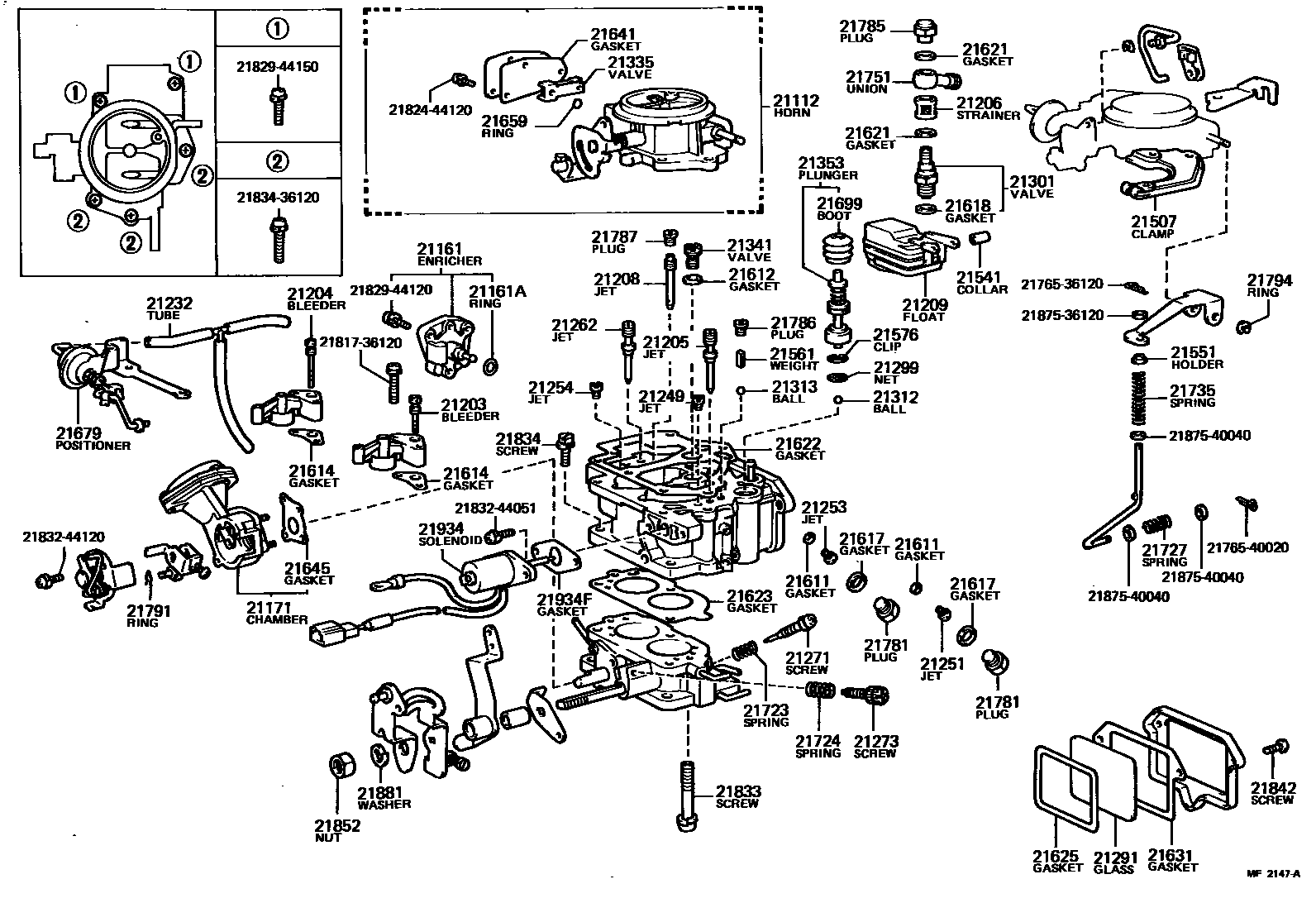

CARBURETOR
21161ENRICHER, COASTING
21161ARING, O(FOR COASTING ENRICHER)
21203BLEEDER SUB-ASSY, 1ST MAIN AIR
21204BLEEDER SUB-ASSY, 2ND MAIN AIR
21205JET SUB-ASSY, SLOW
ID=0.46
21206STRAINER SUB-ASSY
21208JET SUB-ASSY, STEP
ID=0.70
21209FLOAT SUB-ASSY
21232TUBE
21249JET, AIR BLEED, NO.2
NO.1
ID=1.60
NO.2
21251JET, 1ST MAIN
ID=1.00
21253JET, 2ND MAIN
ID=1.55
21254JET, STEP AIR BLEED
ID=1.00
21262JET, MAIN AIR BLEED
ID=0.48
21271SCREW, IDLE ADJUSTING
21291GLASS, LEVEL GAGE
21299NET, PUMP FILTER
21301VALVE SUB-ASSY, NEEDLE
21312BALL, STEEL
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21335VALVE, THERMOSTATIC
21341VALVE, POWER
sub21302-73110
21353PLUNGER, PUMP
21507CLAMP SUB-ASSY, THROTTLE CHOKE WIRE
21541COLLAR, FLOAT PIN
21551HOLDER, BACK SPRING
21561WEIGHT, PUMP DISCHARGE
21576CLIP, PUMP STRAINER
21611GASKET, MAIN JET
21612GASKET, POWER VALVE
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21625GASKET, LEVEL GAGE
21631GASKET, MAIN GUIDE
21641GASKET(FOR THERMOSTATIC VALVE COVER)
21645GASKET, DIAPHRAGM, CAP
21659RING, O(FOR THERMOSTATIC VALVE)
21699BOOT(FOR PUMP PLUNGER)
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21727SPRING, PUMP CONNECTING LINK SUPPORT
21735SPRING, PUMP ARM
21751UNION, NIPPLE
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21785PLUG, CARBURETOR FUEL INLET STRAINER
21786PLUG, PUMP PASSAGE
21787PLUG, PUMP JET
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
21794RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
sub21855-40030
21881WASHER, LOCK(FOR THROTTLE SHAFT)
sub21881-40030
21934SOLENOID, THROTTLE VALVE
21934FGASKET
2176536120PIN(FOR PUMP PLUNGER)
main21765-36120
2176540020PIN(FOR PUMP PLUNGER)
main21765-40020
2181736120
main21817-36120
2182444120SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
main21824-44120
2182944120SCREW, HIGH SPEED VALVE SET
main21829-44120
2182944150SCREW, HIGH SPEED VALVE SET
main21829-44150
2183244051SCREW(FOR CHOKE LEVER ADAPTER SET)
main21832-44051
2183244120SCREW(FOR CHOKE LEVER ADAPTER SET)
main21832-44120
2183436120SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
main21834-36120
2187536120WASHER, THROTTLE OPENER ARM
main21875-36120
2187540040WASHER, THROTTLE OPENER ARM
main21875-40040
75 parts on this diagram · 2 diagrams in section
