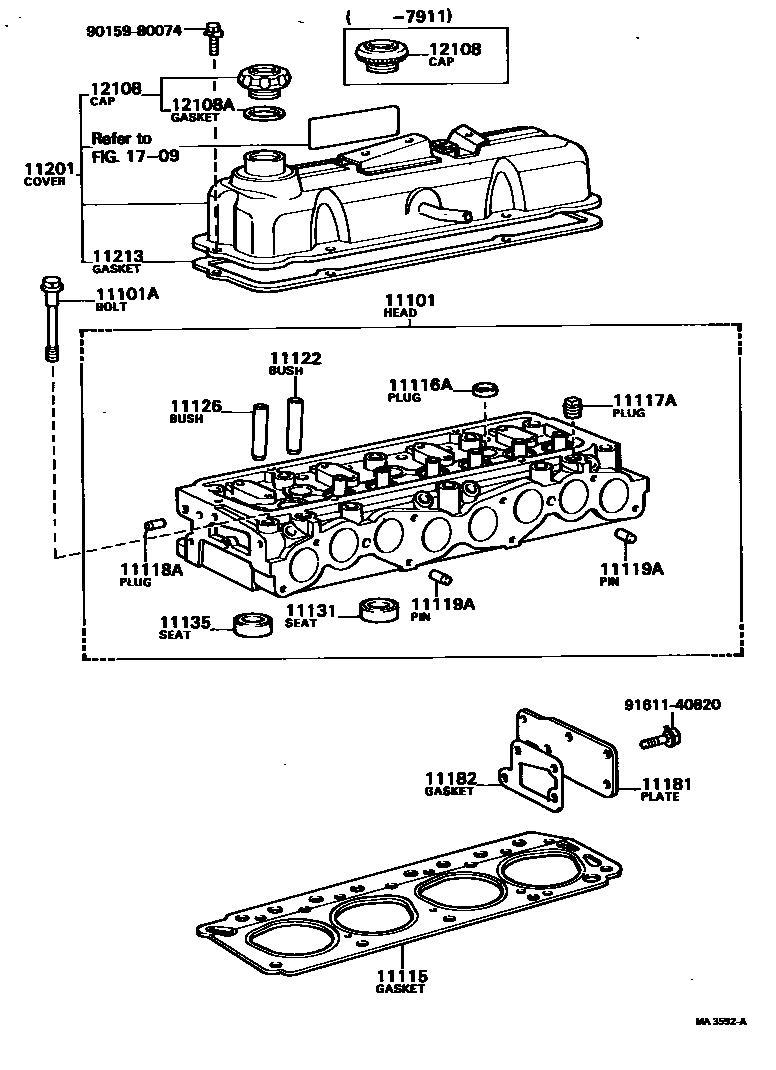

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-49217i5R..RK11#197903-198603

sub11101-44046

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02048i5R..RK11#197903-198603

*12-1.25PX107-24

11115GASKET, CYLINDER HEAD

main11115-44024i5R..RK11#197903-198603

11116APLUG, TIGHT, NO.1

main96411-42500i5R..RK11#197903-198603

OD=25

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90345-54004i5R..RK110197903-198101

main90345-54005i5R..RK11#198101-198603

11118APLUG, STRAIGHT, NO.1

main90334-08004i5R..RK11#197903-198603

L=3.5,OD=6.7

11119APIN, STRAIGHT, NO.1

main90250-08054i5R..RK11#197903-198603

11122BUSH, INTAKE VALVE GUIDE

main11122-44011i5R..RK11#197903-198603

STD

11126BUSH, EXHAUST VALVE GUIDE

main11122-44011i5R..RK11#197903-198603

STD

11131SEAT, INTAKE VALVE

main11131-44020i5R..RK11#197903-198603

STD

main11132-44020i5R..RK11#197903-198603

O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-44024i5R..RK11#197903-198603

STD

main11136-44021i5R..RK11#197903-198603

O/S 0.03

11181PLATE, CYLINDER HEAD, REAR

main11181-44010i5R..RK11#197903-198603

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-44010i5R..RK11#197903-198603

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-49069i5R..RK110197903-197911

sub11201-49175

main11201-49175i5R..RK11#197911-198603

11213GASKET, CYLINDER HEAD COVER

main11213-44010i5R..RK110197903-198011

sub11213-44020

main11213-44020i5R..RK11#198011-198603

12108CAP SUB-ASSY, OIL FILLER

main12180-13010i5R..RK11#197911-198603

main12181-31020i5R..RK110197903-197911

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i5R..RK11#197911-198603

1709

9015980074

main90159-80074

9161140820

main91611-40820

20 parts on this diagram · 1 diagram in section
